G-257

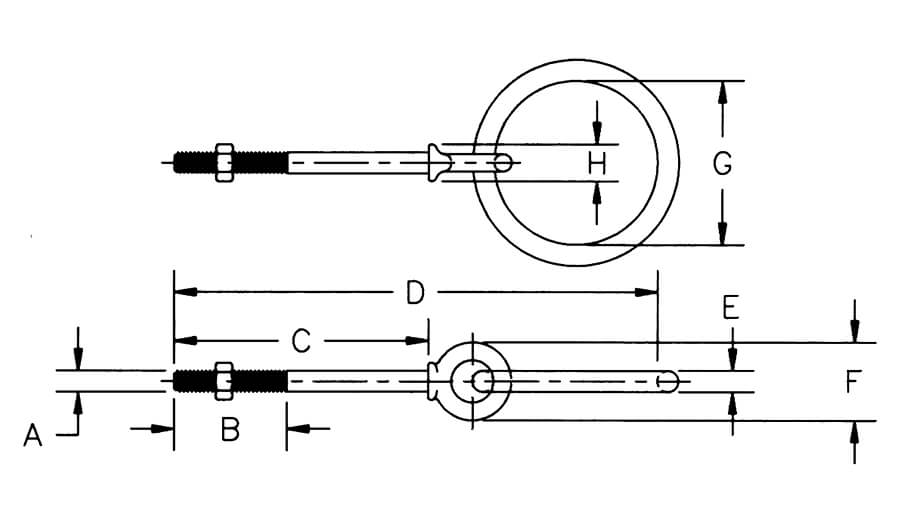

| Ring Bolt Size (in.) | CERTEX Cat. Ref. No. | Crosby G-257 Stock No. Galv. | Working Load Limit* (lbs.) | Weight Per 100 (lbs.) | Dimensions (in.) | |||||||
| A | B | C | D | E | F | G | H | |||||
| 3/8 x 4 1/2 | CX10-0379 | 1046335 | 1200 | 56.60 | 0.38 | 2.50 | 4.50 | 7.66 | 0.38 | 1.38 | 2.00 | 0.66 |
| 1/2 X 6 | CX10 -0380 | 1046371 | 2200 | 100.00 | 0.50 | 3.00 | 6.00 | 10.00 | 0.50 | 1.75 | 2.50 | 0.91 |
* Ultimate load is 5 times the Working Load Limit.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
