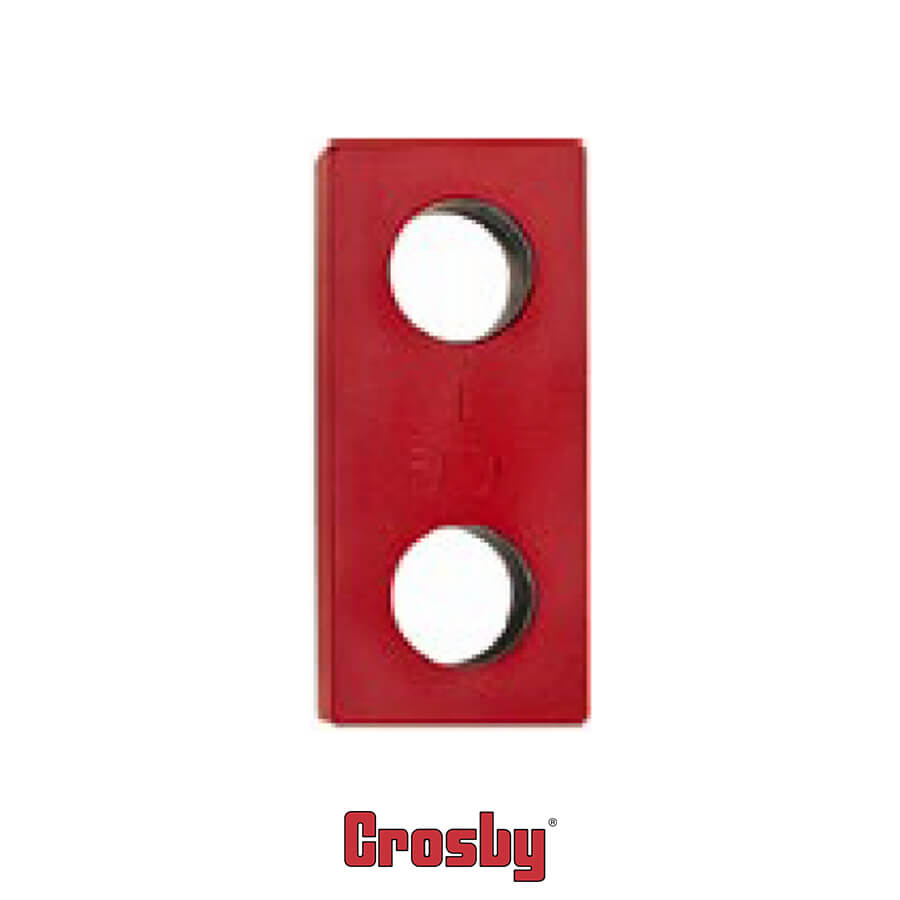

The “Link Plate” is designed to connect two (2) S-252 or S-253 “Sling Saver” Shackles together.
| Link Plate | ||||||||
|---|---|---|---|---|---|---|---|---|

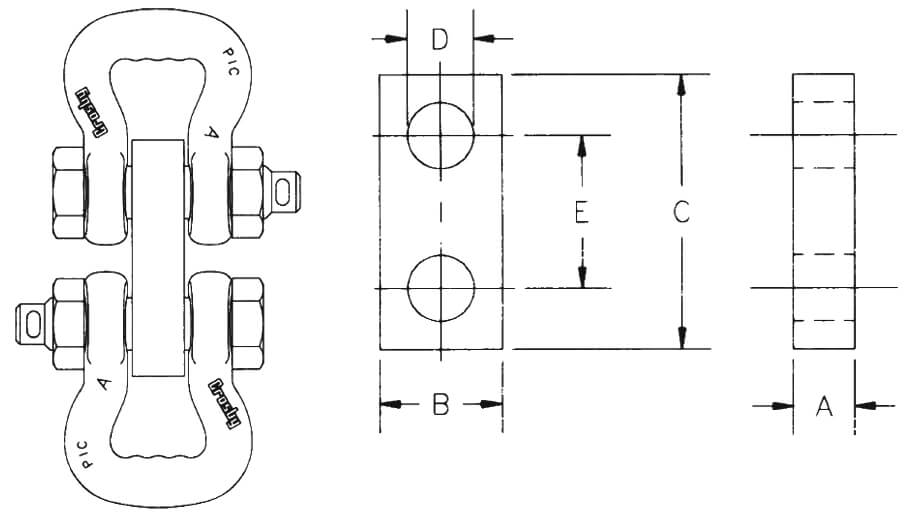

| Shackle Size (in.) | CERTEX Cat. Ref. No. | Crosby Stock No. | Dimensions (in.) | Weight Each (lbs.) | ||||
| A | B | C | D | E | ||||
| 1 | CX07-0339 | 1020785 | 0.75 | 1.50 | 3.38 | 0.81 | 1.88 | 0.83 |
| 1.5 | CX07-0340 | 1020796 | 1.00 | 1.75 | 4.12 | 0.94 | 2.25 | 1.62 |
| 2 | CX07-0341 | 1020807 | 1.25 | 2.00 | 4.75 | 1.06 | 2.62 | 2.71 |
| 3 | CX07-0342 | 1020818 | 1.50 | 2.50 | 6.00 | 1.31 | 2.35 | 5.18 |
| 4 | CX07-0343 | 1020829 | 1.75 | 3.00 | 7.00 | 1.62 | 3.75 | 8.19 |
| 5 | CX07-0344 | 1020840 | 2.00 | 4.00 | 9.25 | 2.12 | 5.00 | 17.19 |
| 6 | CX07-0345 | 1020851 | 3.00 | 5.00 | 10.50 | 2.38 | 5.75 | 37.40 |
