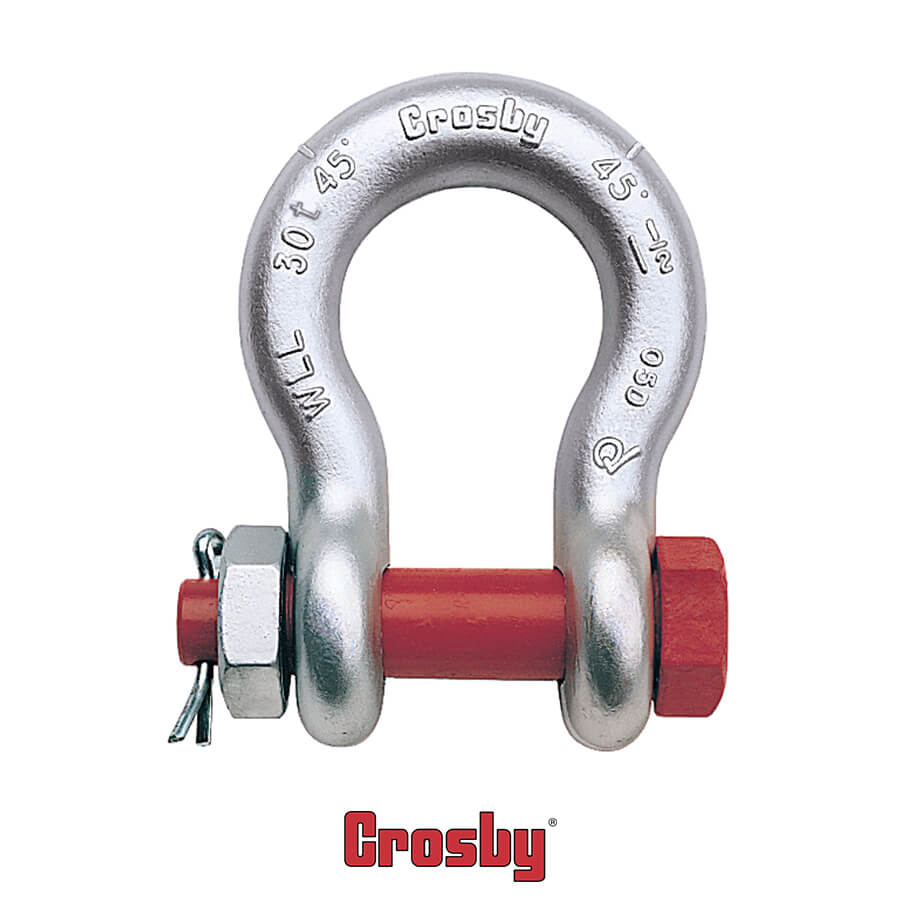

Crosby® Alloy Bolt Type Shackles – G-2140 / S-2140

Crosby® Alloy Bolt Type Shackles - G-2140 / S-2140

G-2140 / S-2140

  • Quenched & Tempered.
  • Alloy bows, alloy bolts.
  • Forged alloy steel 2 through 250 metric tons. Cast alloy steel 400 metric tons.
  • Meets performance requirements of Grade 8 shackles.
  • Working Load Limit is permanently shown on every shackle
  • 30, 40, 55, and 85 metric ton shackle bows are available galvanized (G) or self colored (S) with bolts that are galvanized and painted red.

EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

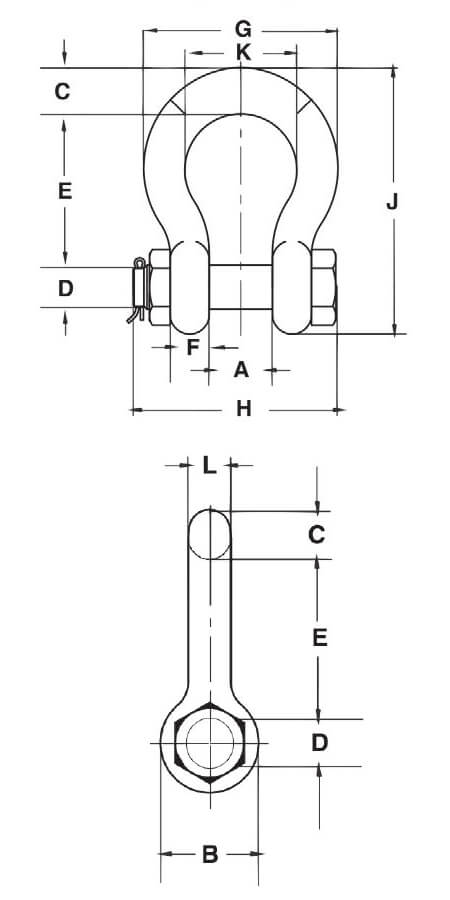

G-2140 / S-2140 Alloy Bolt Type Anchor Shackles

Nominal Size (in) Working Load Limit (t) Stock No. Weight Each (lb) Dimensions (in) Tolerance (+ / – in)
G-2140 S-2140 G-2140 OC A B C D E F G H J K L M N A D E
3/8 2 1021015 – – 0.33 0.66 0.91 0.38 0.44 1.44 0.38 1.78 2.17 2.49 1.03 0.38 – – 0.06 0.01 0.13
7/16 2.67 1021020 – – 0.49 0.75 1.06 0.44 0.50 1.69 0.41 2.03 2.51 2.91 1.16 0.44 – – 0.06 0.01 0.13
1/2 3.33 1021029 – – 0.79 0.81 1.19 0.50 0.64 1.88 0.46 2.31 2.80 3.28 1.31 0.50 – – 0.06 0.02 0.13
5/8 5 1021038 – – 1.68 1.06 1.50 0.69 0.77 2.38 0.58 2.94 3.56 4.19 1.69 0.63 – – 0.06 0.02 0.13
3/4 7 1021047 – – 2.72 1.25 1.81 0.81 0.89 2.81 0.69 3.50 4.15 4.97 2.00 0.75 – – 0.06 0.02 0.25
7/8 9.5 1021056 – – 3.95 1.44 2.09 0.97 1.02 3.31 0.81 4.03 4.82 5.83 2.28 0.88 – – 0.06 0.02 0.25
1 12.5 1021065 – – 5.66 1.69 2.38 1.06 1.15 3.75 0.92 4.69 5.39 6.56 2.69 1.00 – – 0.06 0.02 0.25
1-1/8 15 1021074 – – 8.27 1.81 2.69 1.25 1.25 4.25 1.04 5.16 5.90 7.47 2.91 1.13 – – 0.06 0.02 0.25
1-1/4 18 1021083 – – 11.7 2.03 3.00 1.38 1.40 4.69 1.16 5.75 6.69 8.25 3.25 1.29 – – 0.06 0.03 0.25
1-3/8 21 1021092 – – 15.8 2.25 3.31 1.50 1.53 5.25 1.28 6.38 7.21 9.16 3.63 1.42 – – 0.13 0.03 0.25
1-1/2 30 1021110 1021129 1262407 18.8 2.38 3.62 1.62 1.63 5.75 1.39 6.88 7.73 10.00 3.88 1.53 – – 0.13 0.03 0.25
1-3/4 40 1021138 1021147 1262416 33.8 2.88 4.19 2.25 2.00 7.00 1.75 8.81 9.33 12.34 5.00 1.84 – – 0.13 0.03 0.25
2 55 1021156 1021165 1262425 49.9 3.25 4.81 2.40 2.25 7.75 2.00 10.16 10.41 13.68 5.75 2.08 – – 0.13 0.03 0.25
2-1/2 85 1021174 1021183 1262434 103 4.12 5.81 3.12 2.75 10.50 2.62 12.75 13.58 17.90 7.25 2.71 – – 0.25 0.03 0.25
3 120 1021192 – 1262443 162 5.00 6.50 3.63 3.25 13.00 3.00 14.62 15.13 21.50 7.88 3.12 – – 0.25 0.04 0.25
3-1/2 † 150 1021218 – 1262452 268 5.25 8.00 4.38 3.75 14.63 3.75 17.02 20.33 24.88 9.00 3.62 4.00 1.80 0.25 0.01 0.25
4 † 175 1021236 – 1262461 318 5.50 9.00 4.56 4.25 14.50 4.00 18.00 21.20 25.68 10.00 4.00 4.00 1.80 0.25 0.01 0.25
4-3/4 † 200 1021234 – – 461 7.25 10.50 5.00 4.75 15.19 4.58 20.84 24.04 27.81 11.00 4.75 4.00 1.80 0.25 0.01 0.25
5 † 250 1021243 – – 608 8.50 12.00 5.62 5.00 18.50 4.85 23.62 24.87 32.61 13.00 5.00 4.00 1.80 0.25 0.01 0.25
6 † 300 1021252 – – 797 8.38 13.00 6.06 6.00 18.72 4.89 24.76 26.22 34.28 13.00 5.88 4.00 1.80 0.25 0.01 0.25
7* † 400 1021478 – – 1289 8.25 14.00 7.25 7.00 22.50 6.50 26.00 29.66 40.25 13.00 6.00 4.00 1.80 0.25 0.01 0.25

4.5:1 Design Factor for sizes 2 through 21 metric tons, 5.4:1 Design Factor for sizes 30 through 175 metric tons. 4:1 Design Factor for 200 through 400 metric tons. Maximum Proof Load is 2 times the Working Load Limit. *Cast alloy steel.†Furnished with round head bolts with a handle. For Working Load Limit reduction due to side loading applications, see Warnings & Applications.



G-2140 / S-2140

  • Size 3/8 inch is mechanically galvanized.
  • 120, 150, 175 metric ton shackle bows are hot-dip galvanized; bolts are Dimetcoted and painted red.
  • 200, 250, 300, 400 metric ton shackle bows are Dimetcoted; bolts are Dimetcoted and painted red
  • Sizes 1-1/2 and larger are RFID equipped.
  • Approved for use at -40° C (-40° F) to 204° C (400° F).
  • Shackles are Quenched & Tempered and can meet DNV impact requirements of 42 Joules (31 ft-lb) at -20° C (-4° F).
  • Crosby COLD TUFF® shackles that meet the additional requirements of DNV rules for certification of lifting applications – loose gear are available.
  • Shackles 200 metric tons and larger are provided as follows:
    • Serialized bolt and bow
    • Material certification (chemical)
    • Magnetic particle inspected.
    • Certification must be requested at time of order.
  • Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. 2140 shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.
  • Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and 2016 ABS Guide for Certification of Lifting Appliances. Certificates are available when requested at time of order and may include additional charges.
  • G-2140 meets the performance requirements of Federal Specification RR-C-271G, Type IVA, Grade B, Class 3, except for those provisions required of the contractor. For additional information, see Warnings & Applications.
  • Look for the Red Pin®… the mark of genuine Crosby quality
