UNC THREADS
Also Available in Metric
- UNC thread: from UNC 3/8″ to UNC 1″1/2 as standard; for loads ranging from 1,200 lbs to 25,000 lbs
- Safety factor 5
UNC THREADS
Also Available in Metric

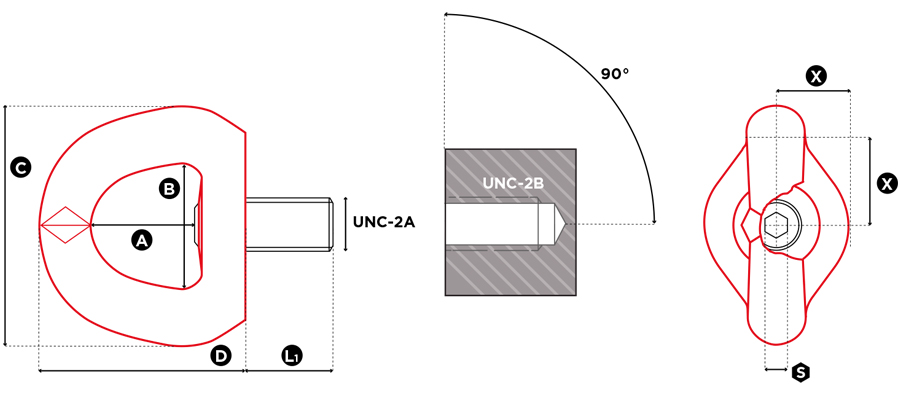

| Model Number | Diameter | SF 5:1 WLL (lbs) | SF 4:1 WLL (lbs) | Standard L1 (mm) | Torque (ft-lb) | Dimensions (mm) | Weight | ||||||
| S | A | B | C | D | (kg) | (lbs) | |||||||
| SEB U 038 UP | UNC 3/8″-16 | 1,200 | 1,500 | 17 | 8 | 20 | 6 | 30 | 34 | 60 | 57 | 0,24 | 0.53 |
| SEB U 050 UP | UNC 1/2″-13 | 1,800 | 1,950 | 21 | 12 | 20 | 6 | 30 | 34 | 60 | 57 | 0,24 | 0.53 |
| SEB U 058 UP | UNC 5/8″-11 | 3,200 | 4,000 | 27 | 40 | 35 | 8 | 38 | 45 | 88 | 80 | 0,8 | 1.76 |
| SEB U 075 UP | UNC 3/4″-10 | 4,750 | 5,900 | 30 | 80 | 35 | 8 | 38 | 45 | 88 | 80 | 0,8 | 1.76 |
| SEB U 100 UP | UNC 1″-8 | 7,500 | 9,300 | 36 | 125 | 50 | 14 | 58 | 70 | 115 | 106 | 2,6 | 5.73 |
| SEB U 125 UP | UNC 1″ 1/4-7 | 12,200 | 13,800 | 45 | 200 | 70 | 14 | 58 | 70 | 115 | 106 | 2,8 | 6.17 |
| SEB U 150 UP | UNC 1″ 1/2-6 | 20,000 | 25,000 | 62 | 240 | 70 | 14 | 83 | 94 | 168 | 155 | 7 | 15.43 |
| SEB U 200 UP | UNC 2″-4,5 | 33,000 | 35,200 | 70 | 450 | 70 | 19 | 83 | 94 | 168 | 155 | 7,3 | 16.09 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
