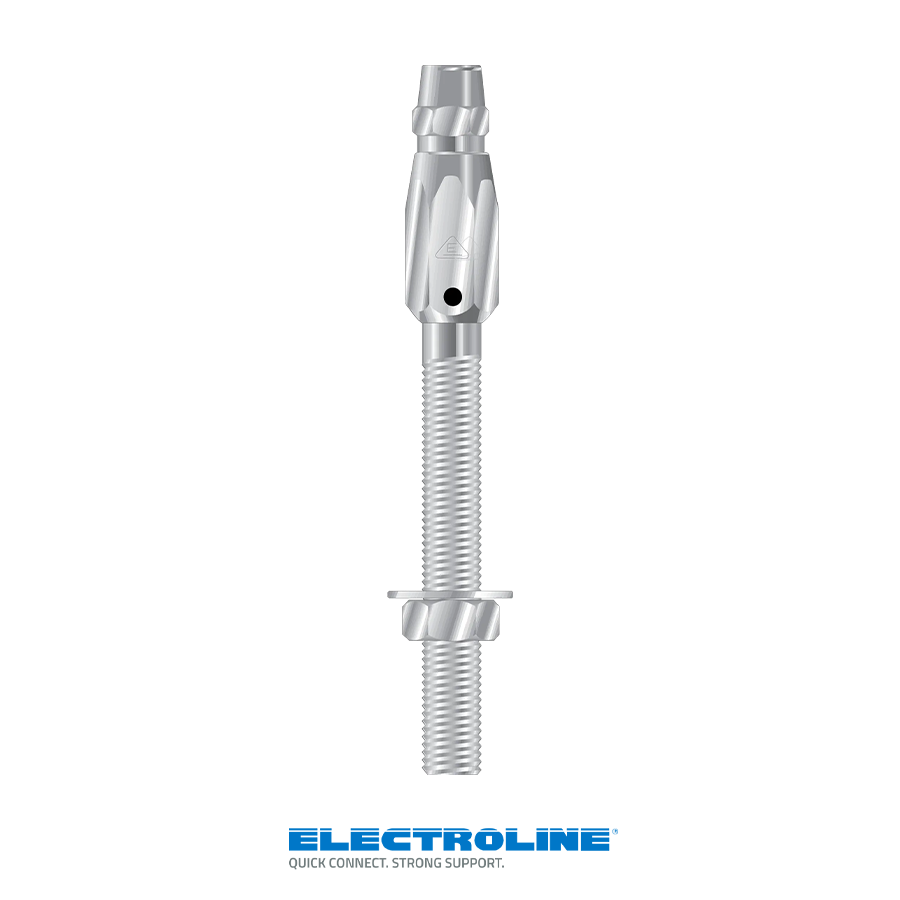

Electroline® Coarse Thread Stud Socket Fitting

Electroline® Coarse Thread Stud Socket Fitting

Electroline’s stud socket fittings are used for a variety of applications. The swageless rope termination and threaded rod allow a rope to be quickly attached (without special tools or processes) and tensioned using the included washer and nut. Longer and wider sizes are also available.

  • Available for rope sizes from 1/8 to 1 inch in diameter.
  • Fitting strength exceeds the rated breaking strength of most ropes.
  • Material options include self-colored steel; zinc-plated or galvanized steel for corrosion resistance; or stainless steel for a more attractive appearance.

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Rope Size (In.) Part Number Thread Dimensions EIPS Breaking Strength (lbs.)
Galvanized Steel Self-Colored Steel Stainless Steel Zinc Plated Steel A C D
1/8 IGD-312-N IGS-312 IGD-312-V 1/4-20 2-1/2 4-1/8 5/8 1,700
3/16 IGD-318-N IGS-318 IGD-318-V 3/8-16 4-1/8 6-5/16 3/4 3,700
1/4 GD-325-X GD-325-N IGS-325 GD-325-V 1/2-13 5-1/4 8 1 6,800
5/16 GD-331-X GD-331-N IGS-331 GD-331-V 1/2-13 5-1/4 8 1 10,540
3/8 GD-337-X GD-337-N IGS-337 GD-337-V 5/8-11 4-1/2 8-1/4 1-1/8 15,100
7/16 GD-343-X GD-343-N IGS-343 GD-343-V 3/4-10 6-3/8 10-15/16 1-1/2 20,400
1/2 GD-350-X GD-350-N IGS-350 GD-350-V 3/4-10 6-3/8 10-15/16 1-1/2 26,600
9/16 GD-356-X GD-356-N 7/8-9 7-1/2 13-7/8 1-3/4 33,600
5/8 GD-362-X GD-362-N 7/8-9 7-1/2 13-7/8 1-3/4 41,200
3/4 GD-375-X GD-375-N 1-1/8-7 8-5/8 16-1/8 2-3/16 58,800
7/8 GD-387-X GD-387-N 1-1/4-7 9 17-3/16 2-5/8 79,800
1 GD-399-X GD-399-N 1-1/2-6 12-1/8 22-5/16 3 103,400

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
