Electroline’s forged wire rope clevis (fork/jaw) fitting includes a threaded pin and nut. It features a swageless rope termination that can be quickly installed in the field without special tools or processes.

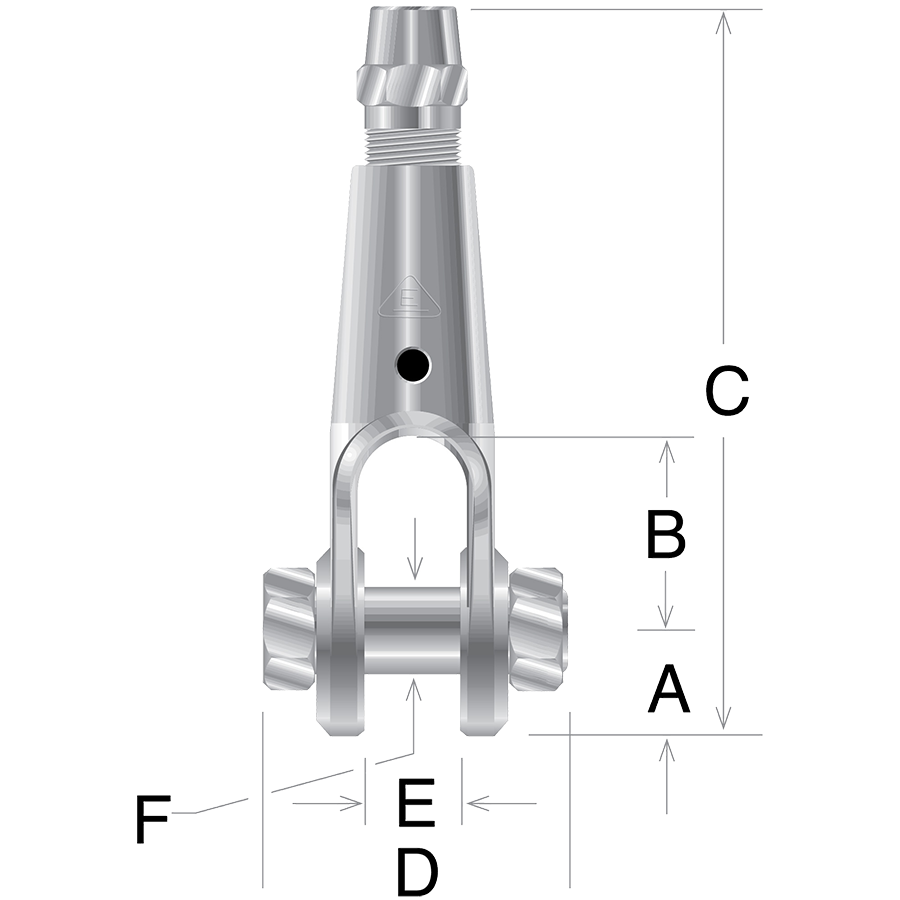

| Rope Size (In.) | Part Number | Dimensions | EIPS Breaking Strength (lbs.) | Note | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Galvanized Steel | Self-Colored Steel | Zinc Plated Steel | A | B | C | D | E | F | |||
| 1/4 | IGD-125-N | IGD-125-V | 9/16 | 1-3/8 | 4-1/4 | 1-23/32 | 17/32 | 1/2 | 6,800 | Machined Part | |
| 5/16 | IGD-131-N | IGD-131-V | 13/16 | 1-1/2 | 5-5/16 | 2-5/32 | 11/16 | 5/8 | 10,540 | Machined Part | |
| 3/8 | IGD-137-N | IGD-137-V | 13/16 | 1-1/2 | 5-5/16 | 2-5/32 | 11/16 | 5/8 | 15,100 | Machined Part | |
| 7/16 | GD-143-X | GD-143-N | 1-1/16 | 2 | 7-3/16 | 2-31/32 | 1 | 7/8 | 20,400 | ||
| 1/2 | GD-150-X | GD-150-N | 1-1/16 | 2 | 7-3/16 | 2-31/32 | 1 | 7/8 | 26,600 | ||
| 9/16 | GD-156-X | GD-156-N | 1-1/4 | 2-1/2 | 8-5/8 | 3-7/16 | 1-1/4 | 1 | 33,600 | ||
| 5/8 | GD-162-X | GD-162-N | 1-1/4 | 2-1/2 | 8-5/8 | 3-7/16 | 1-1/4 | 1 | 41,200 | ||
| 3/4 | GD-175-X | GD-175-N | 1-7/16 | 3 | 10-3/16 | 4 | 1-1/2 | 1-1/8 | 58,800 | ||
| 7/8 | GD-187-X | GD-187-N | 1-5/8 | 2-5/8 | 11 | 4-3/8 | 1-17/32 | 1-1/4 | 79,600 | ||
| 1 | GD-199-X | GD-199-N | 1-15/16 | 2-7/8 | 12-11/16 | 4-7/8 | 1-7/8 | 1-1/2 | 103,400 | ||
| 1-1/8 | GD-1112-X | GD-1112-N | 2-3/16 | 3-5/16 | 17 | 5-5/8 | 1-7/8 | 1-13/16 | 130,000 | ||
| 1-1/4 | GD-1125-X | GD-1125-N | 2-3/16 | 3-5/16 | 17 | 5-5/8 | 1-7/8 | 1-13/16 | 159,800 | ||
