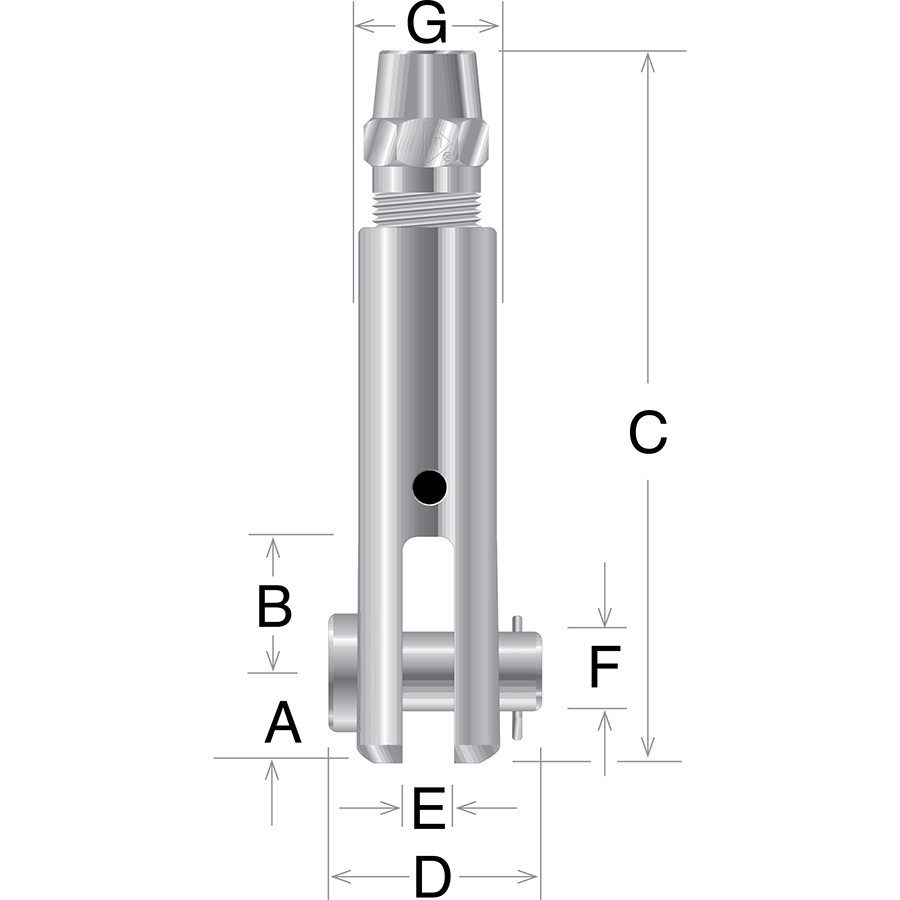

Electroline’s machined clevis fitting (fork/jaw) includes a pin and cotter pin and features a swageless rope termination that allows it to be quickly installed in the field without special tools or processes.
| Rope Size (In.) | Part Number | Dimensions | EIPS Breaking Strength (lbs.) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Self-Colored Steel | Stainless Steel | Zinc Plated Steel | A | B | C | D | E | F | G | ||
| 1/16 | ID-106-N | IS-106 | ID-106-V | 17/64 | 3/8 | 2-1/16 | 45/64 | 3/16 | 3/16 | 1/2 | 480 |
| 3/32 | ID-109-N | IS-109 | ID-109-V | 5/16 | 1/2 | 2-7/16 | 57/64 | 1/4 | 1/4 | 5/8 | 920 |
| 1/8 | ID-112-N | IS-112 | ID-112-V | 5/16 | 1/2 | 2-7/16 | 57/64 | 1/4 | 1/4 | 5/8 | 1,700 |
| 5/32 | ID-115-N | IS-115 | ID-115-V | 3/8 | 5/8 | 2-31/32 | 1-1/8 | 5/16 | 5/16 | 3/4 | 2,400 |
| 3/16 | ID-118-N | IS-118 | ID-118-V | 3/8 | 5/8 | 2-31/32 | 1-1/8 | 5/16 | 5/16 | 3/4 | 3,700 |
| 7/32 | ID-121-N | IS-121 | ID-121-V | 15/32 | 3/4 | 3-23/32 | 1-11/32 | 3/8 | 3/8 | 15/16 | 4,800 |
| 1/4 | ID-125-N | IS-125 | ID-125-V | 15/32 | 3/4 | 3-23/32 | 1-11/32 | 3/8 | 3/8 | 15/16 | 6,800 |
| 9/32 | ID-128-N | IS-128 | ID-128-V | 17/32 | 7/8 | 4-1/4 | 1-1/2 | 3/8 | 7/16 | 1-1/16 | 8,000 |
| 5/16 | ID-131-N | IS-131 | ID-131-V | 17/32 | 7/8 | 4-1/4 | 1-1/2 | 3/8 | 7/16 | 1-1/16 | 10,540 |
| 3/8 | ID-137-N | IS-137 | ID-137-V | 5/8 | 1 | 4-27/32 | 1-45/64 | 7/16 | 1/2 | 1-13/16 | 15,100 |
| 7/16 | ID-143-N | IS-143 | ID-143-V | 51/64 | 1-3/8 | 6-11/32 | 2-5/32 | 1/2 | 11/16 | 1-9/16 | 20,400 |
| 1/2 | ID-150-N | IS-150 | ID-150-V | 51/64 | 1-3/8 | 6-11/32 | 2-5/32 | 1/2 | 11/16 | 1-9/16 | 26,600 |
| 9/16 | ID-156-N | IS-156 | ID-156-V | 1-3/64 | 1-17/32 | 7-19/32 | 2-5/8 | 11/16 | 15/16 | 2 | 33,600 |
| 5/8 | ID-162-N | IS-162 | ID-162-V | 1-3/64 | 1-17/32 | 7-19/32 | 2-5/8 | 11/16 | 15/16 | 2 | 41,200 |
| 3/4 | ID-175-N | IS-175 | ID-175-V | 1-15/64 | 1-27/32 | 8-29/32 | 3 | 3/4 | 1-1/8 | 2-5/16 | 58,800 |
| 7/8 | ID-187-N | IS-187 | ID-187-V | 1-7/16 | 1-7/8 | 10-3/16 | 3-5/16 | 13/16 | 1-1/4 | 2-5/8 | 79,600 |
| 1 | ID-199-N | IS-199 | ID-199-V | 1-3/4 | 2-1/4 | 12-3/16 | 4-11/64 | 15/16 | 1-1/2 | 3-1/2 | 103,400 |
| 1-1/8 | ID-1112-N | IS-1112 | ID-1112-V | 2-1/8 | 2-3/4 | 14-5/8 | 5-11/64 | 1-1/8 | 1-5/8 | 3-3/4 | 130,000 |
| 1-1/4 | ID-1125-N | IS-1125 | ID-1125-V | 2-1/4 | 3 | 16-7/8 | 4-7/8 | 1-1/4 | 1-3/4 | 4 | 159,800 |
| 1-3/8 | ID-1137-N | IS-1137 | ID-1137-V | 2-3/4 | 3-1/2 | 21-3/8 | 5-5/32 | 1-1/2 | 2 | 4-1/4 | 192,000 |
| 1-1/2 | ID-1150-N | IS-1150 | ID-1150-V | 2-3/4 | 3-1/2 | 21-3/8 | 5-5/16 | 1-3/4 | 2 | 4-1/2 | 228,000 |
