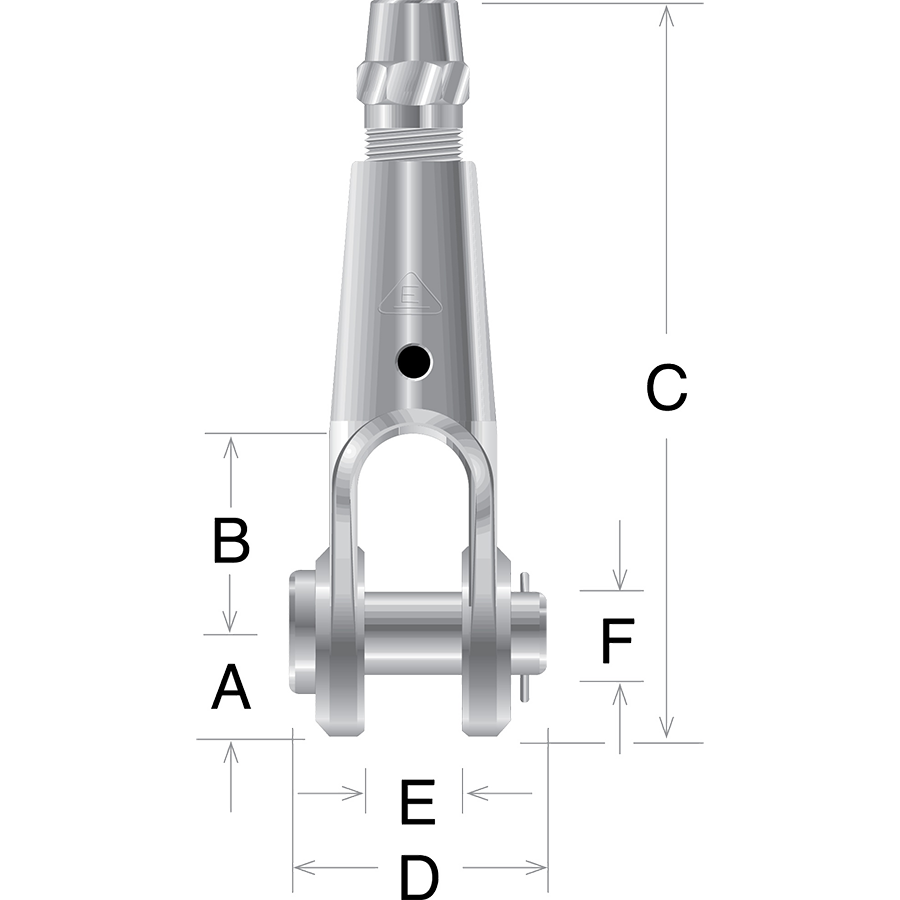

Electroline’s industrial series clevis (fork/jaw) socket fitting includes a pin and cotter pin. It features a swageless rope termination that can be quickly installed in the field without special tools or processes.
| Rope Size (In.) | Part Number | Dimensions | EIPS Breaking Strength (lbs.) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Galvanized Steel | Self-Colored Steel | A | B | C | D | E | F | ||
| 7/16 | PD-143-X | PD-143-N | 1-1/16 | 2 | 7-3/16 | 2-19/32 | 1 | 1 | 20,400 |
| 1/2 | PD-150-X | PD-150-N | 1-1/16 | 2 | 7-3/16 | 2-19/32 | 1 | 1 | 26,600 |
| 9/16 | PD-156-X | PD-156-N | 1-1/4 | 2-1/2 | 8-5/8 | 3-11/64 | 1-1/4 | 1-3/16 | 33,600 |
| 5/8 | PD-162-X | PD-162-N | 1-1/4 | 2-1/2 | 8-5/8 | 3-11/64 | 1-1/4 | 1-3/16 | 41,200 |
| 3/4 | PD-175-X | PD-175-N | 1-7/16 | 3 | 10-3/16 | 3-11/16 | 1-1/2 | 1-3/8 | 58,800 |
| 7/8 | PD-187-X | PD-187-N | 1-15/16 | 2-7/8 | 12-11/16 | 4-7/8 | 1-7/8 | 1-1/2 | 79,600 |
| 1 | PD-199-X | PD-199-N | 2-3/16 | 3-5/16 | 17 | 5-5/8 | 1-7/8 | 1-7/8 | 103,400 |
