Captain 5FT40

Captain 5FT40

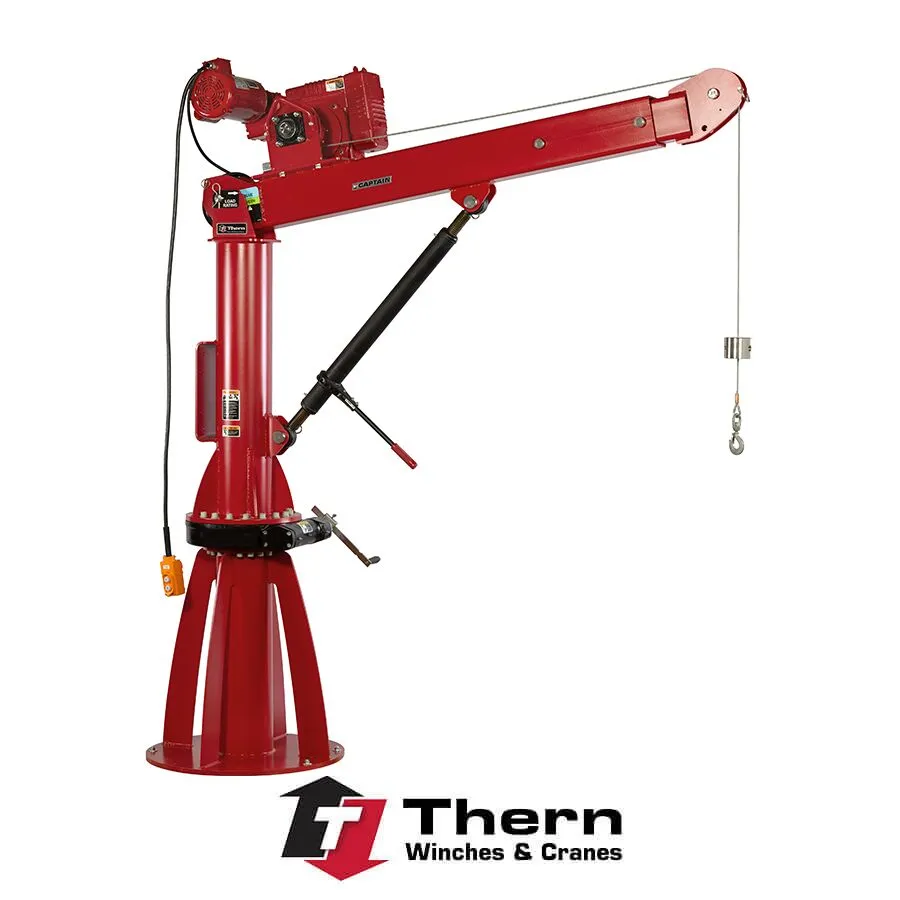

Captain 4000 — Model 5FT40-E2 crane.

Designed for permanent installation and smooth rotation, the Captain 4000 stationary davit crane can handle heavy loads up to 5,500 pounds (2,500 kg) and features an extended reach of 10 feet, as well as a maximum hook height of 12 feet. This crane is perfect for wind energy, marine, construction, water/wastewater, and oil and gas applications.

Quick Facts

  • Massive Lifting Power up to 5,500 pounds (2,500 kg)
  • Manual, Drill-Drive, Electric, Hydraulic, or Pneumatic Operation
  • New Integral Slewing Drive Allows 360º of Smooth and Easy Rotation
  • Available in Three Finishes
  • Optional Hydraulic Boom Adjustment Package
  • Industry-Leading Warranty

Series Models

  • 5FT20
  • 5FT25
  • 5FT40
  • 5FT40H

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

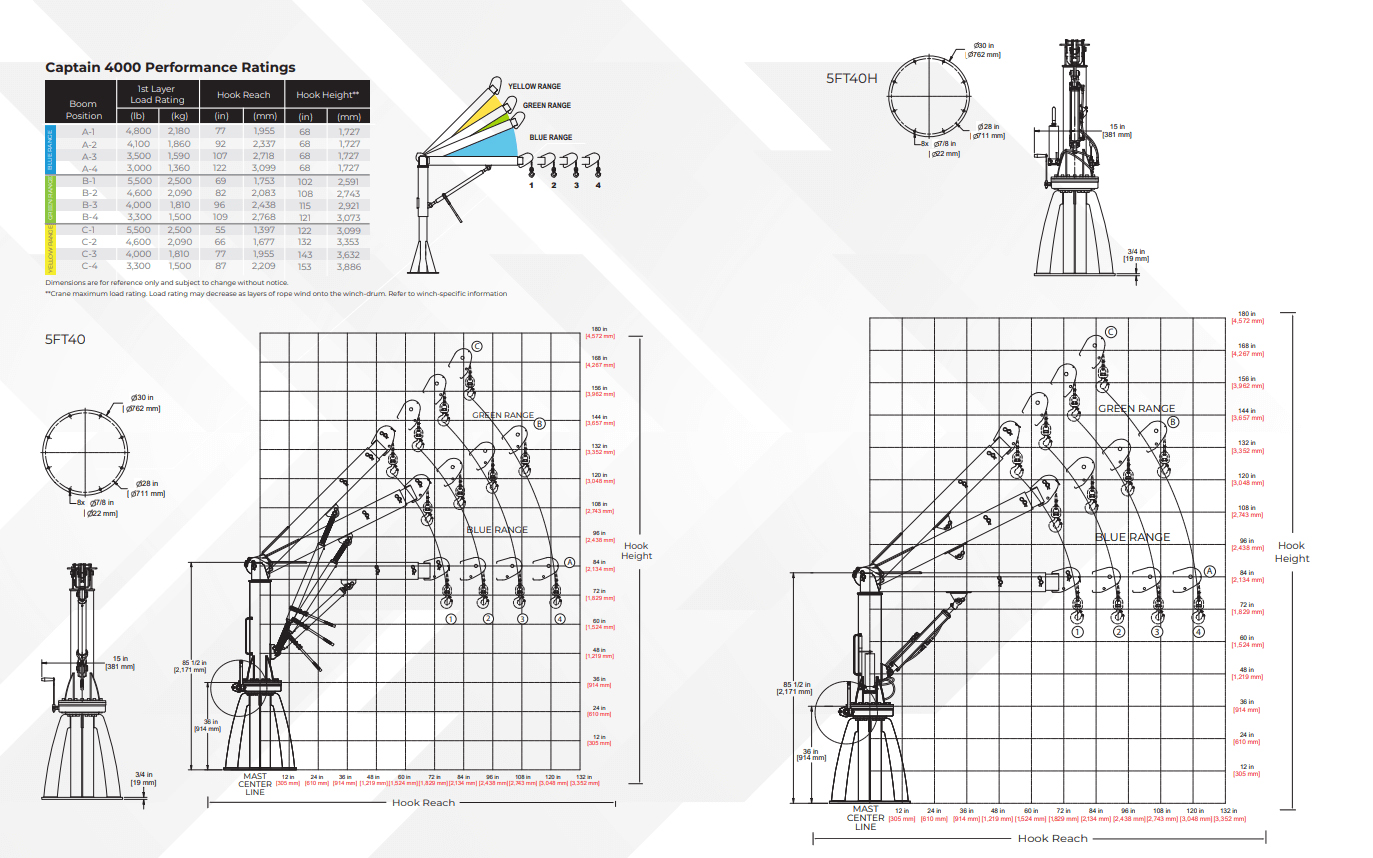

Captain 4000 SFT40 Series
Lift Below Floor1 Level

Lift Below
Floor2		 Wire Rope
Diameter		 Wire Rope
Length		 Winch Configurations
Maximum Winch Rating
Minimum (C4) Maximum (Cl) M1 M2 E2 E3
(ft) (m) (ft) (m) (in) (mm) (ft) (m) (lbs) (kg) (lbs) (kg) (lbs) (kg) (lbs) (kg)
-4 -1 2 0 3/8″ 10 28 8 4,100 1,860 4,100 1,860 4,100 1,860 4,100 1,860
4 1 10 3 3/8″ 10 36 10 4,100 1,860 4,100 1,860 3,600 1,630 4,100 1,860
13 3 19 5 3/8″ 10 45 13 3,700 1,680 4,100 1,860 3,600 1,630 4,100 1,860
28 8 34 10 3/8″ 10 60 18 3,700 1,680 3,700 1,680 3,200 1,450 4,100 1,860
43 13 49 14 3/8″ 10 75 22 3,400 1,540 3,400 1,540 3,200 1,450 4,100 1,860
58 17 64 19 3/8″ 10 90 27 — — 3,400 1,540 2,900 1,310 4,100 1,860
88 26 94 28 3/8″ 10 120 36 — — — — 2,700 1,220 4,100 1,860
118 35 124 37 3/8″ 10 150 45 — — — — — — 4,100 1,860
168 51 174 53 3/8″ 10 200 60 — — — — — — 4,100 1,860
-4 -1 2 0 7/16″ 11 28 8 3,900 1,770 3,900 1,770 3,300 1,500 5,500 2,500
4 1 10 3 7/16″ 11 36 10 3,400 1,540 3,900 1,770 3,300 1,500 5,500 2,500
13 3 19 5 7/16″ 11 45 13 3,400 1,540 3,400 1,540 3,300 1,500 5,500 2,500
28 8 34 10 7/16″ 11 60 18 3,000 1,360 3,000 1,360 2,900 1,315 5,500 2,500
43 13 49 14 7/16″ 11 75 22 — — 3,000 1,360 2,600 1,180 5,500 2,270
58 17 64 19 7/16″ 11 90 27 — — — — 2,600 1,180 5,500 2,270
88 26 94 28 7/16″ 11 120 36 — — — — — — 4,600 2,090
118 35 124 37 7/16″ 11 150 45 — — — — — — 4,200 1,900
168 51 174 53 7/16″ 11 200 60 — — — — — — — —
-4 -1 2 0 1/2″ 13 28 8 3,700 1,680 3,700 1,680 3,200 1,450 5,500 2,500
4 1 10 3 1/2″ 13 36 10 3,200 1,450 3,700 1,680 3,200 1,450 5,500 2,500
13 3 19 5 1/2″ 13 45 13 3,200 1,450 3,200 1,450 2,800 1,270 5,500 2,500
28 8 34 10 1/2″ 13 60 18 — — — — 2,800 1,270 5,500 2,500
43 13 49 14 1/2″ 13 75 22 — — — — — — 5,500 2,270
58 17 64 19 1/2″ 13 90 27 — — — — — — 5,500 2,270
88 26 94 28 1/2″ 13 120 36 — — — — — — 4,500 2,040
118 35 124 37 1/2″ 13 150 45 — — — — — — — —
168 51 174 53 1/2″ 13 200 60 — — — — — — — —

1Performance characteristics are for standard products. Non-standard products may vary fr04’T’I the original design.
Contact Them, Inc. for this information.
2Lift below floor level varies depending on boom position and base configuration. For longer lifts. please contact factory.
•Not avaitable for use with the SFT40H crane.

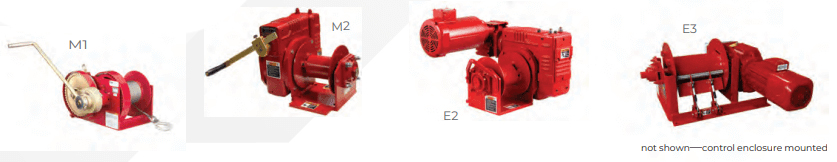

Winch Configurations

Welded Steel Construction
Crane boom, mast and base fabricated from heavy duty steel that limits deflection and meets ASTM standards.

Manual, Drill-Drive, or Power Operation
Choose from manual, drill-drive, or powered winch (electric, pneumatic, or hydraulic motors) operation to accommodate a variety of light or heavy loads and speeds. DC motors and various voltage AC motors available.

360° Rotation and Flexible Operation
Standard with manually operated slewing drive enhances smooth, 360-degree mast rotation under extreme loads for precise load placement. Standard screw jack for easy boom angle adjustment.

Corrosion Resistant Finish
Corrosion-resistant finishes and stainless-steel fasteners resist the elements and harsh environments for long service life. Standard red-enamel finish, optional galvanized, or epoxy (gray, safety-yellow, or custom-color) finishes are available.

Two-Year Warranty
Industry-leading, two-year limited warranty on all our products.



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
