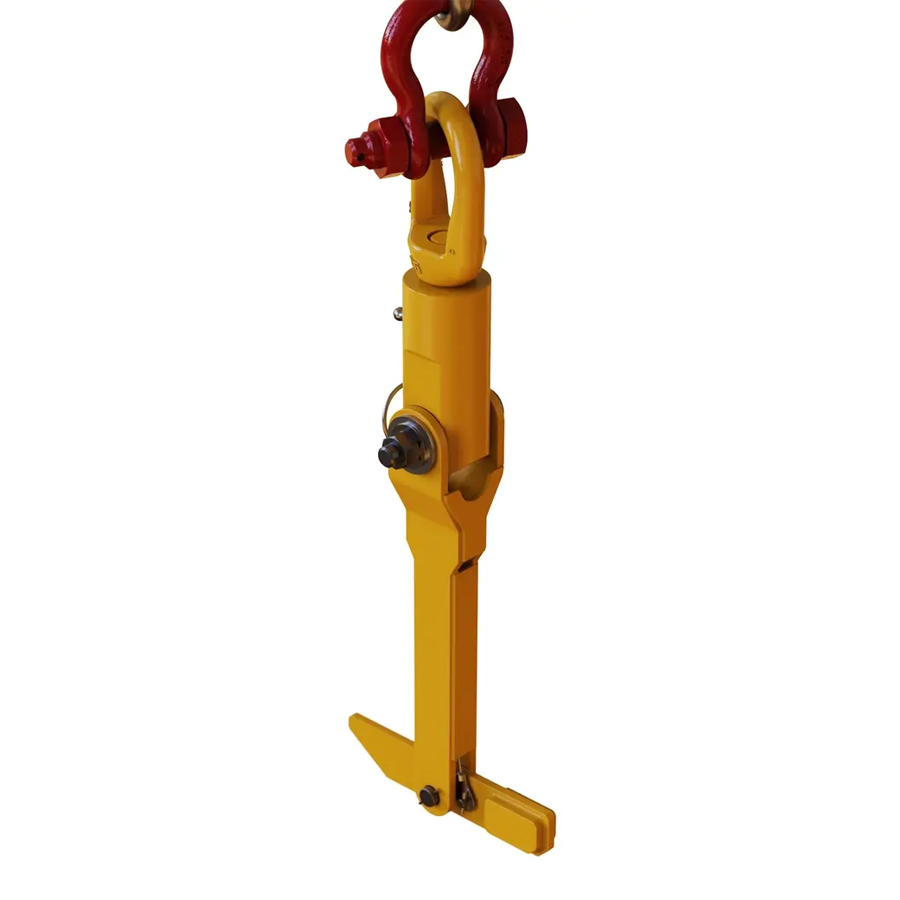

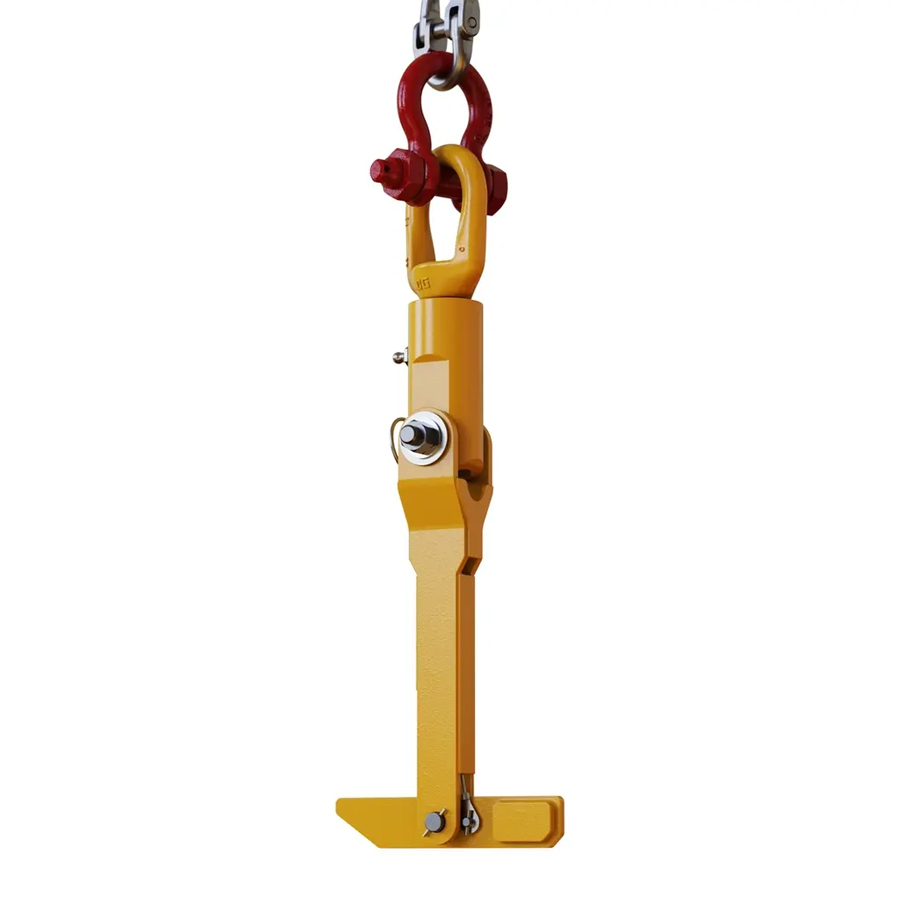

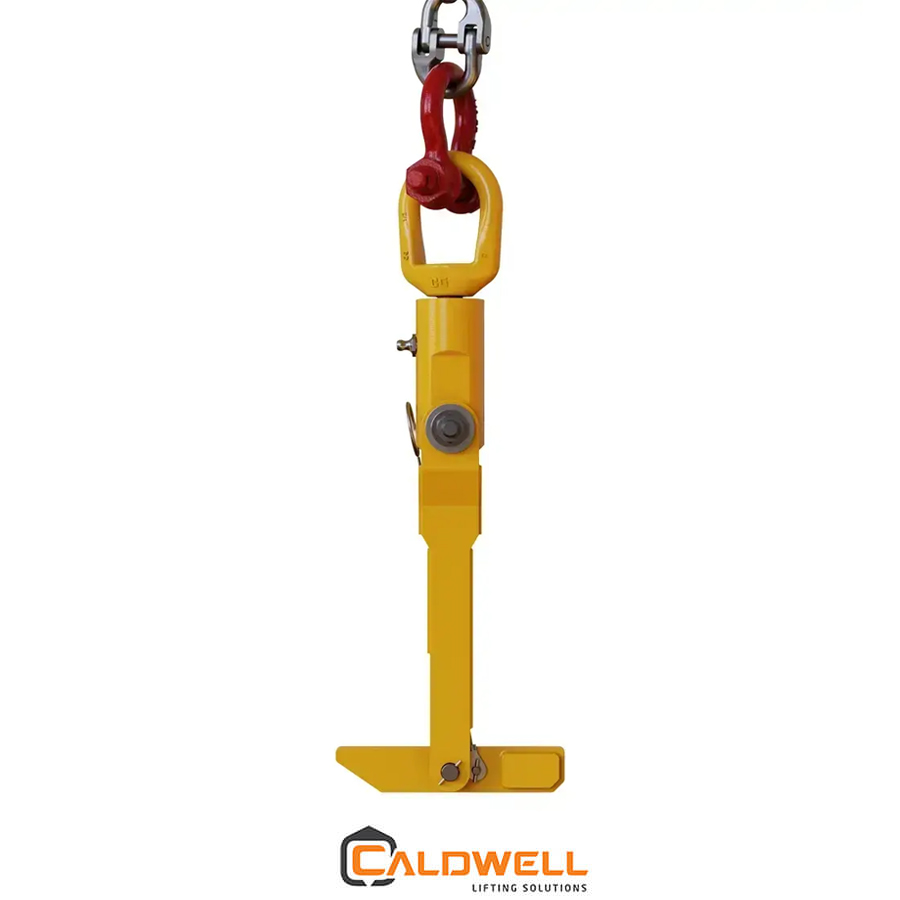

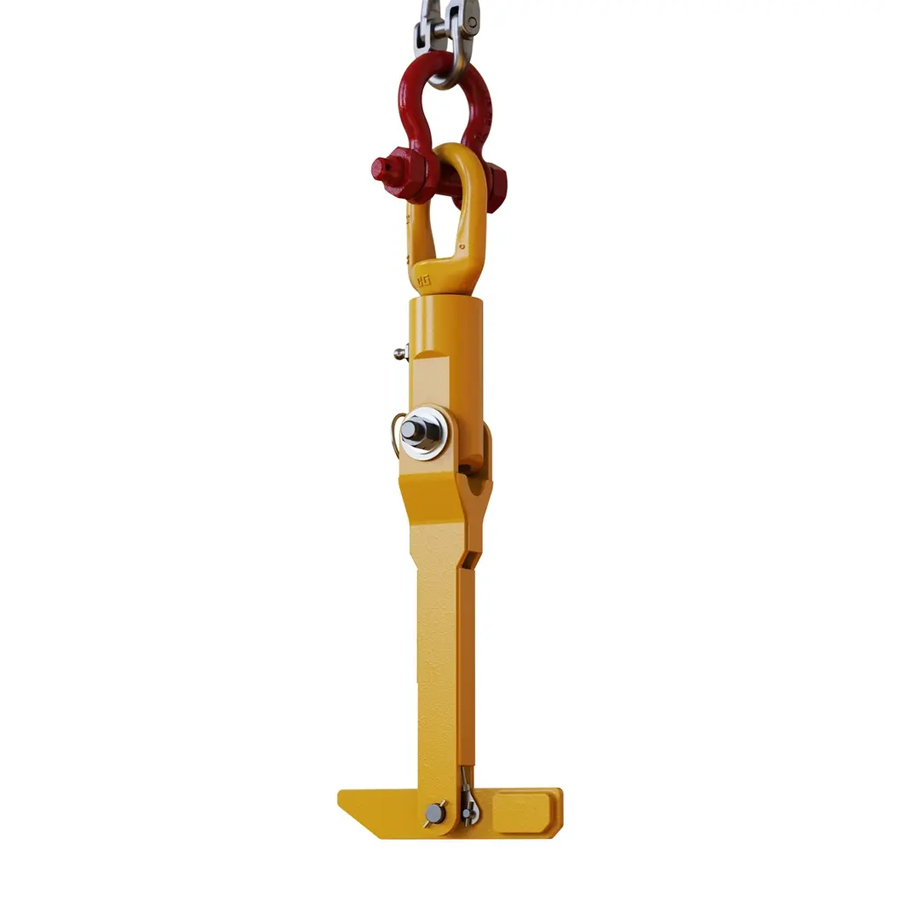

Caldwell Reel Lifter Model RL

Caldwell Reel Lifter Model RL

Hey utility contractors! This is what you’ve been looking for. The Model RL Reel Lifter will help you handle reels of wire, cable better during loading, transporting, or on-site dispensing.

Product Features:

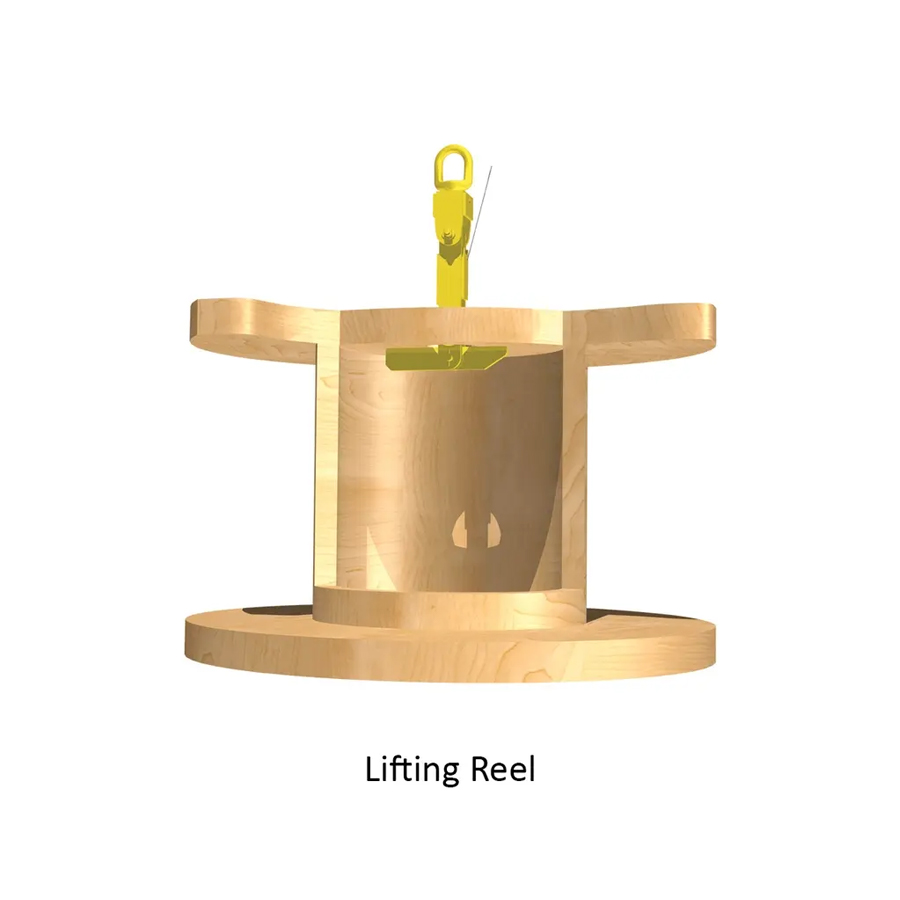

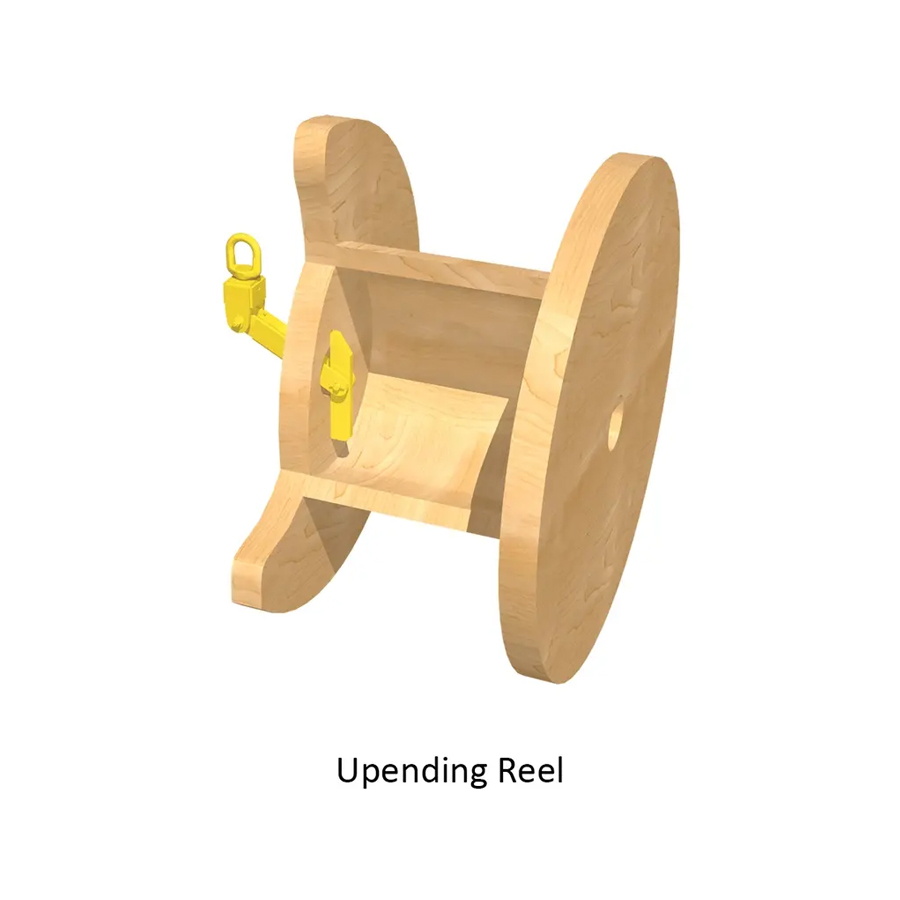

  • Rugged construction to lift and upend reels
  • Bearing included for easy rotation to unroll cable
  • One crane attachment point for both lifting and upending

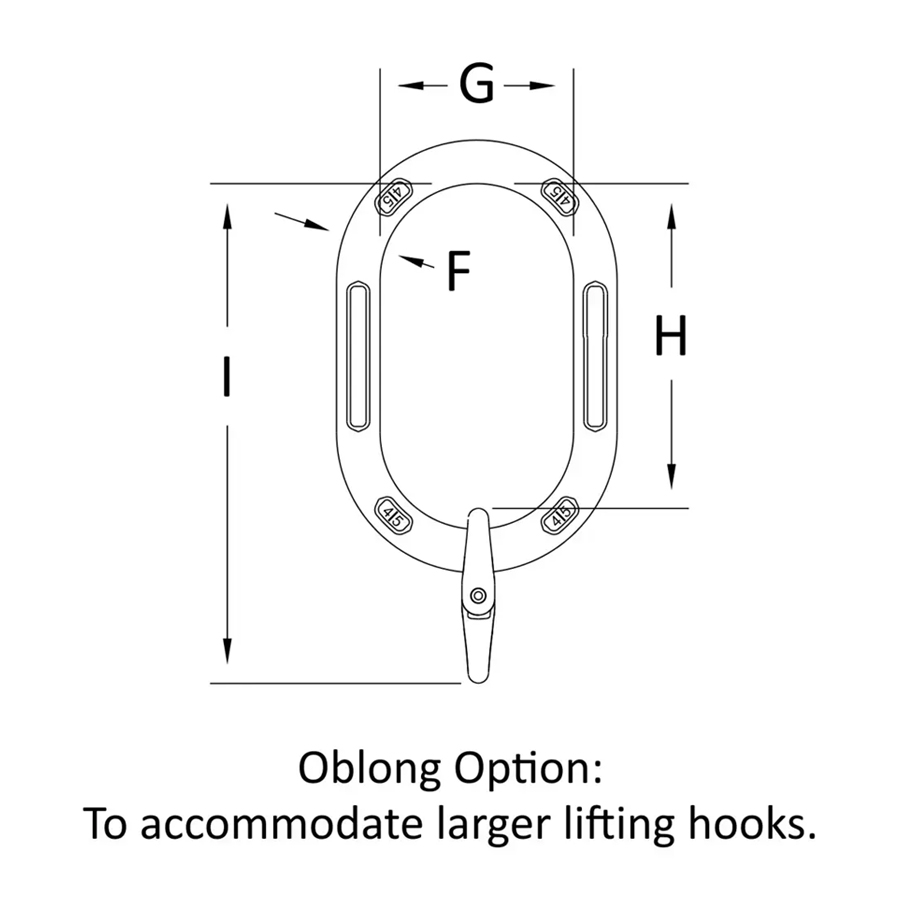

  • Optional oblong can be added for large crane hooks

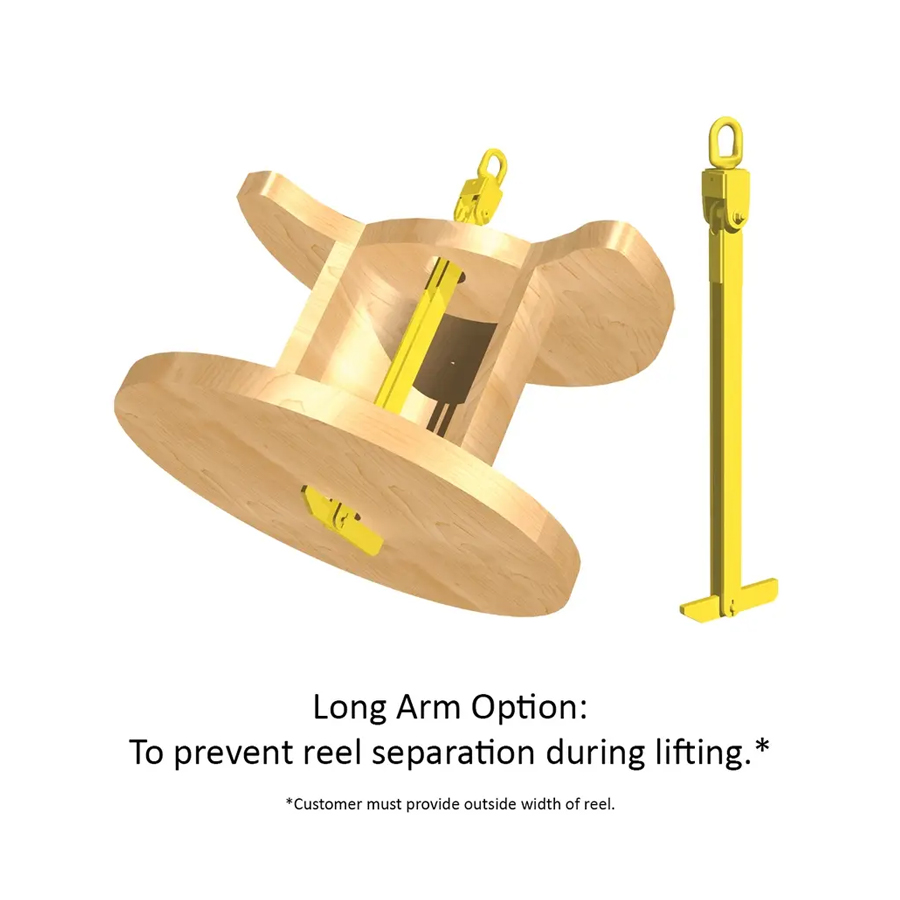

  • Special long arm option to lift and upend from outer flange

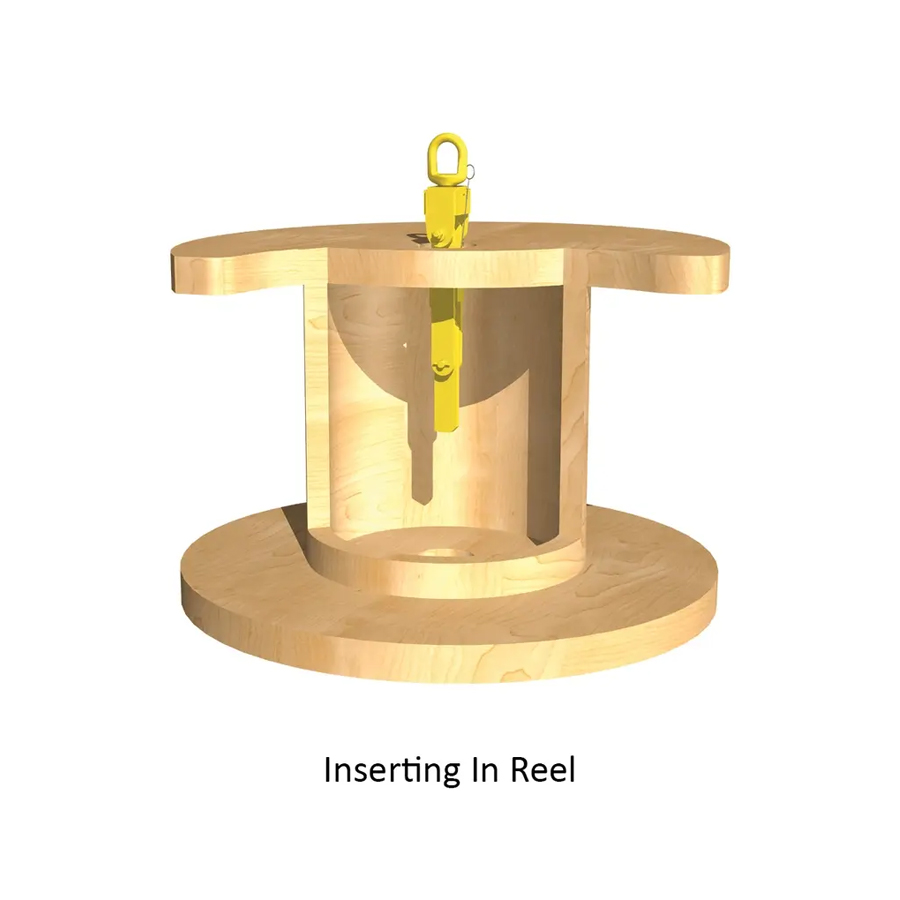

  • Bottom arm counterweighted for easy insertion in reel
  • Pull lanyard for pivoting bottom arm to lift

⚠ WARNING
Ensure the reel can withstand the forces applied by the lifter. Consult your reel supplier.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

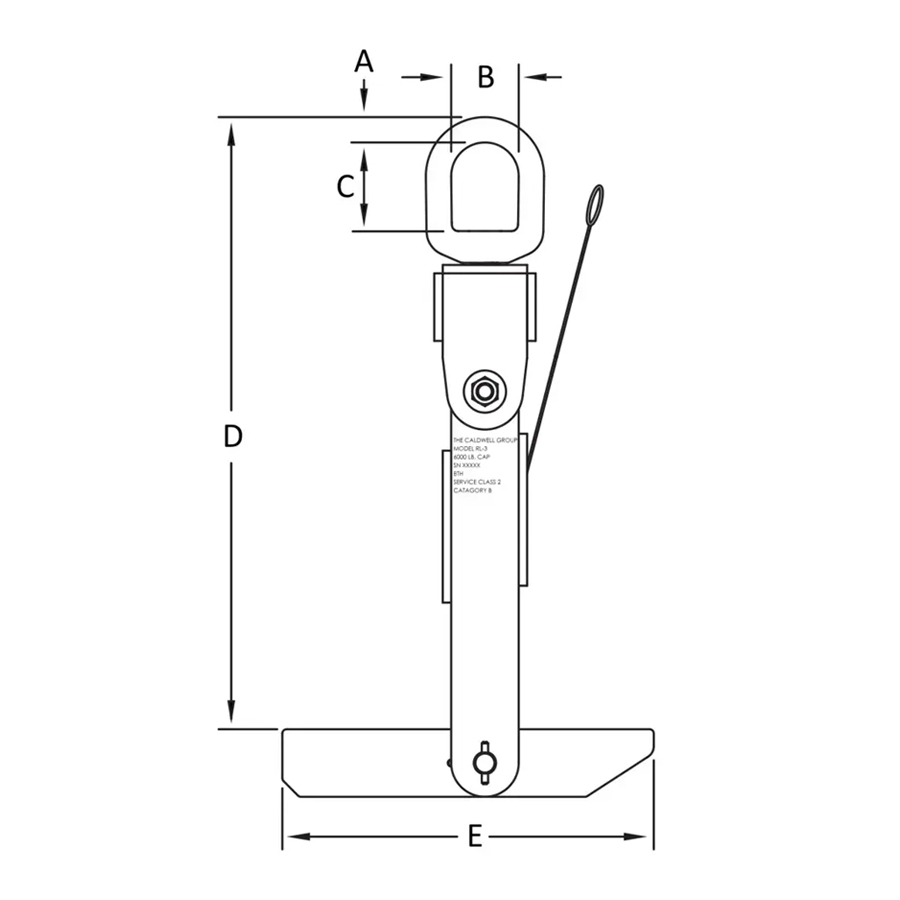

Model Number Capacity (tons) Max Arbor Hole (in.) Min Arbor Hole (in.) Max Flange Thickness (in.) Bail Open W (in.) Bail Open Ht (in.) Bail Thick (in.) Headroom (in.) Weight (lbs.) Min Drum Inner Dia (in.) Pivot Arm Length (in.) In Stock Price
RL-.25 0.25 2 1.25 2 1.5 1.92 0.5 12.5 5 5.5 5 ✔ $
RL-1.5 1.5 4 2 3 1.5 1.92 0.5 14.44 8 10 8.5 ❌ $
RL-3 3 5 3 4 2 2.63 0.75 17.38 17 13 11 ✔ $
RL-5.5 5.5 6 4 5 2.5 3.5 1 22.19 25 16 14 ✔ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
