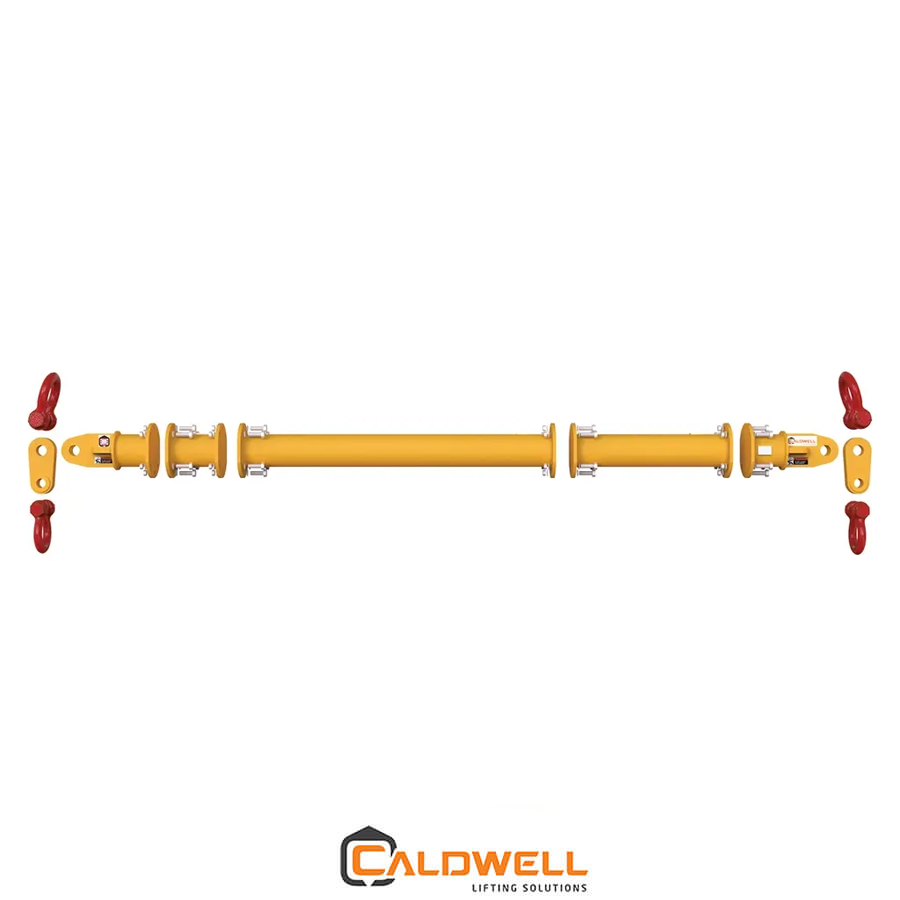

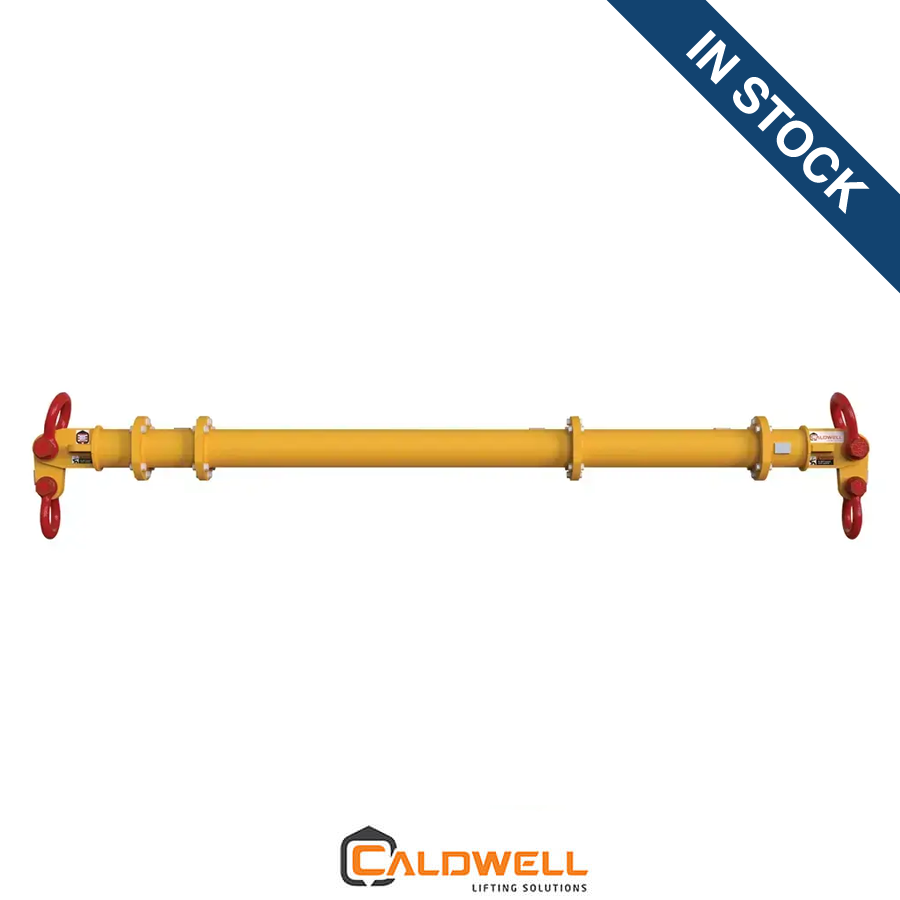

Caldwell’s 12 metric ton Two Lifting Point Bolted Modular Spreader beam can be configured in spreads of 2 to 18 feet.
| Model Number | Model Description | Weight (lbs.) | Number of Components Per Set |
|---|---|---|---|
| DM12-SS-2 | 2 ft. Spreader Section | 27 | 1 |
| DM12-DL | Drop Link | 5 | 2 |
| DM12-EF | End Fitting | 17 | 2 |
| DM12-SS-1 | 1 ft. Spreader Section | 17 | 1 |
| DM12-SS-3 | 3 ft. Spreader Section | 38 | 1 |
| DM12-SS-5 | 5 ft. Spreader Section | 58 | 3 |
