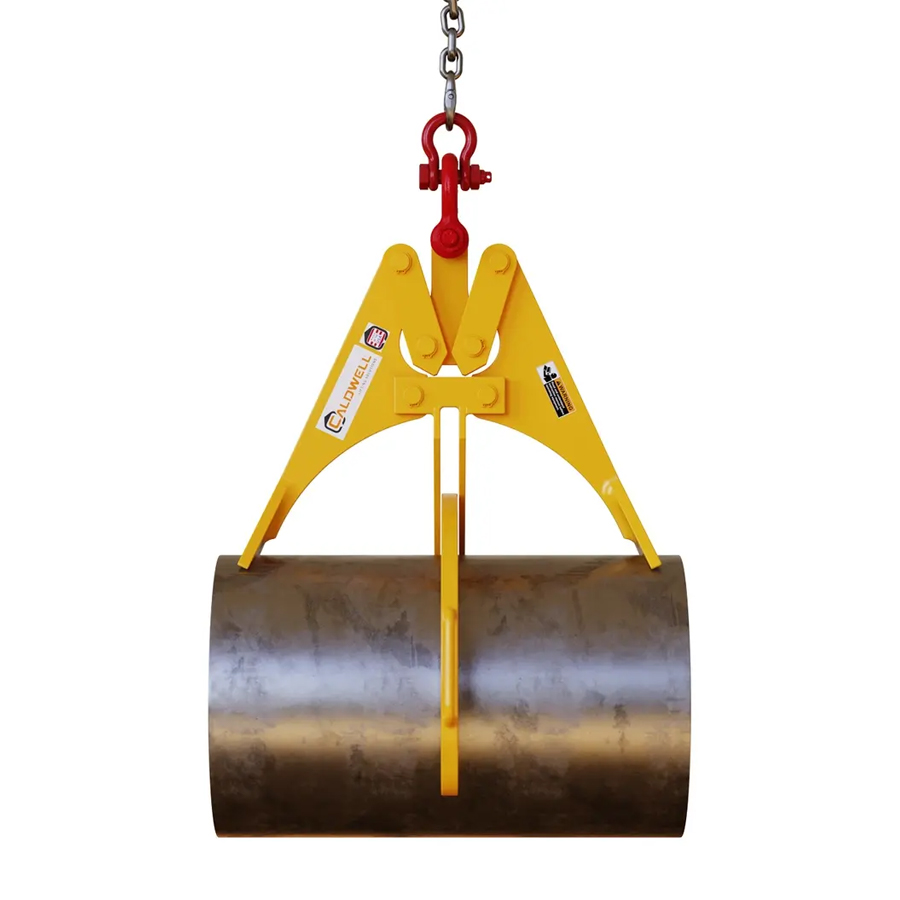

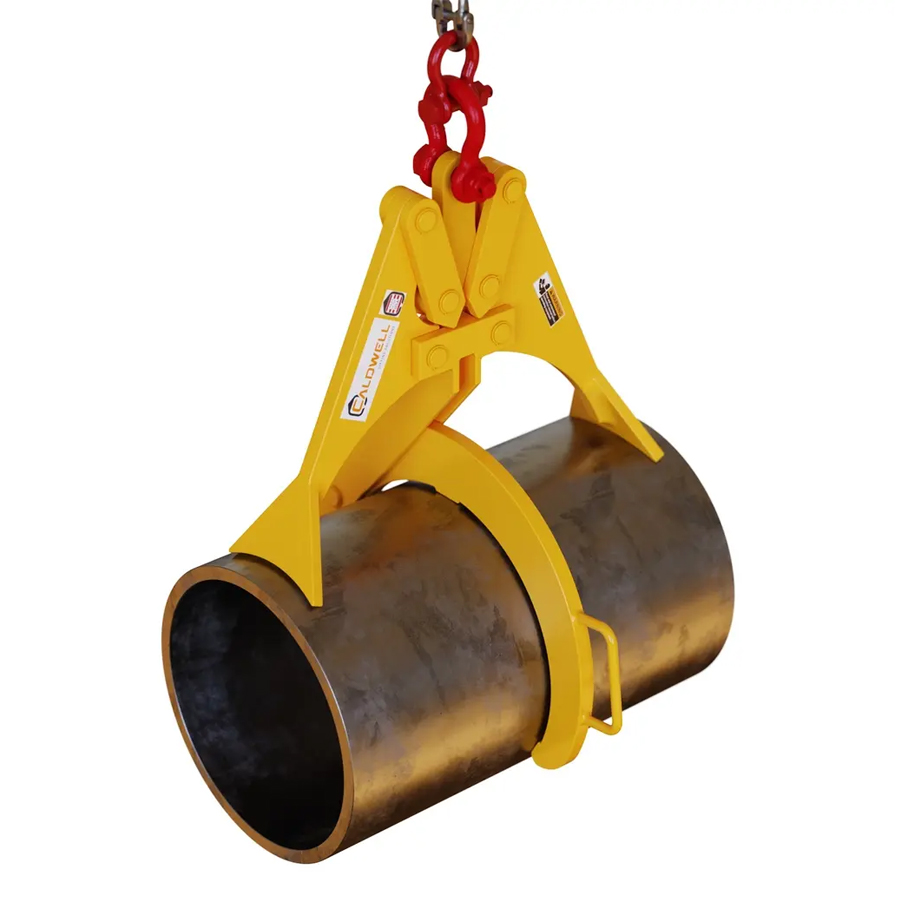

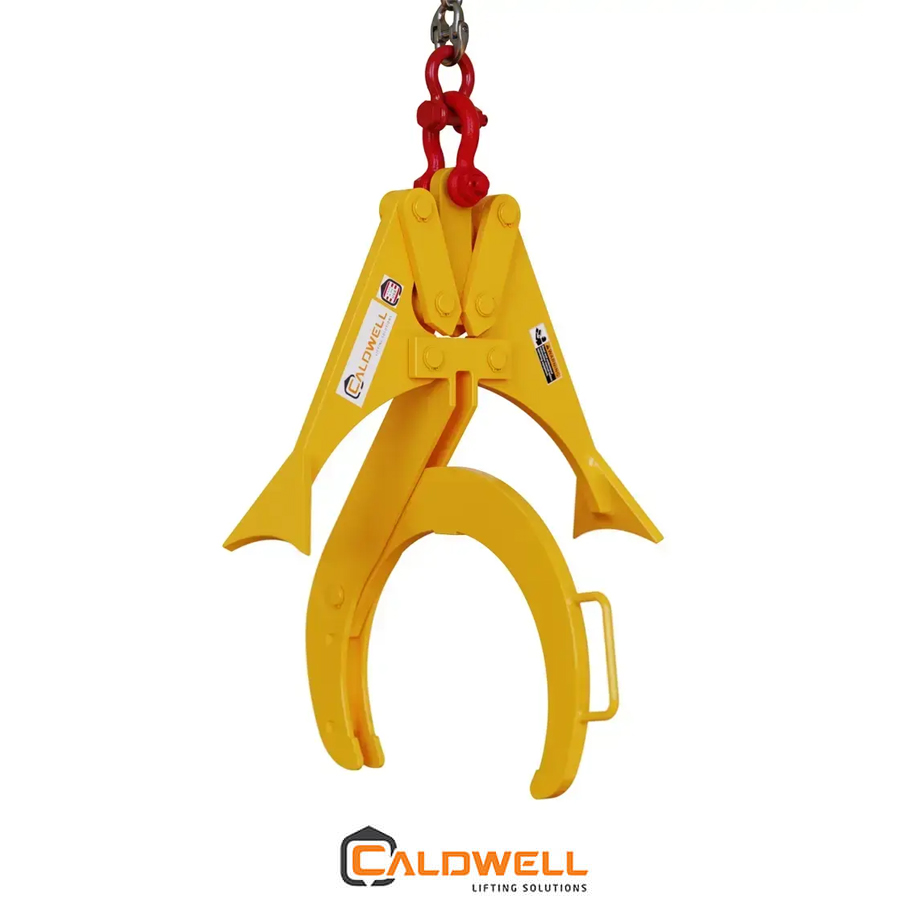

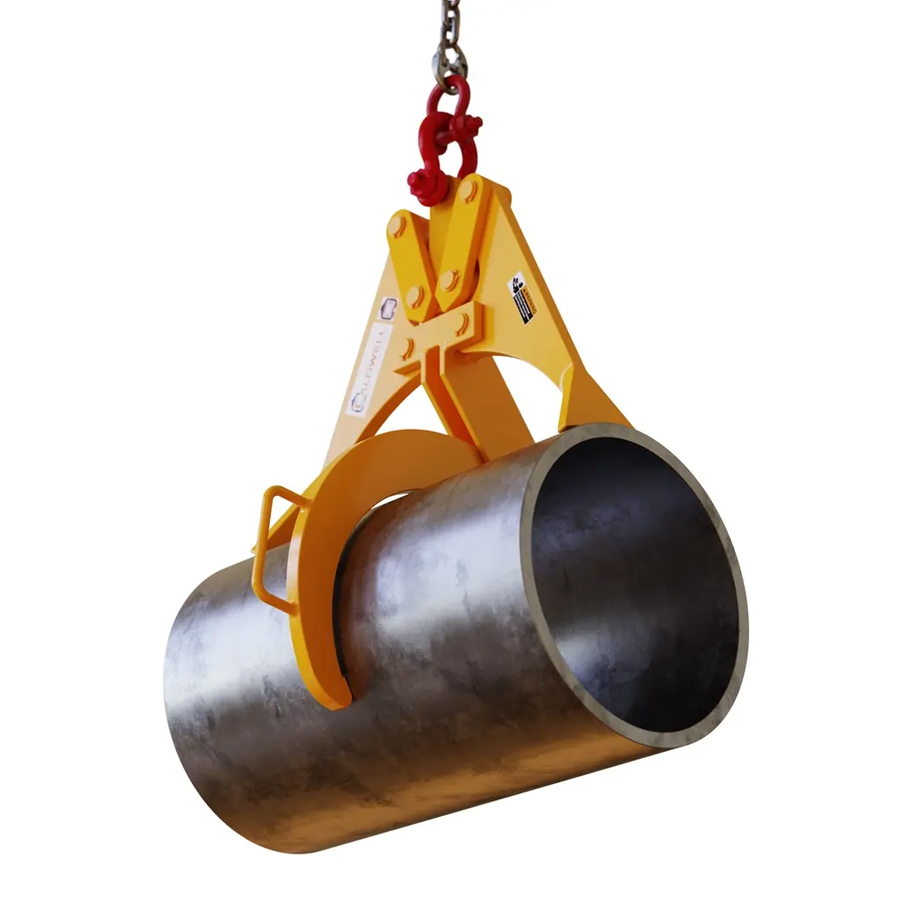

Caldwell C-3 Pipe Grab Model C

Caldwell C-3 Pipe Grab Model C

Excellent for cast iron, steel pipe, tubing, and other cylindrical objects.

Product Features:

  • Heavy duty automatic clamping design
  • Outriggers stabilize the pipe during lift
  • No blocking is required
  • The operator only has to guide the clamp into place
  • Pipes are handled quickly and efficiently when properly balanced
  • Excellent for cast iron, steel pipe, tubing, and other cylindrical objects
  • Pipe grab sizes listed handle ASA cast iron pipe – standard, extra strong, and double strong
  • Complies with ASME standards

⚠ WARNING:
The lifter shall not touch obstructions during load movement. The load or lifter shall not be slid on the floor or other surface.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

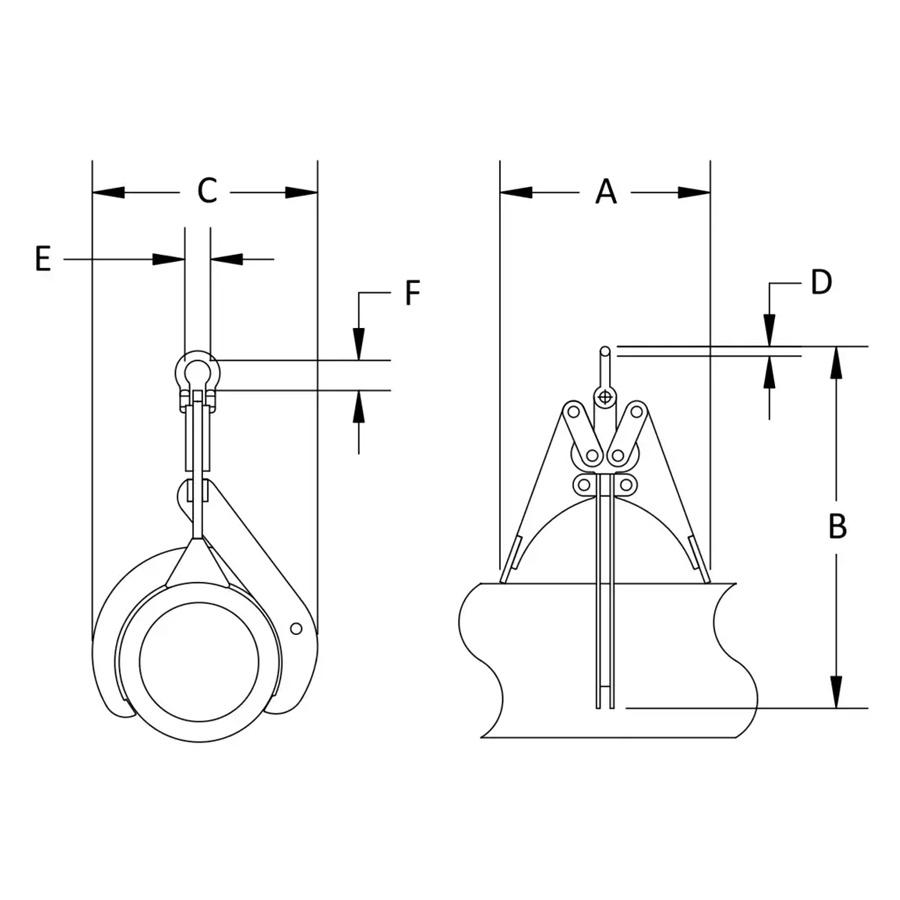

Model Number Capacity (tons) Headroom (in.) Weight (lbs.) Pipe Sz Inner Dia (in.) Shackle Ht Shackle Inner W Shackle Thick (in.) Unit Length Unit W In Stock Price
C-3 0.22 10 7 4 1.44 1.03 0.38 6 5 ✔ $
C-4 0.3 14 9 4.8 1.69 1.16 0.44 7 8 ✔ $
C-6 0.5 17 15 6.9 1.88 1.31 0.5 11 11 ✔ $
C-8 0.7 22 25 9.05 1.88 1.31 0.5 14 13 ✔ $
C-10 1 27 47 11.1 2.38 1.69 0.63 17 15 ❌ $
C-12 1.25 32 72 13.2 2.38 1.69 0.63 20 18 ❌ $
S-14 1.75 38 105 15.3 3.31 2.28 0.88 23 22 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
