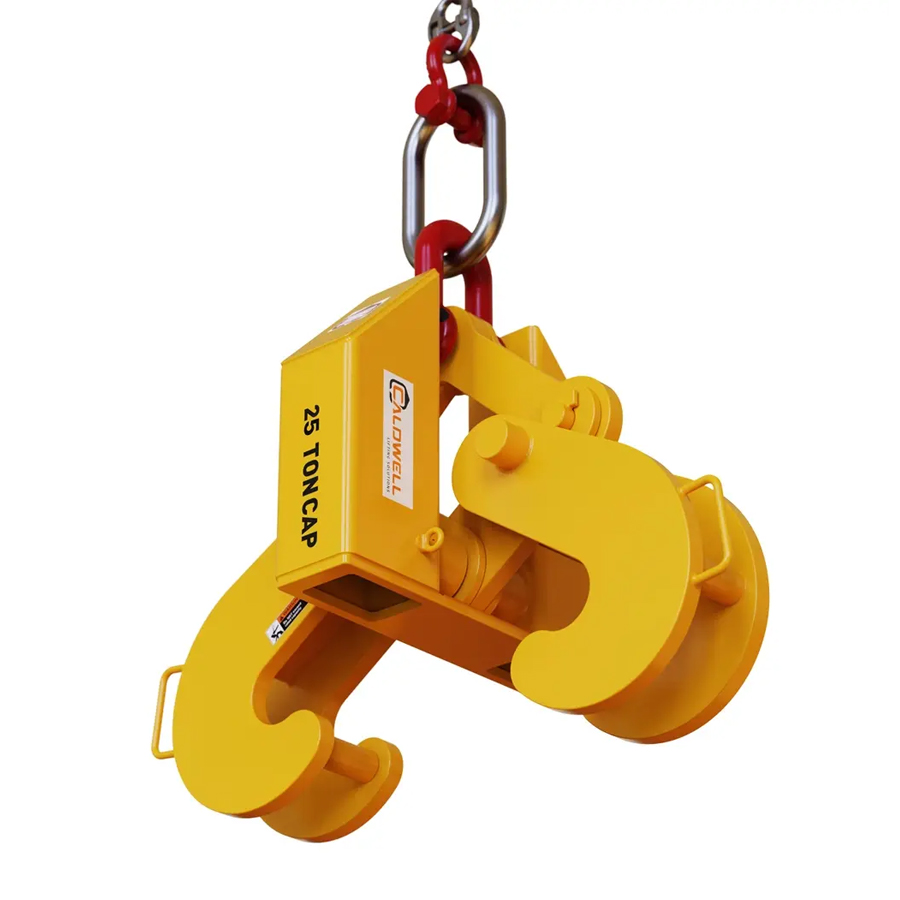

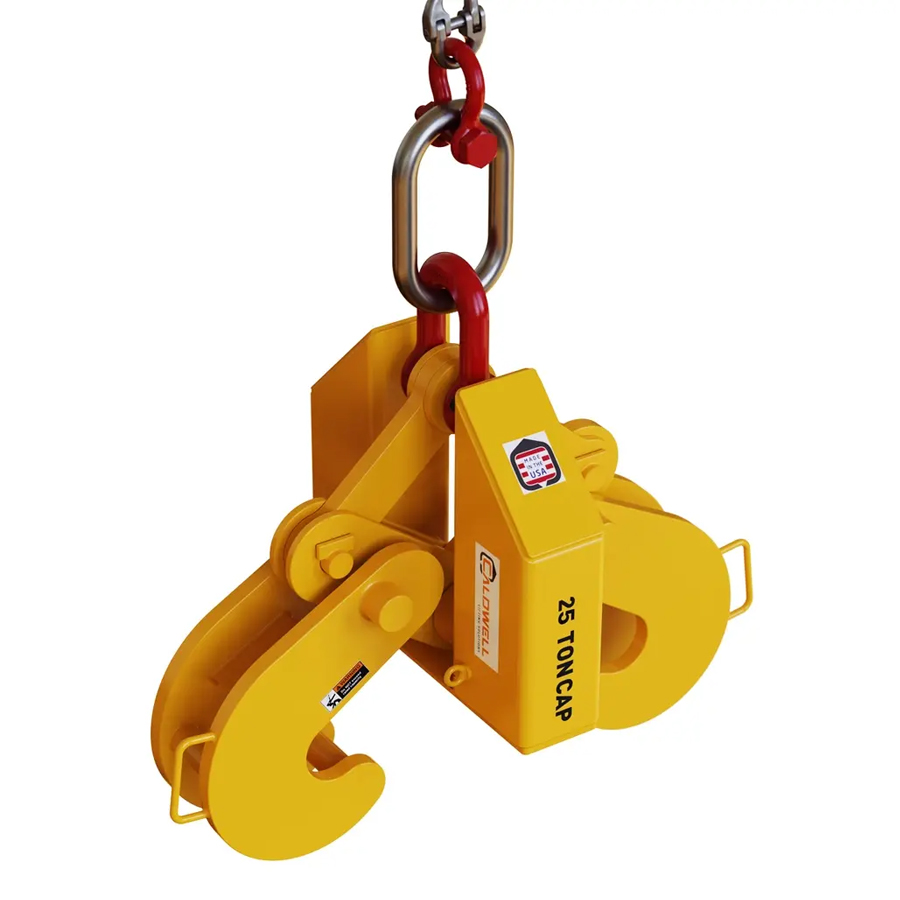

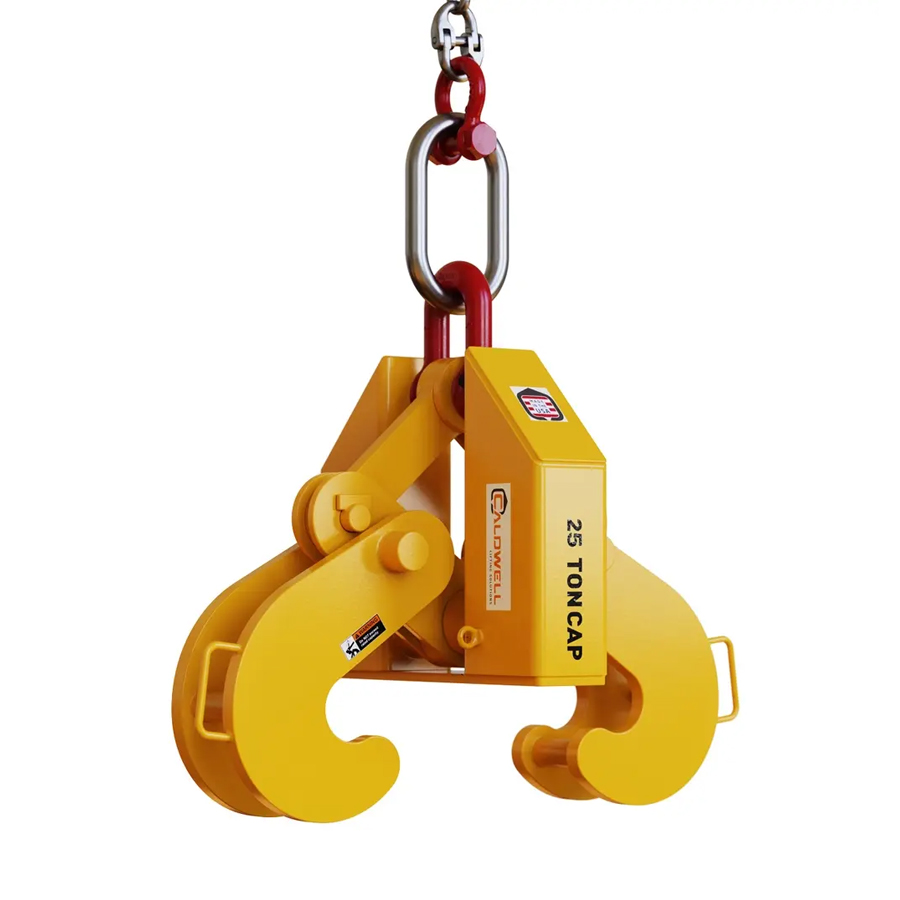

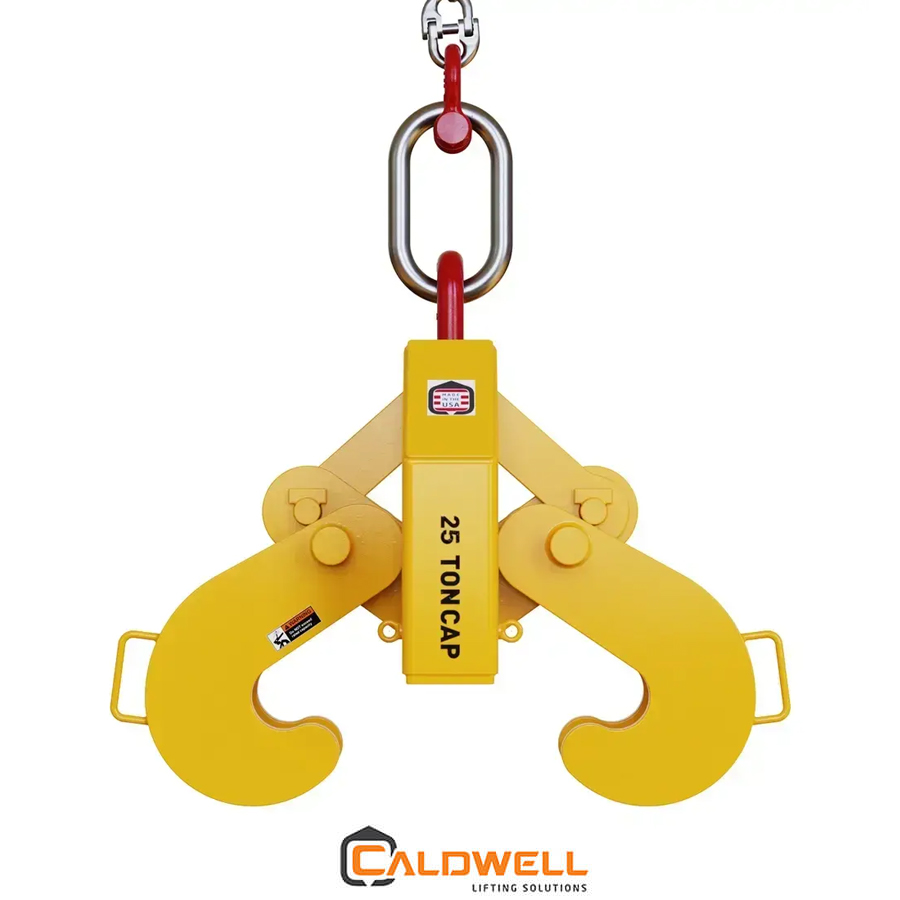

Caldwell Beam Grab Model F

Caldwell Beam Grab Model F

This Caldwell classic represents quality engineering, reliable performance, and a dedication to efficiency. With this beam grab on-site, you can eliminate the need for slings and chokers … saving you time and money in the long run.

Features:

  • Heavy duty design

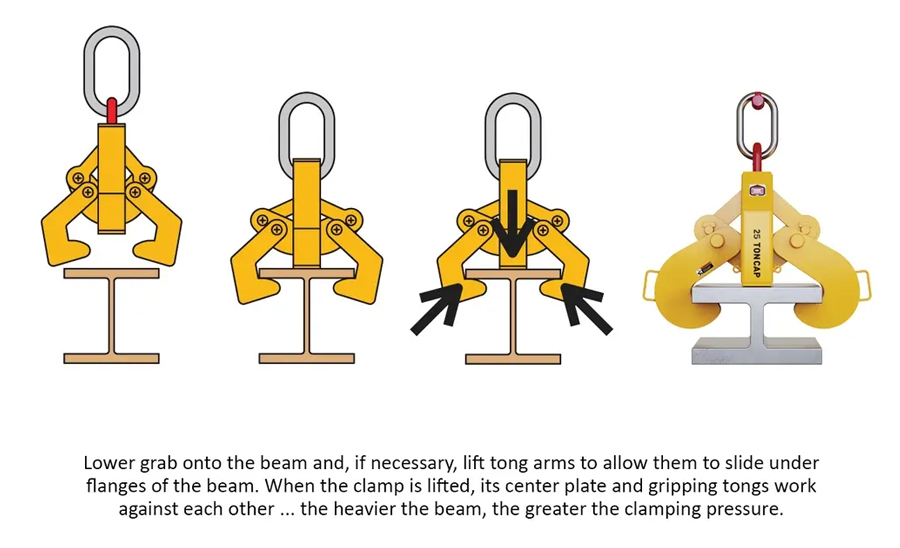

  • These grabs provide an efficient method for handling wide flange beam sections and plate girders
  • Clamps have a recessed base to accept studs welded to a beam’s surface
  • Beam grabs eliminate the need for slings or chokers
  • Use only for vertical lifting
  • For longer beams or girders, use units in pairs in conjunction with a spreader/lifting beam
  • Complies with ASME standards

WARNINGS:
Use only for vertical lifting.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

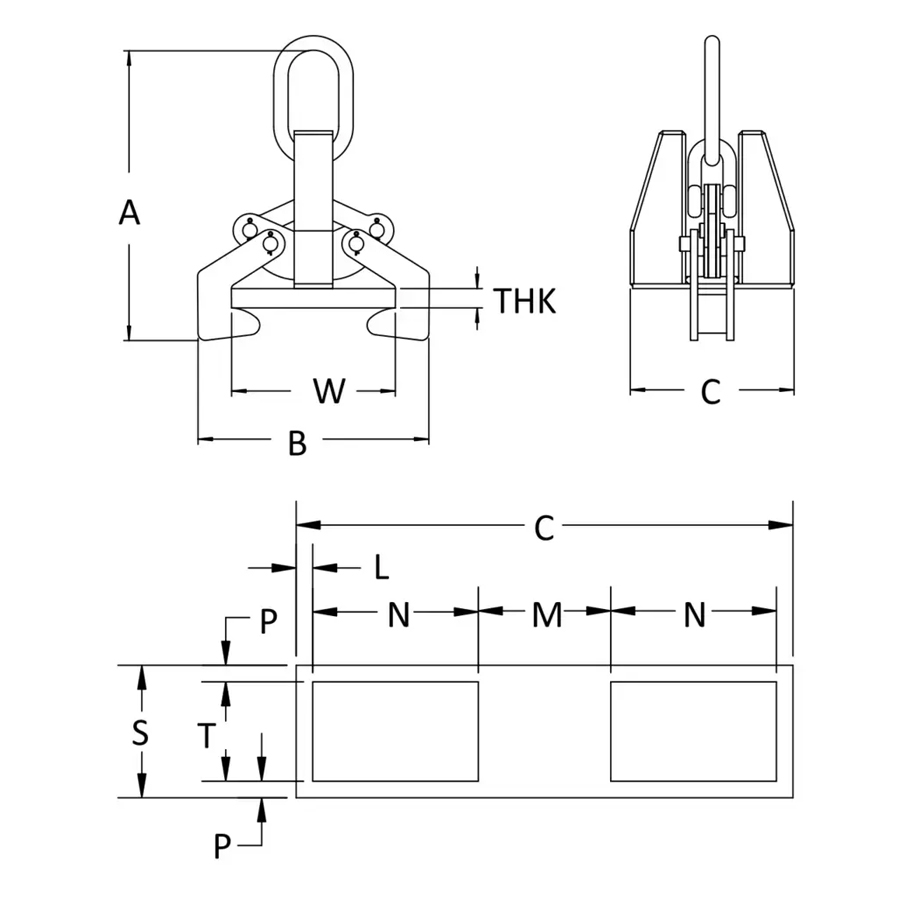

Model Number Capacity  (tons) Max W (in.) Max Flange Thickness (in.) Min Flange Thick (in.) Headroom (in.) Weight (lbs.) Cut Out Length (in.) Cut Out W (in.) Dist Btw Cut Outs (in.) Inner Length (in.) Inner W (in.) Max Flange W (in.) Min Flange W (in.) Wall Thick 1 (in.) Wall Thick 2 (in.) In Stock Price
F-5 5 15.7 1 0.25 22.7 68 2 3 4.6 3 11.6 10 4 0.5 0.5 ✔ $
F-15 15 25.1 2 0.25 30.1 210 2.5 4 7.3 4 17.5 17 7 0.9 0.9 ✔ $
F-25 25 45.2 3 1 44.8 665 4 6 9.8 5.5 24.5 24 16 1.3 0.8 ✔ $
F-35 35 61.6 4 1 52.9 993 4.5 9.3 8.5 6 28.5 36 16 0.8 0.8 ✔ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
