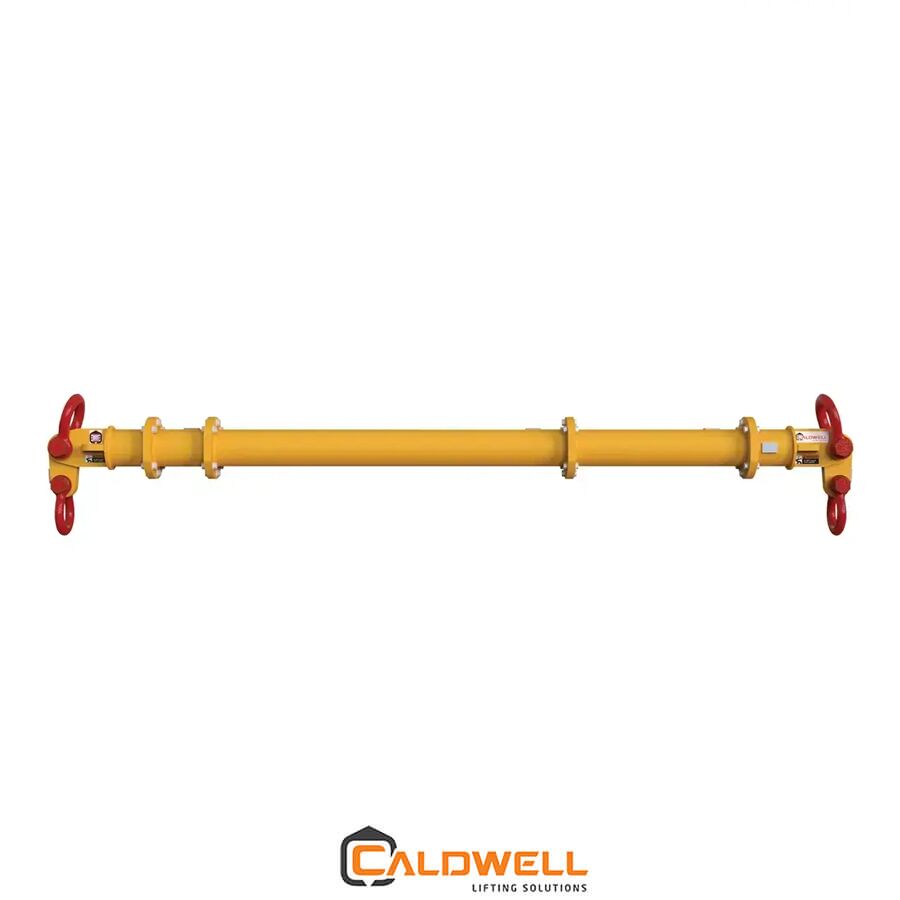

The Dura-Mod® 2-Point/110/170-Metric Ton Spreader Beam can be configured in spreads of 6′ to 59′. Order Spreader Sections, End Fittings, Drop Links, and Bolts separately to build the beam you want.
Features:
- 170-ton modular beam system includes two 1.5’L end fittings, two drop links, two 20’L spreader sections, one 10’L spreader section, one 8’L spreader section, one 6’L spreader section, one 4’L spreader section, one 2’L spreader section, one 1’L spreader section, plus corresponding bolt kits to handle complete assembly
- Lightweight in comparison to fixed/multiple point beams
- Easy to transport and store; single longest component is only 20’L
- Components can be reconfigured, added to or eliminated, to create different lengths and lifting capacities; see Capacity vs. Span chart
- Conforms to ASME B30.20, BTH-1, Design Category B, Class 0
DURA-MOD® DM110/170 NOTES:
- Bolts, Nuts and Washers can be reused as long as Anti-Seize Thread coating is used
- Slings and shackles are not provided as part of this assembly. Synthetic textile, chain and wire rope slings may be used. Consult your sling supplier as part of your lifting plan
- Reference the DM110/170 Capacity Vs. Span Chart for additional information.
