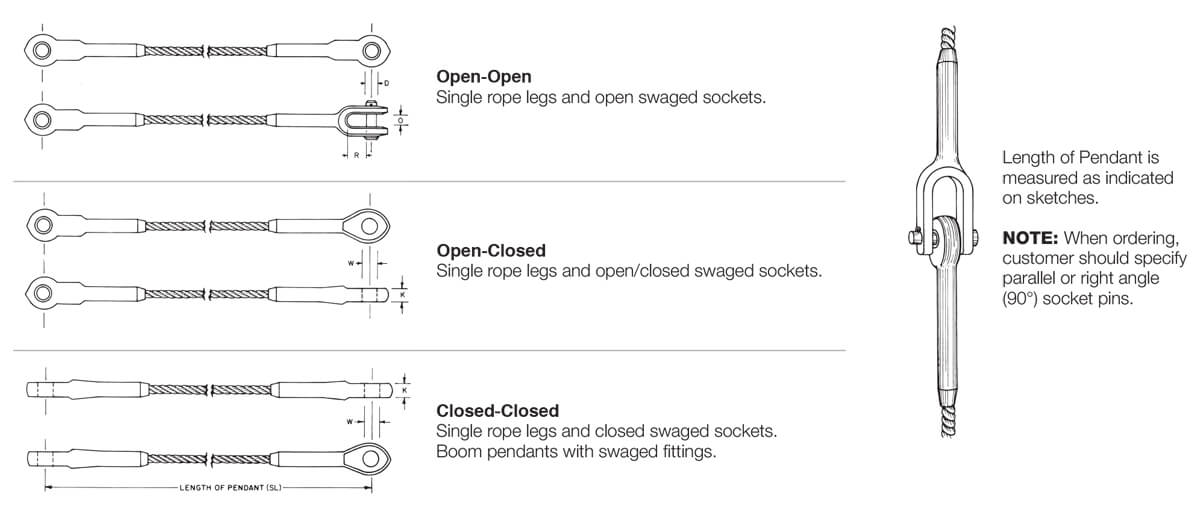

| Open-Open | Open-Closed | Closed-Closed | Open-Open | Open-Closed | Closed-Closed | ||||
| ROPE DIA. (IN) | FIBER CORE | IWRC | |||||||
|---|---|---|---|---|---|---|---|---|---|
| VERTICAL | VERTICAL | ||||||||
| CERTEX Cat. Ref. No | CERTEX Cat. Ref. No | CERTEX Cat. Ref. No | EIPS | CERTEX Cat. Ref. No | CERTEX Cat. Ref. No | CERTEX Cat. Ref. No | EIPS | EEIPS | |
| 1/4 | CX02-0452 | CX02-0496 | CX02-0540 | 0.60 | CX02-0474 | CX02-0518 | CX02-0562 | 0.68 | 0.74 |
| 5/16 | CX02-0453 | CX02-0497 | CX02-0541 | 0.94 | CX02-0485 | CX02-0519 | CX02-0563 | 1.1 | 1.2 |
| 3/8 | CX02-0454 | CX02-0498 | CX02-0542 | 1.3 | CX02-0486 | CX02-0520 | CX02-0564 | 1.5 | 1.7 |
| 7/16 | CX02-0455 | CX02-0499 | CX02-0542 | 1.8 | CX02-0486 | CX02-0521 | CX02-0565 | 2.0 | 2.2 |
| 1/2 | CX02-0456 | CX02-0500 | CX02-0543 | 2.4 | CX02-0487 | CX02-0522 | CX02-0566 | 2.7 | 2.9 |
| 9/16 | CX02-0457 | CX02-0501 | CX02-0544 | 3.0 | CX02-0488 | CX02-0523 | CX02-0567 | 3.4 | 3.7 |
| 5/8 | CX02-0458 | CX02-0502 | CX02-0545 | 3.7 | CX02-0489 | CX02-0524 | CX02-0567 | 4.1 | 4.5 |
| 3/4 | CX02-0459 | CX02-0503 | CX02-0546 | 5.2 | CX02-0490 | CX02-0523 | CX02-0568 | 5.9 | 6.5 |
| 7/8 | CX02-0460 | CX02-0504 | CX02-0547 | 7.1 | CX02-0491 | CX02-0524 | CX02-0569 | 8.0 | 8.8 |
| 1 | CX02-0461 | CX02-0505 | CX02-0548 | 9.2 | CX02-0492 | CX02-0525 | CX02-0570 | 10 | 11 |
| 1 1/8 | CX02-0462 | CX02-0506 | CX02-0549 | 12 | CX02-0493 | CX02-0526 | CX02-0571 | 13 | 14 |
| 1 1/4 | CX02-0463 | CX02-0507 | CX02-0550 | 14 | CX02-0494 | CX02-0527 | CX02-0572 | 16 | 18 |
| 1 3/8 | CX02-0464 | CX02-0508 | CX02-0551 | 17 | CX02-0945 | CX02-0528 | CX02-0573 | 19 | 21 |
| 1 1/2 | CX02-0465 | CX02-0509 | CX02-0552 | 20 | CX02-0946 | CX02-0528 | CX02-0574 | 23 | 25 |
| 1 5/8 | CX02-0466 | CX02-0510 | CX02-0553 | 24 | CX02-0947 | CX02-0529 | CX02-0575 | 26 | 29 |
| 1 3/4 | CX02-0467 | CX02-0511 | CX02-0554 | 27 | CX02-0948 | CX02-0530 | CX02-0576 | 31 | 34 |
| 1 7/8 | CX02-0468 | CX02-0512 | CX02-0555 | 31 | CX02-0949 | CX02-0531 | CX02-0577 | 35 | 38 |
| 2 | CX02-0469 | CX02-0513 | CX02-0556 | 35 | CX02-0950 | CX02-0532 | CX02-0578 | 40 | 43 |
| 2 1/8 | CX02-0470 | CX02-0514 | CX02-0557 | 39 | CX02-0951 | CX02-0533 | CX02-0579 | 44 | 49 |
| 2 1/4 | CX02-0471 | CX02-0515 | CX02-0558 | 44 | CX02-0952 | CX02-0534 | CX02-0580 | 49 | 54 |
| 2 3/8 | CX02-0472 | CX02-0516 | CX02-0559 | 49 | CX02-0953 | CX02-0535 | CX02-0581 | 55 | 60 |
| 2 1/2 | CX02-0473 | CX02-0517 | CX02-0560 | 54 | CX02-0954 | CX02-0536 | CX02-0582 | 60 | 66 |
RATED CAPACITY IN TONS
Rated Capacities Shown Apply Only To 6×19 and 6×36 Classification Wire Rope
* Values given apply when pendants are used as slings or sling assemblies.
When used in a Boom suspension system, other values apply; consult rope manufacturer.
