Yoke® Eye-Hook Angular Contact Bearing Swivel

Yoke® Eye-Hook Angular Contact Bearing Swivel

● Manufactured using the highest grade of material available.
● Designed with a safety factor of 5:1.
● Available in sizes from 3/4 Tons to 35 Tons.
● Available for wire lines 1/4″ to 1-1/4″.
● Zinc plated for corrosion resistance and longer life.
● Manufactured with grease fittings for superior performance.
● Designed for low starting torque and high rotation speed.
● All Swivels parts are 100% magna flux crack detected.
● 20,000 cycle fatigue rate to 1.5 times working load limit.
● All parts with batch number for quality certified and traceability.

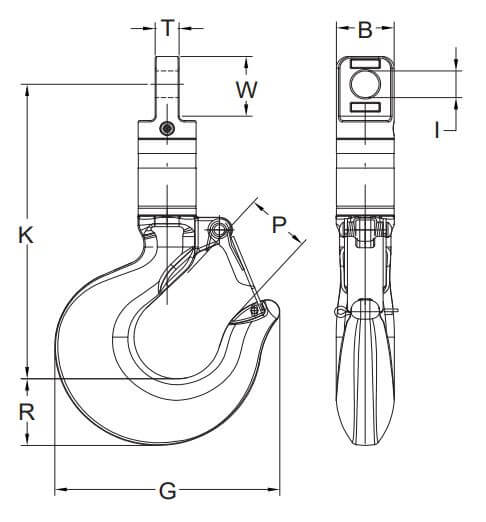

Item No. Wire Line Size Working Load Limit Dimensions (inch) N.W.
inch Tons* B G I K P R T W lbs
8-307-0075 1/4 0.75 1.30 3.15 0.71 6.20 1.00 0.83 0.39 1.57 1.5
8-307-015 3/8 1.5 1.60 4.02 0.87 7.30 1.20 1.14 0.59 1.92 3.1
8-307-03 1/2 3 2.00 5.13 1.06 9.60 1.40 1.42 0.87 2.09 7.0
8-307-05 5/8 5 2.50 6.54 1.29 12.44 1.70 1.85 1.02 2.76 14.3
8-307-085 3/4 8.5 3.00 8.69 1.46 15.00 2.40 2.60 1.26 3.43 29.3
8-307-10 7/8 10 4.00 10.91 3.19 18.38 3.20 3.00 1.65 4.17 57.0
8-307-15 1 15 4.30 10.91 3.19 19.10 3.20 3.00 1.93 4.88 63.6
8-307-25 1 1/4 25 5.20 13.89 3.27 22.95 3.30 3.62 2.32 5.71 119.9

★ Minimum Ultimate Load is 5 times the Working Load Limit.
Maximum Proof Load is 2 times the Working Load Limit.

Item No. Wire Line Size Working Load Limit Dimensions (mm) N.W.
mm Tons* B G I K P R T W kg
8-307-0075 6 0.75 32 80 18 157 25 21 10 40 0.7
8-307-015 10 1.5 40 102 22 185 30 29 15 48 1.4
8-307-03 13 3 51 130 27 243 36 36 22 53 3.2
8-307-05 16 5 64 166 33 316 43 47 26 70 6.5
8-307-085 19 8.5 76 221 37 381 62 66 32 87 13.3
8-307-10 22 10 102 277 44 467 81 76 42 106 25.9
8-307-15 25 15 108 277 54 485 81 76 49 124 28.9
8-307-25 32 25 132 353 66 583 83 92 59 145 54.5

★ Minimum Ultimate Load is 5 times the Working Load Limit.
Maximum Proof Load is 2 times the Working Load Limit.
