Yoke® Eye-Eye Angular Contact Bearing Swivel

Yoke® Eye-Eye Angular Contact Bearing Swivel
  • Yoke Angular Swivels are manufactured using the highest grade of material available.
  • They are zinc plated for corrosion resistance and longer life. Angular Swivels are designed for low starting torque and high rotation speed, they are manufactured with grease fittings for superior performance.
  • All Angular Swivels are 100% magnaflux crack detected. Designed with a safety factor 5:1.

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Metric

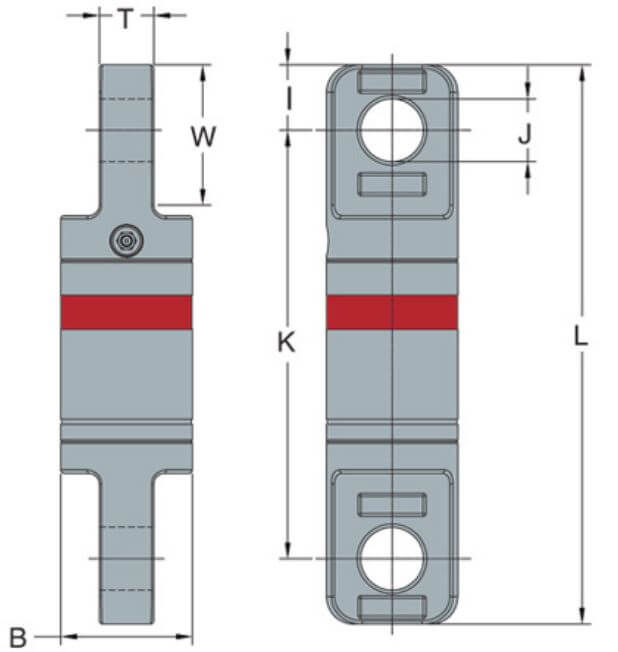

Part Code Wire Line Size mm WLL tonnes B mm I mm J mm K mm L mm T mm W mm Mass kg
8-306-0075 6 0.75 32 18 19 103 139 12 37 0.5
8-306-015 10 1.5 40 22 23 117 160 15 43 0.9
8-306-03 13 3.0 51 28 27 158 214 20 51 2.1
8-306-05 16 5.0 64 33 33 210 276 26 59 4.4
8-306-085 19 8.5 76 38 37 249 325 32 82 7.3
8-306-10 22 10.0 102 52 44 310 413 42 90 17.0
8-306-15 25 15.0 108 64 54 316 443 49 110 21.0
8-306-25 32 25.0 132 70 66 407 547 60 130 39.0

Imperial

Part Code Wire Line Size inch WLL tonnes B inch I inch J inch K inch L inch T inch W inch Mass lbs.
8-306-0075 1/4 0.75 1.30 0.70 0.70 4.10 5.50 0.50 1.50 1.1
8-306-015 3/8 1.5 1.60 0.90 0.90 4.60 6.30 0.60 1.70 2.0
8-306-03 1/2 3.0 2.00 1.10 1.10 6.20 8.40 0.80 2.00 4.6
8-306-05 5/8 5.0 2.50 1.30 1.30 8.30 10.90 1.00 2.30 9.7
8-306-085 3/4 8.5 3.00 1.50 1.50 9.80 12.80 1.30 3.20 16.1
8-306-10 7/8 10.0 4.00 2.10 2.00 12.20 16.30 1.70 3.50 37.4
8-306-15 1 15.0 4.30 2.50 2.50 12.40 17.40 1.90 4.30 46.3
8-306-25 1-1/4 25.0 5.20 2.80 2.80 16.00 21.50 2.40 5.10 86.00
