Associated Wire Rope Round Overhaul Balls

Associated Wire Rope Round Overhaul Balls

The weight of the overhaul balls in this segment are based on average boom lengths and efficiency loss in mobile and crawler cranes. The low friction and easy to access hook swivel design makes the OHB series an excellent choice for a wide variety of crane applications.

  • Top swiveling stud-eye
  • Design Factor of Safety of 4:1
  • High quality, low friction thrust bearing
  • Becket size optimized for Ropeblock Sockets such as Open Wedge (OWS), Open Spelter Sockets (OSS), Fast Connector Sockets (FCS) or Super Reeve Connector Sockets (SCS)
  • Forged alloy steel eye hooks
  • Body made of forged bar material
  • Impact resistant ductile body
  • Operational temperature range: -40 up to +80°C / -40 up to +176°F
  • C3M finish, signal yellow
Contact Your Local Branch To Learn More

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

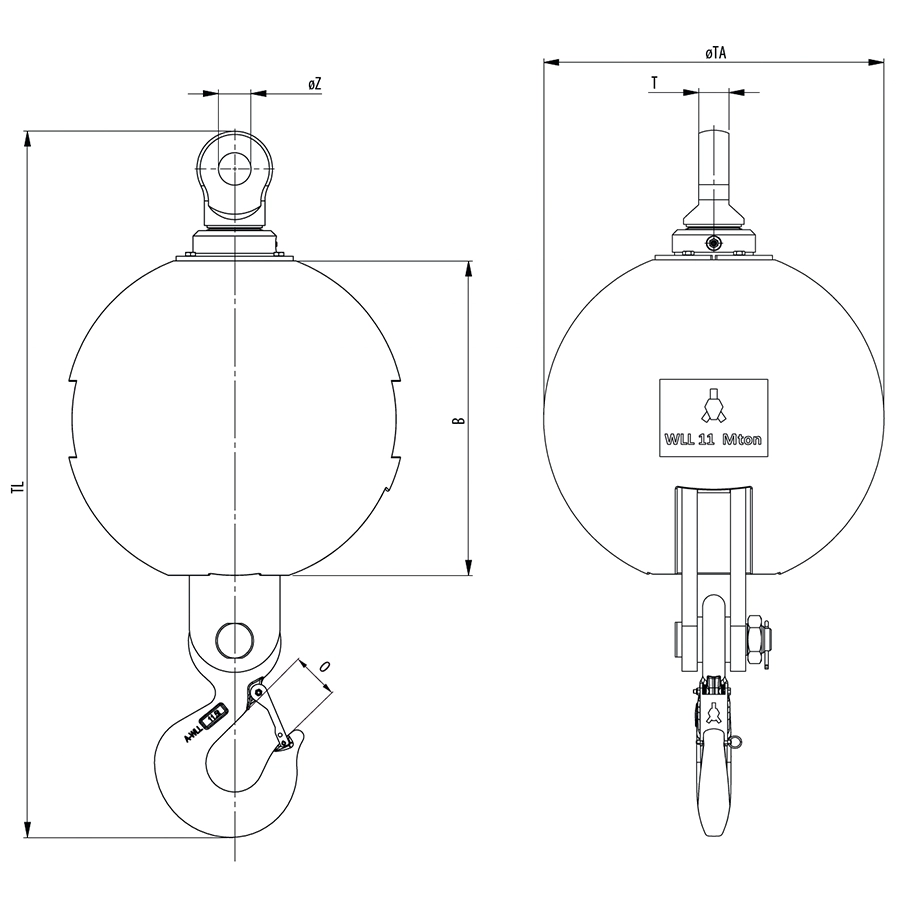

Model No. WLL
(UStons)		 For Wire ød
(inch)		 Dimensions (inch) Weight (lbs)
B O øTA TL T øZ
OHB-B 4,5.50-x 5 1/2 – 3/4 7.8 1.7 9.1 26.2 TBD TBD 110
OHB-B 4,5.110-x 5 1/2 – 3/4 11.4 1.7 12.3 27.4 TBD TBD 242
OHB-B 4,5.145-x 5 1/2 – 3/4 12.6 1.7 13.5 28.9 TBD TBD 320
OHB-B 7.50-x 8 1/2 – 3/4 7.8 1.7 9.1 26.2 TBD TBD 110
OHB-B 7.80-x 8 1/2 – 3/4 10 1.7 11 26.2 TBD TBD 175
OHB-B 7.110-x 8 1/2 – 3/4 11.4 1.7 12.3 27.4 TBD TBD 242
OHB-B 7.145-x 8 1/2 – 3/4 12.6 1.7 13.5 28.9 TBD TBD 320
OHB-B 11.180-x 12 3/4 – 1 1/8 13.1 2.1 14.6 33 TBD TBD 396
OHB-B 11.265-x 12 3/4 – 1 1/8 15.4 2.1 16.7 35.9 TBD TBD 583
OHB-B 11.320-x 12 3/4 – 1 1/8 16.4 2.1 17.7 36.9 TBD TBD 705
OHB-B 11.530-x 12 3/4 – 1 1/8 20 2.1 21.1 40.4 TBD TBD 1165
OHB-B 14.270-x 15 3/4 – 1 1/8 15.4 2.3 16.7 37.1 TBD TBD 594
OHB-B 14.325-x 15 3/4 – 1 1/8 16.4 2.3 17.7 38.5 TBD TBD 715
OHB-B 14.387-x 15 3/4 – 1 1/8 17.7 2.3 18.9 38.9 TBD TBD 850
OHB-B 18.195-x 20 3/4 – 1 1/8 13.1 3.1 14.6 38.3 TBD TBD 429
OHB-B 18.330-x 20 3/4 – 1 1/8 16.4 3.1 17.7 42 TBD TBD 726
OHB-B 18.392-x 20 3/4 – 1 1/8 17.7 3.1 18.9 42.6 TBD TBD 862
OHB-B 18.545-x 20 3/4 – 1 1/8 20 3.1 21.1 45.6 TBD TBD 1200

Minimum Ultimate Strength = 4 x WLL

  • The dimensions in this table are indicative only. A drawing will always be submitted prior to production and will be the leading document when discussing dimensions.
  • Overhaul Balls shown here are standard models; inquiries for custom versions are welcome.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
