X100® Synthetic Round Sling Hooks

X100® Synthetic Round Sling Hooks
APPROVED FOR OVERHEAD LIFTING
  • Approved for overhead lifting
  • Forged alloy steel
  • Quenched & tempered
  • Powder coated
  • Forged latch
  • 100% mag-particle crack detection

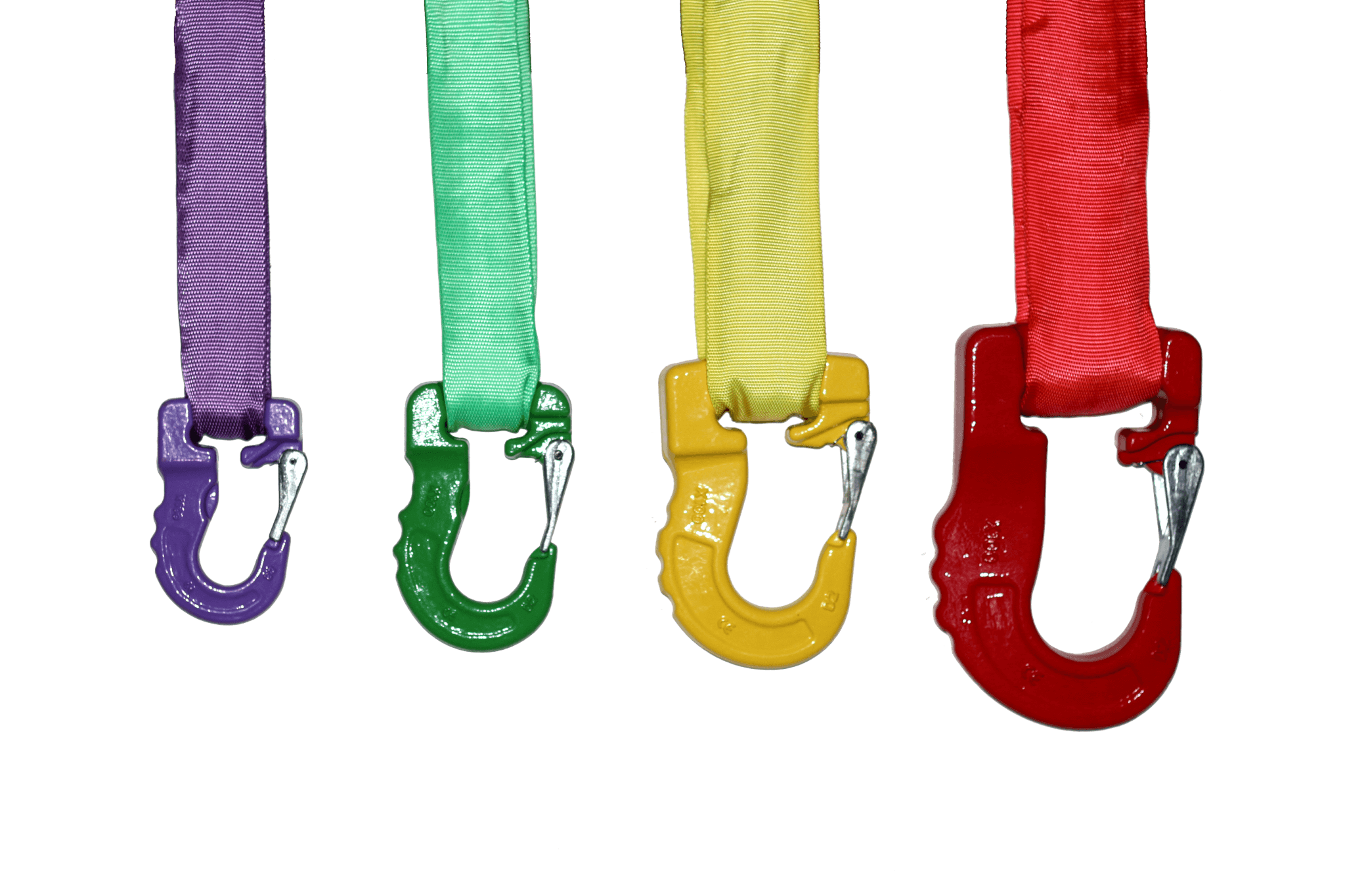

  • Color coded to match Endless Round Sling

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

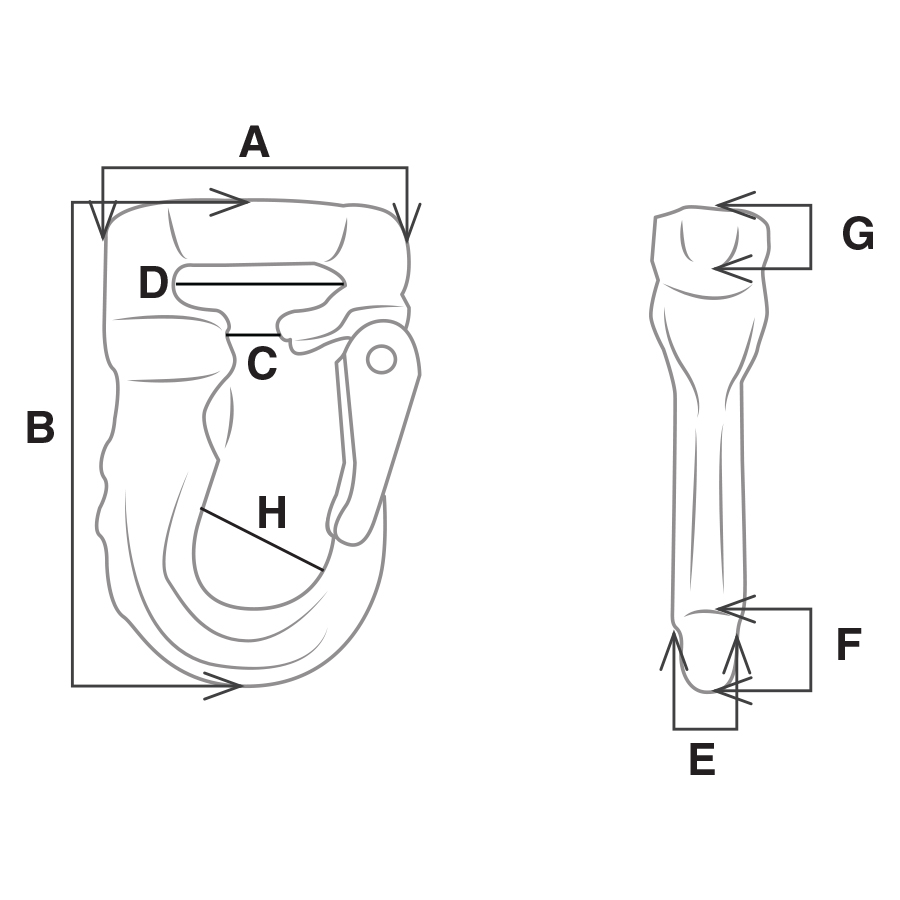

STOCK NUMBER COLORS DIMENSIONS WORKING LOAD LIMIT (LBS.) WEIGHT (LBS.)
A B C D E F G H
XE1HK Purple 3.07” 4.84” 0.47” 1.61” 0.67” 0.79” 0.63” 1.22” 2,600 1.61
XE2HK Green 3.58” 5.83” 0.75” 1.77” 0.83” 1.02” 0.67” 1.57” 5,300 2.65
XE3HK Yellow 4.45” 6.89” 0.83” 2.17” 0.98” 1.26” 0.98” 1.97” 8,400 4.85
XE5HK Red 5.21” 8.78” 1.57” 2.76” 1.42” 2.34” 1.42” 2.34” 13,200 9.9

STOCK NUMBER DIMENSIONS
A B C D E F G H
XE1HK 3.07” 4.84” 0.47” 1.61” 0.67” 0.79” 0.63” 1.22”
XE2HK 3.58” 5.83” 0.75” 1.77” 0.83” 1.02” 0.67” 1.57”
XE3HK 4.45” 6.89” 0.83” 2.17” 0.98” 1.26” 0.98” 1.97”
XE5HK 5.21” 8.78” 1.57” 2.76” 1.42” 2.34” 1.42” 2.34”

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
