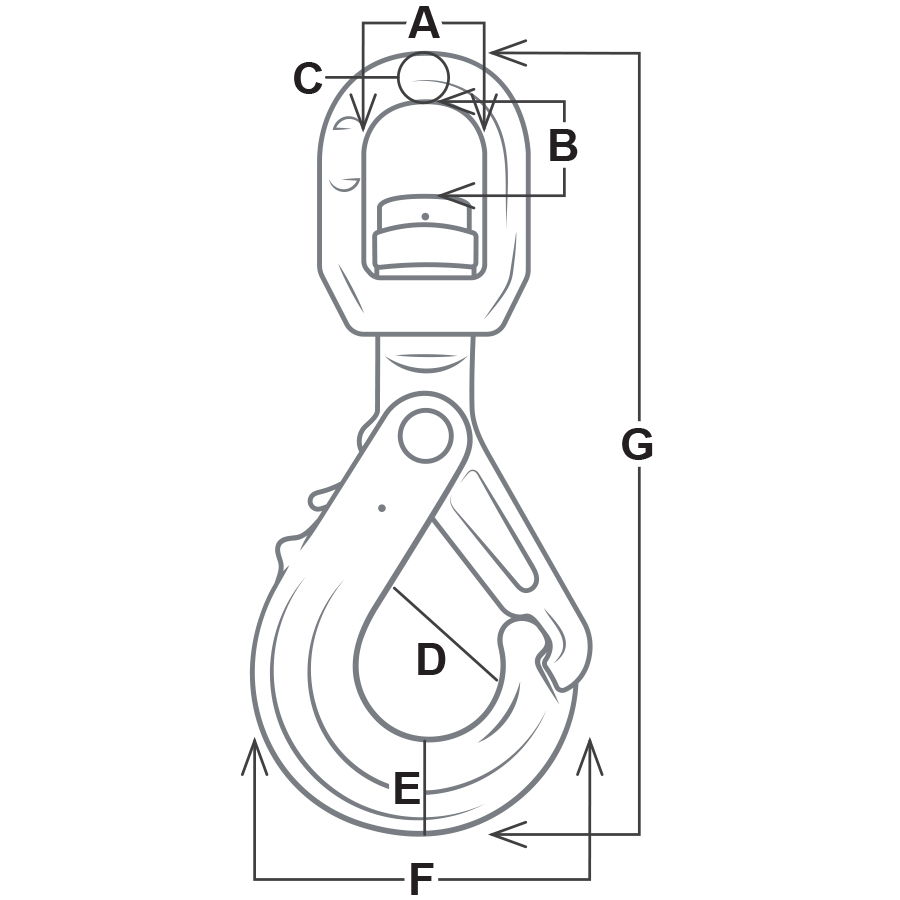

| STOCK NUMBER | SIZE | DIMENSIONS | Working load limit | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |||
| XSSL281-312PT | 9/32″ – 5/16” | 1.42” | 1.04” | 0.51” | 1.50” | 0.94” | 3.70” | 8.80” | 5,700 lbs. |
| XSSL375PT | 3/8″ | 1.65” | 1.38” | 0.63” | 1.88” | 1.23” | 4.50” | 10.45” | 8,800 lbs. |
| XSSL500PT | 1/2” | 1.89” | 1.89” | 0.73” | 2.11” | 1.59” | 5.52” | 12.99” | 15,000 lbs |
| XSSL625PT | 5/8” | 2.20” | 2.20” | 0.85” | 2.44” | 1.99” | 6.71” | 16.26” | 22,600 lbs. |
| STOCK NUMBER | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XSSL281-312PT | 1.42” | 1.04” | 0.51” | 1.50” | 0.94” | 3.70” | 8.80” |
| XSSL375PT | 1.65” | 1.38” | 0.63” | 1.88” | 1.23” | 4.50” | 10.45” |
| XSSL500PT | 1.89” | 1.89” | 0.73” | 2.11” | 1.59” | 5.52” | 12.99” |
| XSSL625PT | 2.20” | 2.20” | 0.85” | 2.44” | 1.99” | 6.71” | 16.26” |
• Notched tip to help avoid hook damage
• Forged directly into the hook

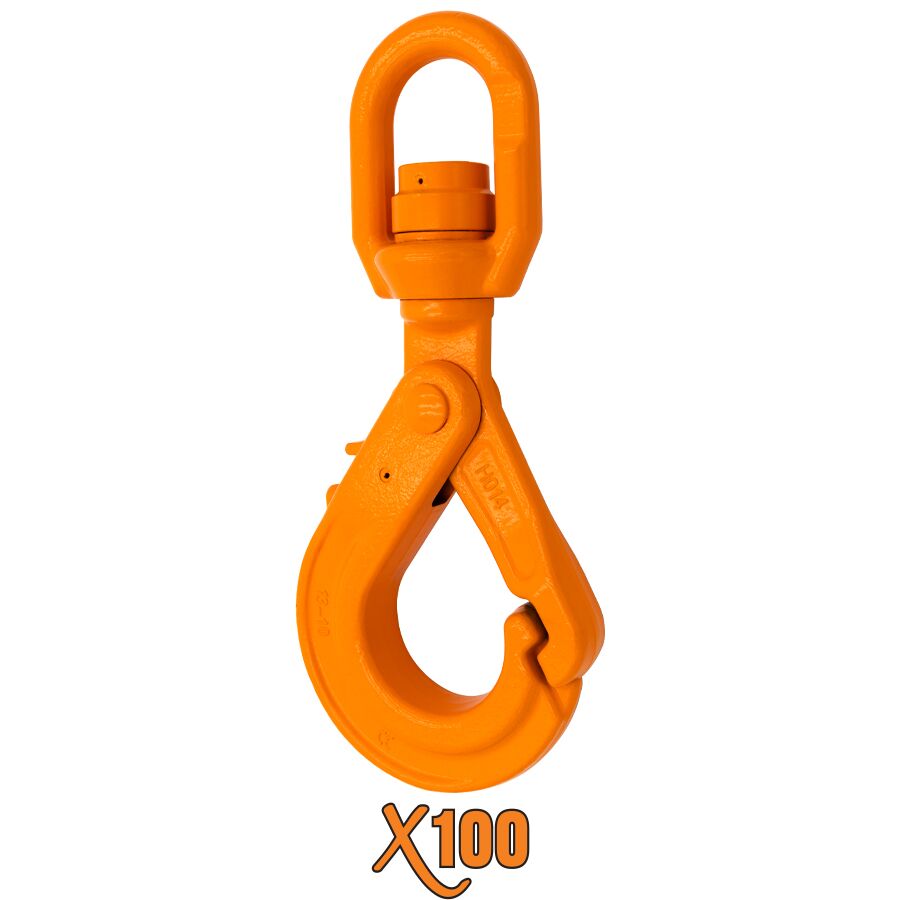

• Incorporated into all X100 self-locking hooks
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
