Elephant QBT Quick Beam Trolley

Elephant QBT Quick Beam Trolley
  • Capacity Range: 1t ~ 10t
  • Heavy Duty Quick Install Push Type Trolley
  • Simple Installation, No Special Tools Required
  • Fits both ‘S’ beams and ‘W’ beams
  • Low Profile Design
  • Corrosion Resistant Stainless Steel Plungers
  • Corrosion Resistant Double Sealed Bearings
  • Meets or Exceeds ASME B30.16 Where Applicable
  • Bearings and Plunger Assembly are Serviceable

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Capacity (lbs) 2,200 6,600 13,200 22,000
Rated Capacity (t) 1 3 6 10
Test Load (t) 1.27 3.83 7.66 12.77
Minimum Beam Radius (ft) 3.9 4.9 6.6 8.2

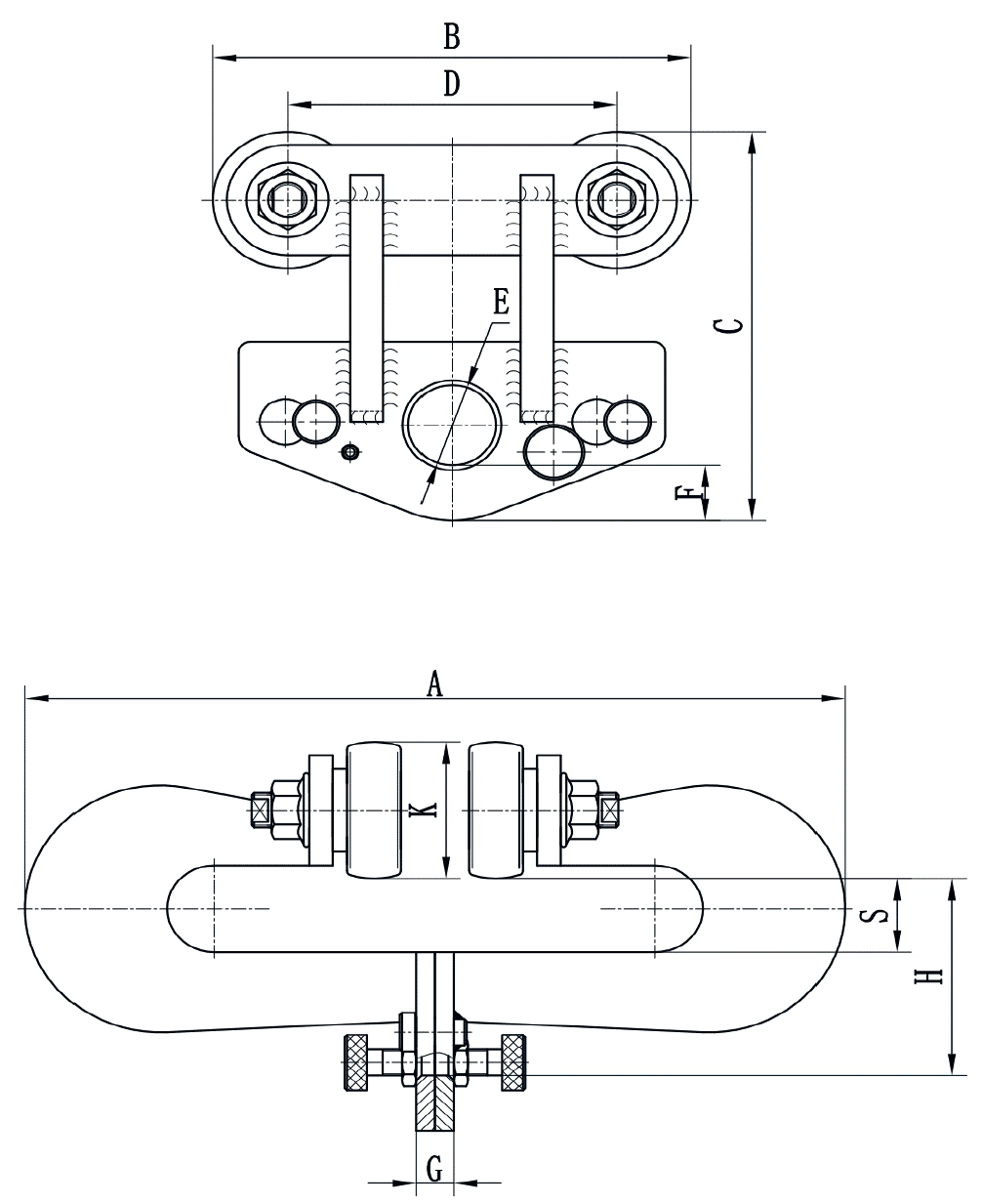

A 13.6 13.1 17.7 19.7
B 8.0 10.2 12.2 15.7
C 7.1 9.1 11.7 13.6
D 5.5 7.0 9.0 10.2
H 3.6 4.8 6.8 6.9
S 1.3 1.1 2.0 2.0
E 1.5 2.6 3.5 3.5
F 1.0 1.0 1.7 1.4
G 0.6 0.8 1.1 1.6
K 2.5 3.2 4.2 5.5
Beam Width Range (in) 2.8 ~ 7.99 2.9 ~ 7.99 4.0 ~ 10.0 5.0 ~ 10.0
Unit Weight (lbs) 21.4 37.0 67.0 156.5

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
