| STOCK NUMBER | SIZE | CHAIN SIZE | DIMENSIONS | WORKING LOAD LIMIT | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||
| XMLSA19 | 3/4″ | 9/32″ | .75″ | 2.77″ | 5.31″ | .51” | 1.54″ | 3.26″ | 11,200 lbs. |
| XMLSA22 | 7/8″ | 5/16″ | .91″ | 3.54″ | 6.30″ | .65″ | 1.54″ | 3.26″ | 15,200 lbs. |
| XMLSA26 | 1″ | 3/8″ | 1.06″ | 3.62″ | 7.21″ | .75″ | 2.15″ | 4.00″ | 26,000 lbs. |
| XMLSA32 | 1 1/4″ | 1/2″ | 1.30″ | 4.33″ | 8.78″ | .91″ | 2.26″ | 4.00″ | 39,000 lbs. |
| XMLSA38 | 1 1/2 | 5/8″ | 1.50″ | 5.51″ | 10.70″ | 1.06″ | 4.06″ | 7.20″ | 61,000 lbs. |

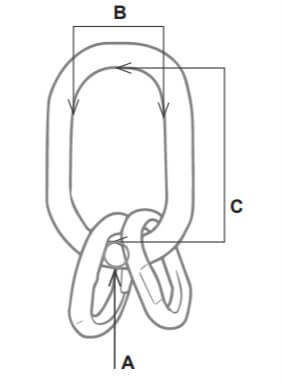

First drawing (A-C) indicates master link. Second drawing (D-F) indicated sublinks.
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
| DIMENSIONS | |||||
|---|---|---|---|---|---|
| A | B | C | D | E | F |
| .75” | 2.77” | 5.31” | .51” | 1.54” | 3.26” |
| .91” | 3.54” | 6.30” | .65″ | 1.54” | 3.26” |
| 1.06” | 3.62” | 7.21” | .75″ | 2.15” | 4.00” |
| 1/2” | 1.30” | 4.33” | 8.78” | .91″ | 2.26” |
| 1.50” | 5.51” | 10.70” | 1.06″ | 4.06” | 7.20” |
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
