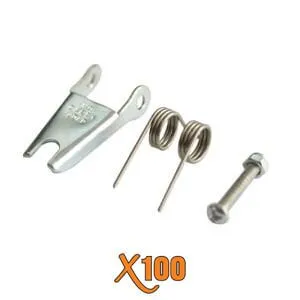

X100® Latch Kit for Fixed Eye Hoist Hook

X100® Latch Kit for Fixed Eye Hoist Hook
APPROVED FOR OVERHEAD LIFTING
  • Replacement Latch Kit for X100® Fixed Eye Hoist Hook

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
STOCK NUMBER SIZE (TON) WEIGHT (LBS.)
XEHH100LKi 1 0.025
XEHH150LKi 1.5 0.03
XEHH200LKi 2 0.035
XEHH300LKi 3 0.04
XEHH500LKi 5 0.065
XEHH700LKi 7 0.12
XEHH1100LKi 11 0.20

  1. Remove old damaged latch kit and discard
  2. Open the Latch Kit bag and remove and count the contents on a flat and level surface

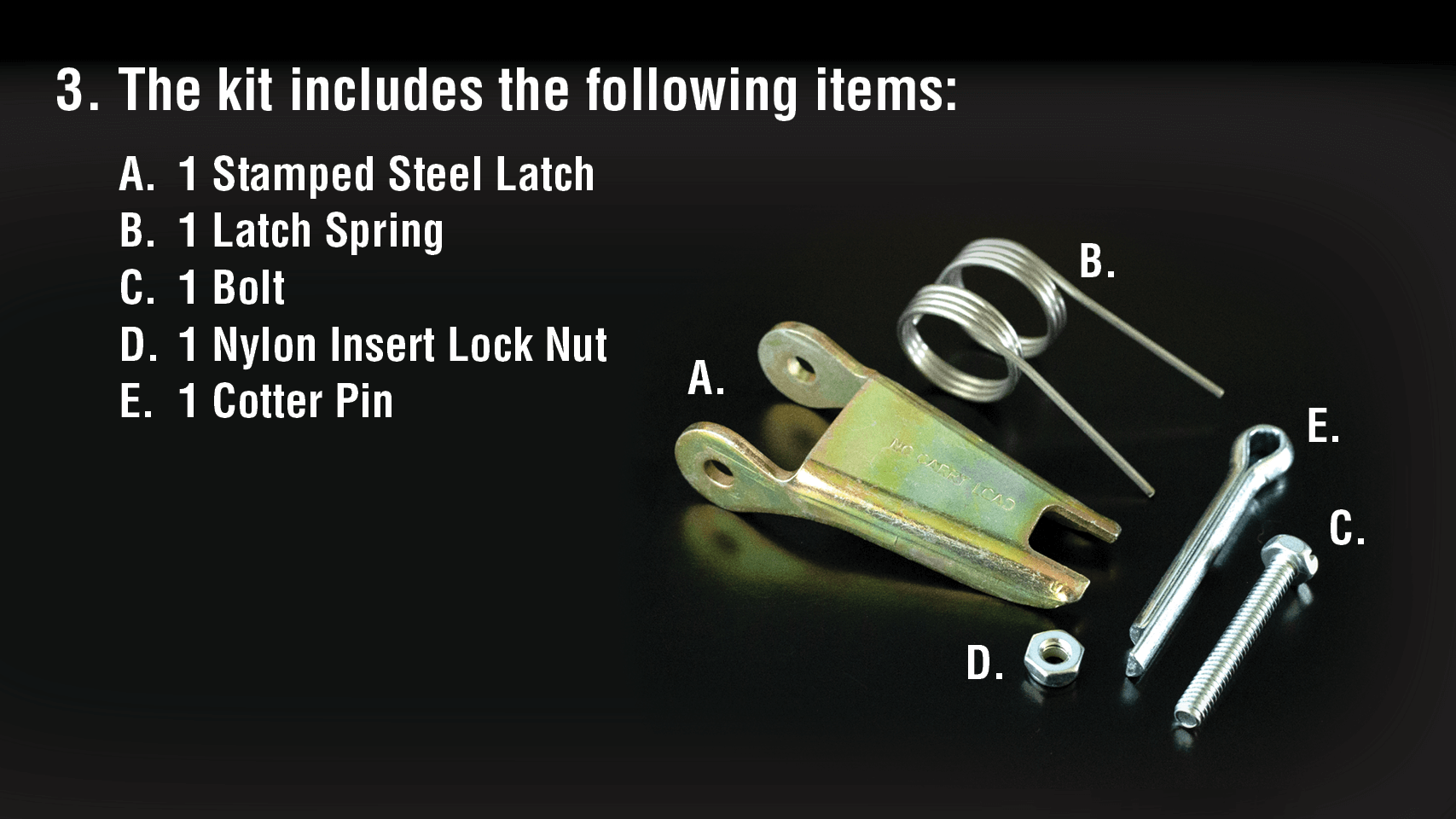

  3. There should be the following items enclosed:
    • 1 Stamped  Steel Latch
    • 1 Latch Spring
    • 1 Bolt
    • 1 Nylon Insert Lock Nut
    • 1 Cotter Pin
  4. Place spring onto the hook.
  5. Set Latch onto the spring and line up the holes of the latch, spring and hook.
  6. Set latch and spring in place with the latch tip on top of the hook.  Hold latch/spring continuously in place with one hand otherwise spring will eject the latch.
  7. Put bolt through one side of the latch/spring and all the way through the hook.  NOTE: While pushing bolt through the hook, the tip of the bolt should catch the other side of the spring, WITHOUT pushing through the other side of the latch. The depth of the bolt is important for the next step.
  8. Adjust and rotate the latch from top of hook into correct placement under the tip.
  9. Push bolt completely through the latch.
  10. Fasten the nylon insert lock nut onto the bolt until snug. NOTE: Do not over-tighten.
  11. IMPORTANT SAFETY WARNING: Latch kits are only designed as a method to hold other rigging products in place. DO NOT place any load on the latch kit. Failure to follow this warning could result in property damage, serious injury or death.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
