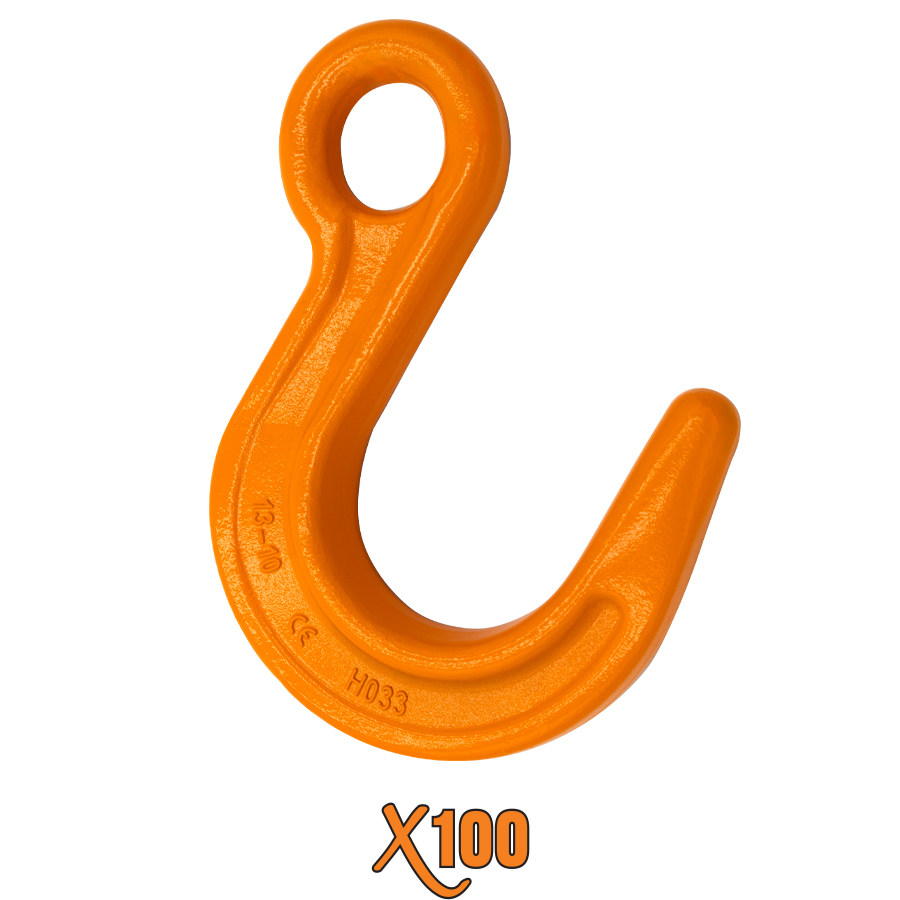

FOUNDRY HOOKS EYE TYPE

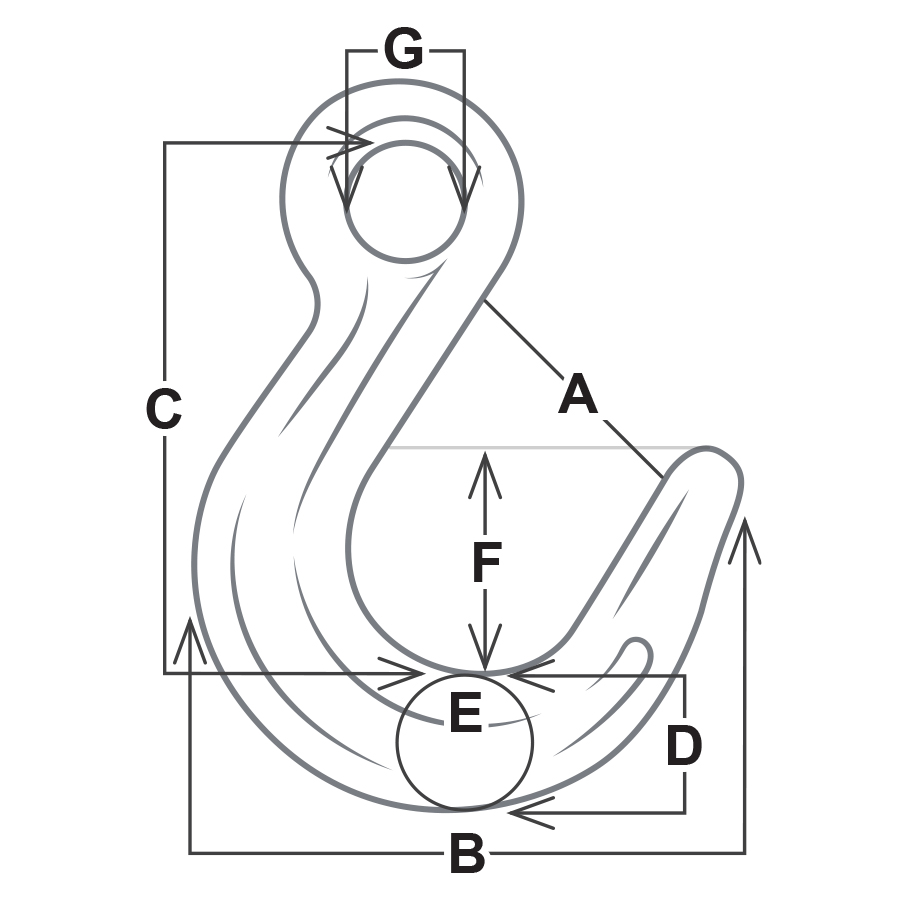

| STOCK NUMBER | SIZE | DIMENSIONS (IN) | WORKING LOAD LIMIT AT TIP (LBS.) | WORKING LOAD LIMIT AT BOWL (LBS.) | Weight (lbs.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |||||
| XEF281-312 | 9/32″-5/16″ | 2.200 | 4.900 | 4.860 | 1.350 | 0.760 | 1.570 | 0.940 | 2850 | 5700 | 2.00 |
| XEF375 | 3/8″ | 2.850 | 5.950 | 5.380 | 1.230 | 0.980 | 2.050 | 1.200 | 4400 | 8800 | 3.80 |
| XEF500 | 1/2″ | 3.500 | 7.220 | 6.650 | 1.630 | 1.350 | 2.380 | 1.710 | 7500 | 15000 | 7.20 |
| XEF625 | 5/8” | 4.300 | 8.560 | 7.810 | 2.020 | 1.590 | 3.040 | 1.950 | 11,300 | 22,600 | 12.3 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
