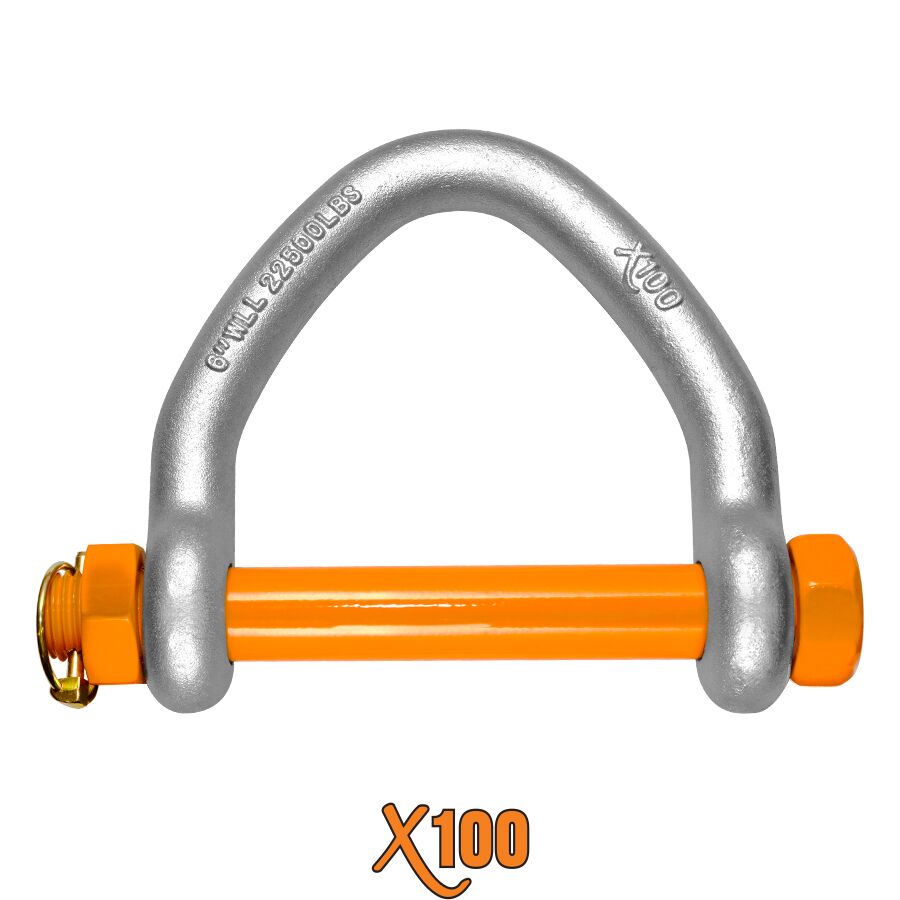

Approved for Overhead Lifting
100% Forged Alloy Steel
Quenched & Tempered

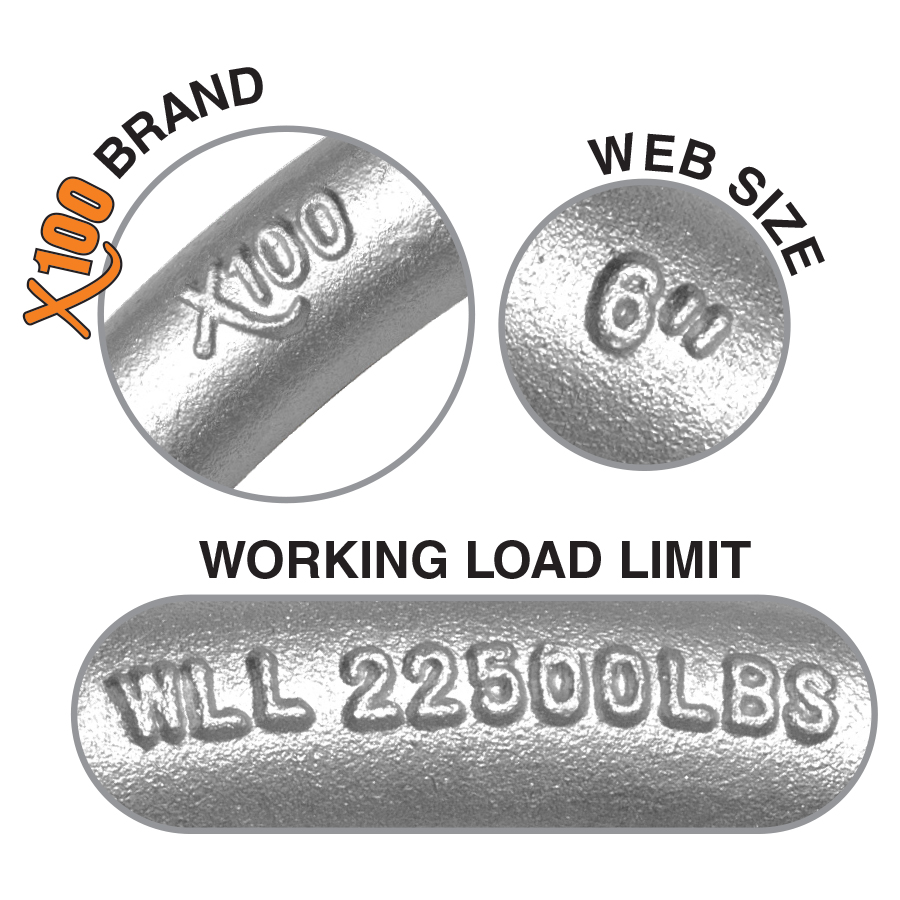

Markings: X100 Brand, Web Size, Working Load Limit
Hot Dip Galvanized Body and Power Coated BLAZE ORANGE Pin
Load Must Be Evenly Distributed Over Entire Pin to Achieve Full Working Load Limit
NEVER Side Load or Point Load Pins or Bodies
| STOCK NUMBER | WEB SIZE | PIN DIAMETER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) | QTY/BOX |
|---|---|---|---|---|---|
|
XWSB3 |
3″ |
0.88″ |
13,500 |
3.0 |
10 |
|
XWSB4 |
4″ |
0.87″ |
14,500 |
3.8 |
10 |
|
XWSB5 |
5″ |
1.01″ |
19,000 |
6.2 |
8 |
|
XWSB6 |
6″ |
1.25″ |
22,500 |
10.4 |
4 |
Ultimate load is 5 times the Working Load Limit.

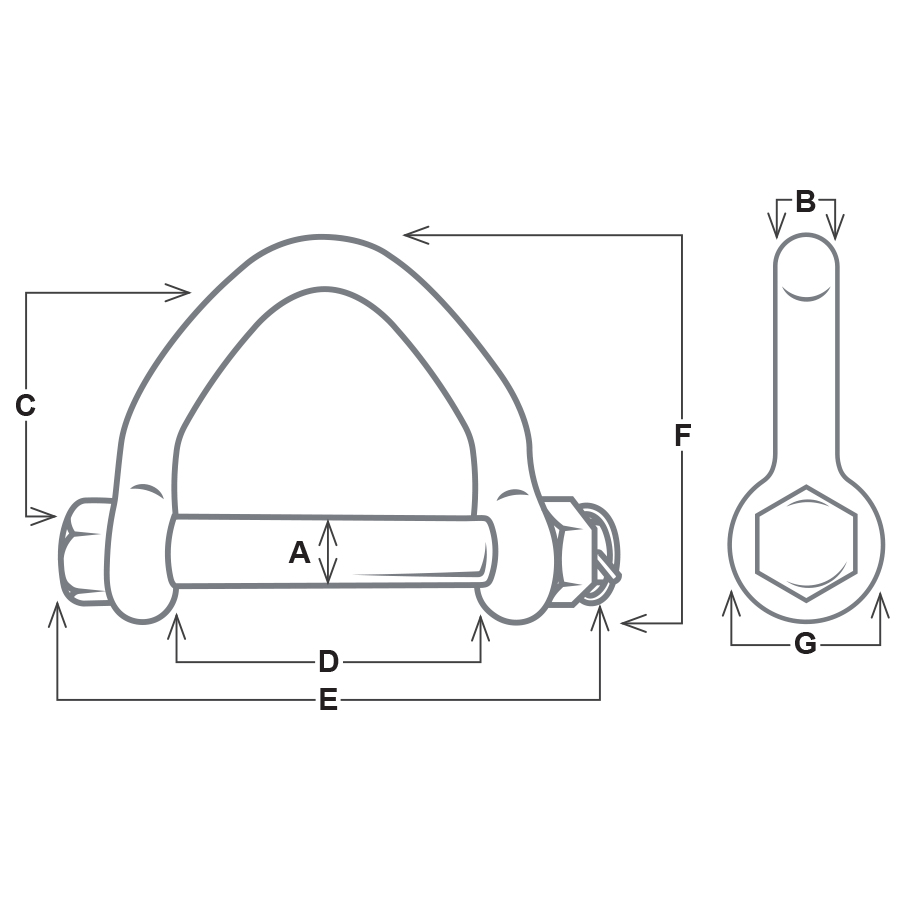

| DIMENSIONS (IN) | ||||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G |
|
0.88 |
0.80 |
3.26 |
3.05 |
6.16 |
5.44 |
1.95 |
|
0.87 |
0.85 |
3.57 |
3.93 |
7.26 |
5.82 |
1.83 |
|
1.01 |
1.03 |
4.31 |
5.07 |
8.75 |
6.74 |
2.41 |
|
1.25 |
1.16 |
5.20 |
6.12 |
10.36 |
7.98 |
2.66 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
