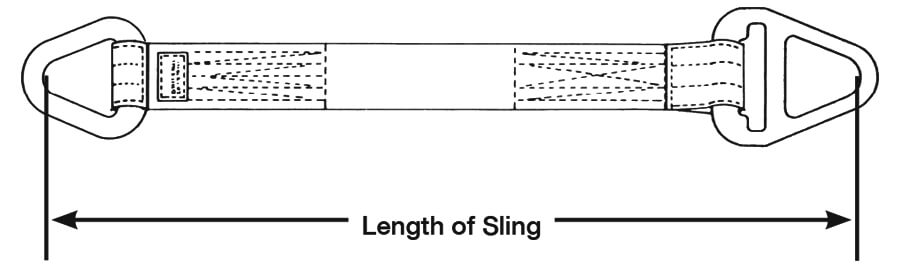

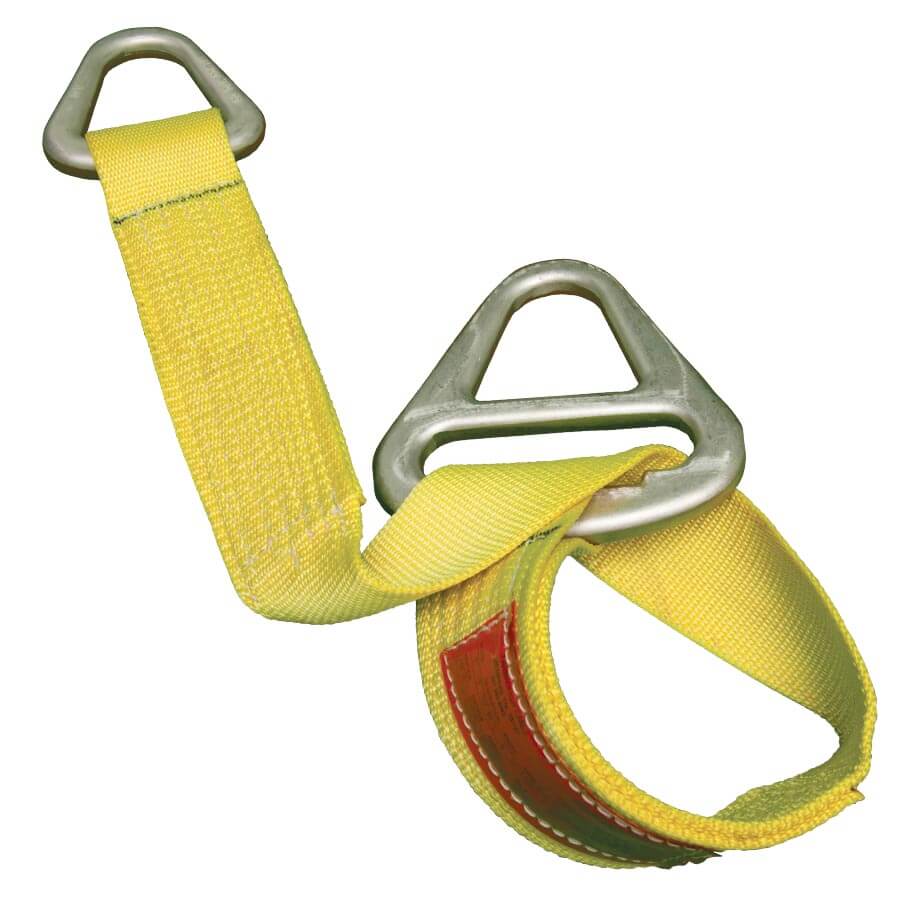

End fittings are steel or aluminum with a slip through design which provides good choke hitching. Also can be used in vertical or basket hitches.
Available in Nylon or Polyester Webbing.
| CERTEX Cat. Ref. No. | Triangle/Choker Type | Width | Vertical | Choker | Basket |
|---|---|---|---|---|---|
| CX07-0048 | CTC1-92 | 2” | 3100 | 2500 | 6200 |
| CX07-0050 | CTC2-92 | 2” | 6200 | 5000 | 12400 |
| CX07-0052 | CTC1-93 | 3” | 4700 | 3700 | 9400 |
| CX07-0054 | CTC2-93 | 3” | 8400 | 6700 | 16800 |
| CX07-0056 | CTC1-94 | 4” | 6200 | 5000 | 12400 |
| CX07-0058 | CTC2-94 | 4” | 11200 | 9000 | 22400 |
| CX07-0060 | CTC1-96 | 6” | 9300 | 7400 | 18600 |
| CX07-0062 | CTC2-96 | 6” | 16500 | 13200 | 33000 |
| CX07-0063 | CTC1-98 | 8” | 12400 | 9920 | 24800 |
| CX07-0064 | CTC2-98 | 8” | 22000 | 17600 | 44000 |
| CX07-0065 | CTC1-910 | 10” | 15500 | 12400 | 31000 |
| CX07-0066 | CTC2-910 | 10” | 27500 | 22000 | 55000 |
| CX07-0067 | CTC1-912 | 12” | 18500 | 14800 | 37000 |
| CX07-0068 | CTC2-912 | 12” | 32000 | 25600 | 64000 |
CAUTION: Do not use aluminum fittings where acids, alkalis or other corrosive agents are present.
The above capacities are for steel hardware only. Aluminum hardware may only be used with single ply web slings.
Capacities shown represent minimum values. For actual rated capacities consult your local CERTEX branch.
WARNING: Failure to read, understand and follow the use and inspection instructions could result in severe personal injury or death. Do not exceed rated capacities.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
