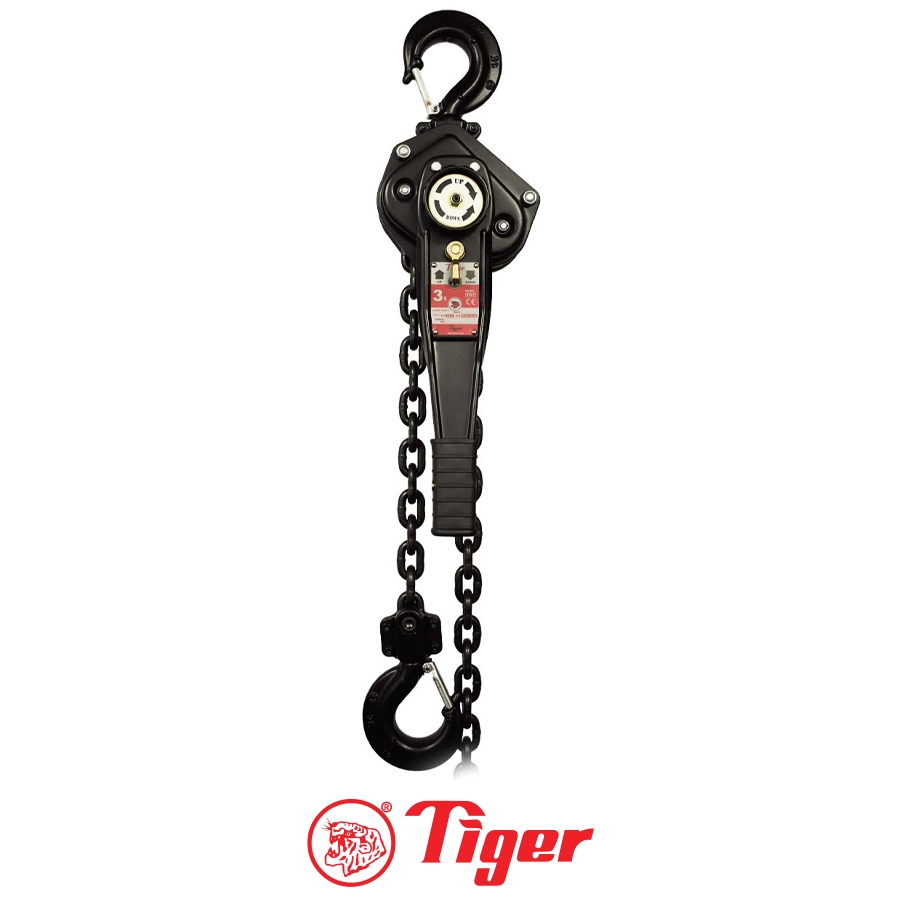

Tiger TRLH Industrial Lever Hoist

Tiger TRLH Industrial Lever Hoist
  • Range from 750kg – 6000kg
  • Meets or exceeds all international standards
  • High quality alloy calibrated load chain
  • 360-degree handle rotation
  • Easy single-hand “freewheeling” operation
  • Rugged steel body construction
  • Drop forged & heat-treated alloy hooks
  • Proof tested to 1.5 times rated capacity
  • Heavy duty chain end stop
  • Lightweight and portable
  • Safe reliable twin pawl mechanical brake
  • Guaranteed light load protection
  • Short stroke and low lever pulling effort
  • All Tiger lever hoist handles contain rubber which is free from phthalates

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Stock Number Capacity (tonne) Effort (kg) Load Chain Diameter (mm) Load Chain No. of Falls Standard HOL (m) Mass Kg @ Std HOL Mass for Extra Metre HOL (kg)
TRL-0075 0.75 22 6.3 1 1.5 7.5 0.9
TRL-0100 1.0 29 6.3 1 1.5 7.5 0.9
TRL-0150 1.5 26 7.1 1 1.5 10.0 1.1
TRL- 0200 2.0 35 7.1 1 1.5 10.5 1.1
TRL-0300 3.0 38 10.0 1 1.5 18.0 2.2
TRL-0600 6.0 40 10.0 2 1.5 29.5 4.3

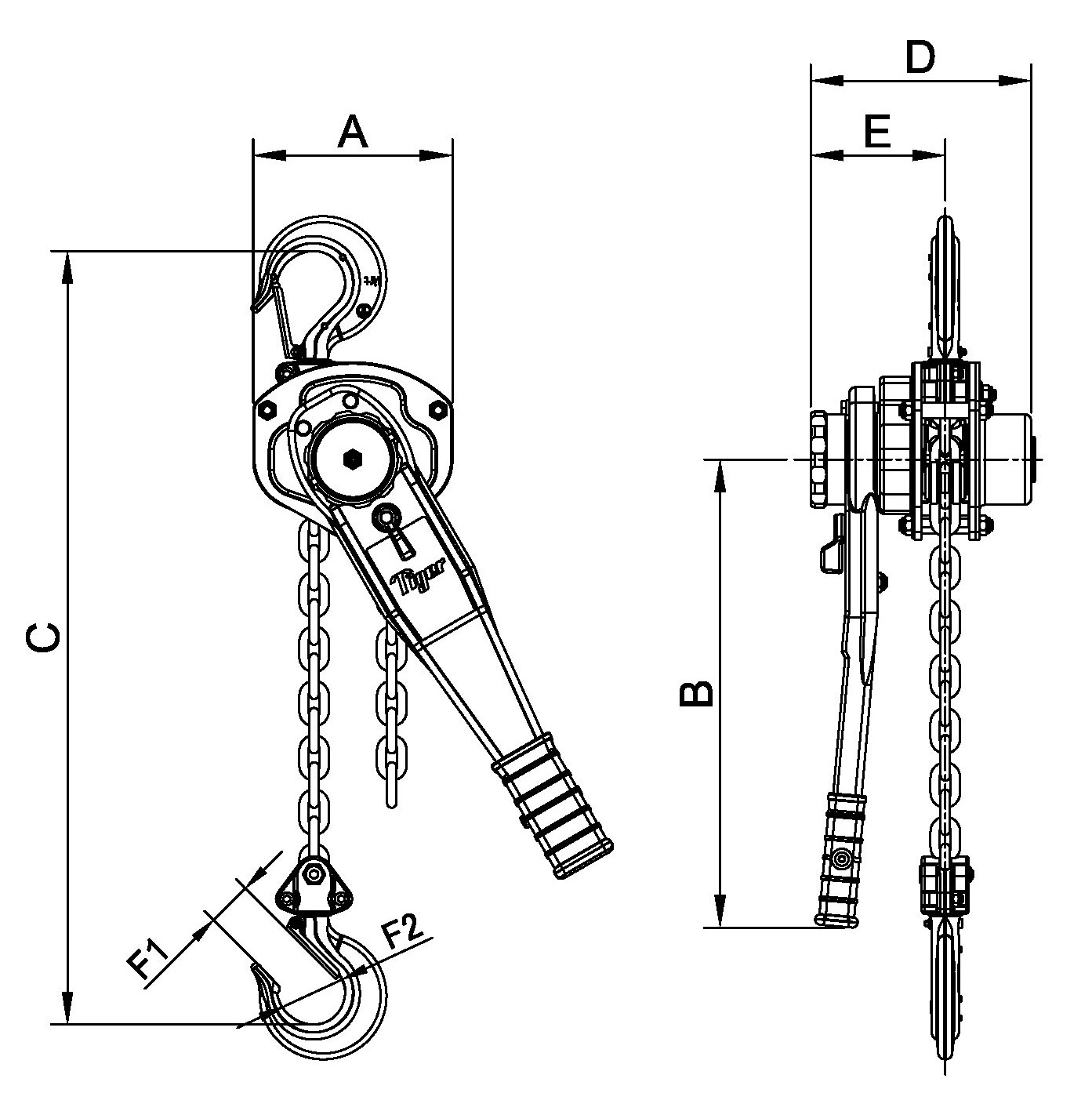

STOCK NUMBER DIMENSIONS
A B C D E F1 F2
TRL-0075 128 240 275 158 99 24 38
TRL-0100 128 240 295 158 99 28 45
TRL-0150 154 360 320 172 104 34 51
TRL- 0200 154 360 367 172 104 35 53
TRL-0300 182 360 400 195 108 36 56
TRL-0600 242 360 570 195 108 49 70

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
