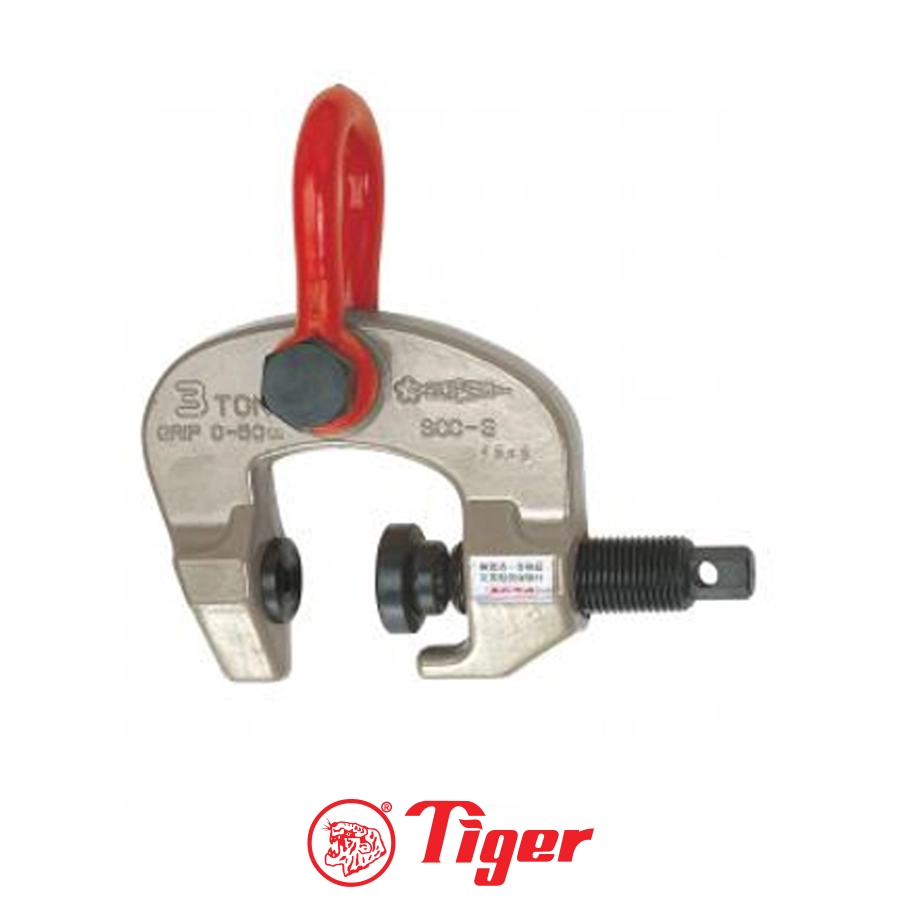

Tiger SCC Screw Cam Clamp

Tiger SCC Screw Cam Clamp
  • Universal clamp for lifting a large variety of different shaped steel; ranging from steel plates and structured steel to curved and spherical shaped steels
  • This omni-directional clamp can lift, hang, turn over, and pull steel structures
  • This clamp is equipped with a screw cam (spherical universal designed), which provides an extra powerful clamping force on the work piece at no load and even when vibrations occur during operation
  • When the clamp is under a load, the cam will tilt in accordance with the weight of the load. This tilting of the cam will increase the clamping force and cause the teeth of the cam and pad to bite harder into the work piece

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

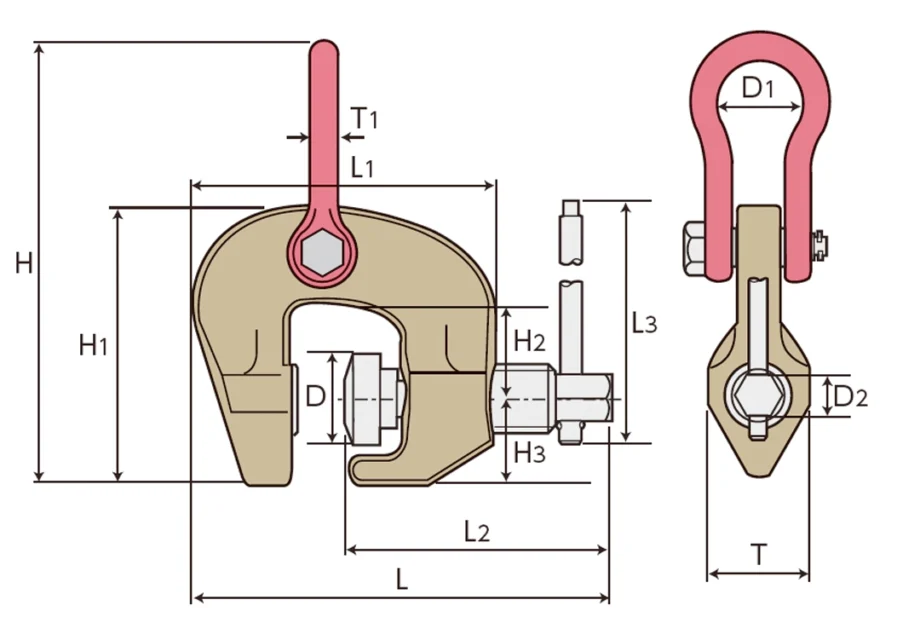

Stock Number Capacity (tonnes) Clamp Range (mm) Dimensions (mm) Net Weight (kg)
L (min) L1 L2 L3 H H1 H2 H3 D D1 D2 T T1
SCC-0030W 0.3 50-100 196 176 116 75 155 91 35 16 26 17 14 32 10 1.3
SCC-0050 0.5 0-28 123 104 89 60 113 76 26.5 16 26 17 14 30 10 0.8
SCC-0100 1.0 0-30 175 148 126 190 204 128 45 38 42 38 21 46 12 3.2
SCC-0100W 1.0 50-100 258 225 153 190 273 190 88 38 42 45 21 46 16 6.0
SCC-0150 1.5 0-32 187 154 135 190 229 143 52 39 42 45 21 46 16 4.0
SCC-0300 3.0 0-50 224 190 165 240 265 165 60 45 49 50 21 54 19 6.0
SCC-0300W 3.0 25-75 250 215 165 240 291 191 76 45 49 50 21 54 19 7.8
SCC-0600 6.0 0-75 291 255 215 240 365 214 76 54 63 80 21 69 31.5 18.0

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
