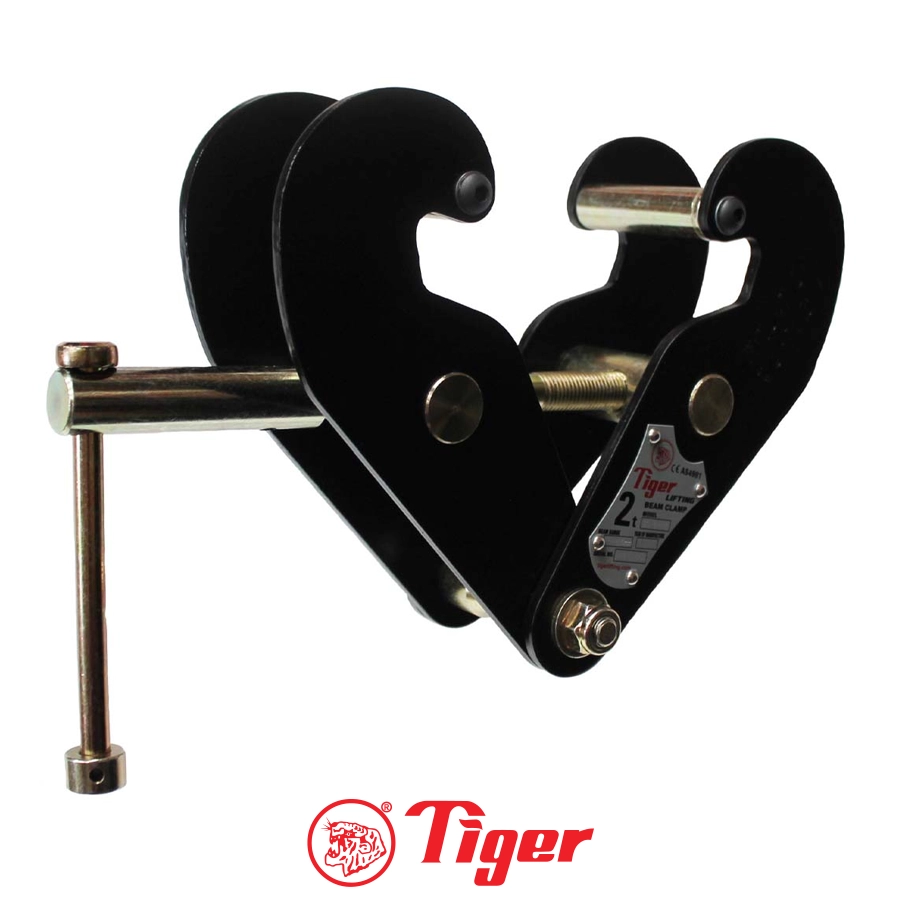

Tiger BC Beam Clamp

Tiger BC Beam Clamp
  • Range from 1.0t to 10.0t
  • Quick and versatile rigging point for hoisting equipment
  • Low headroom because of the built in anchor point
  • Multidirectional adjusting screw spindle for easy attachment and safe and secure grip
  • Wide Beam flange adjustment range
  • Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • 5:1 factor of safety – for straight pulling and lifting
  • Optional locking device

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

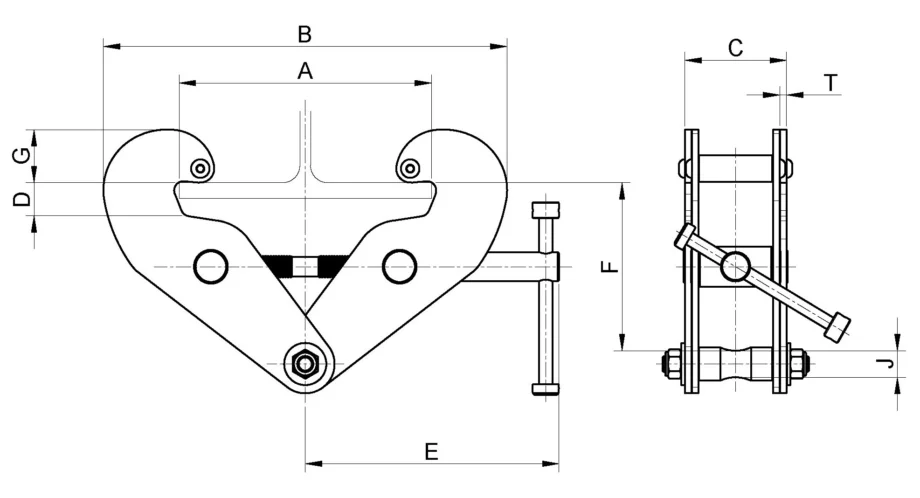

Stock Number Capacity (tonne) Dimensions (mm) Weight (kg)
A B C D E F G J T
BC-0100 1.0 75-210 182-328 77 24 195 144-117 52-38 20 5 4.0
BC-0200 2.0 75-210 182-328 85 24 195 144-117 52-38 20 6 4.5
BC-0300 3.0 75-305 214-460 107 25 250 224-179 58-40 22 8 8.0
BC-0500 5.0 75-305 214-460 121 25 250 224-175 58-40 28 10 10.0
BC-1000 10.0 120-350 295-510 182 30 300 222-171 71-54 43 16 24.5

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
