• Green Marking
• Common Applications: Equipment Transport, Heavy Hauling & Steel Coil Transport
• Design Factor 3:1

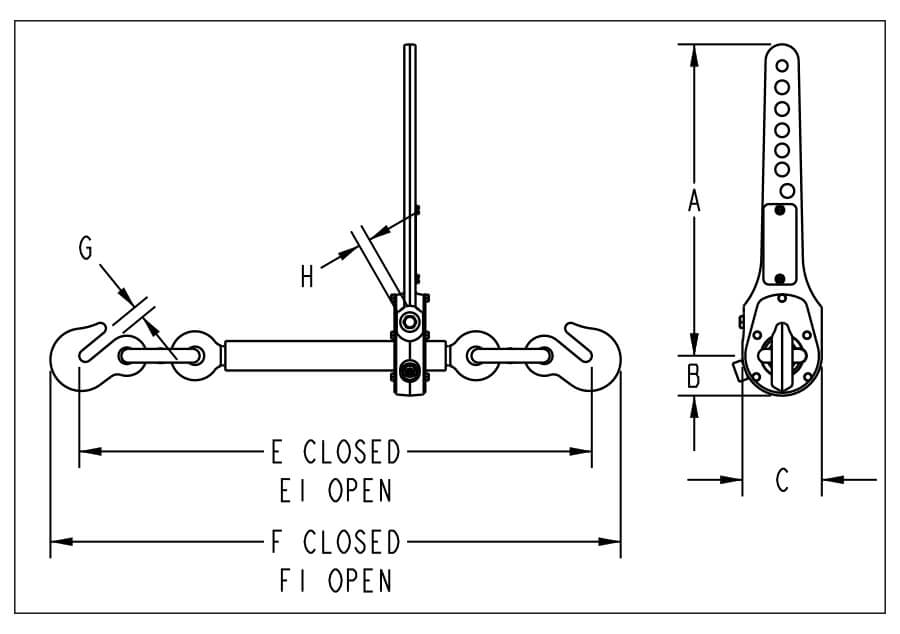

| Model | Stock No. | Min-Max Chain Size (in) | Working Load Limit (lb) | Proof Load (lb) | Weight Each (lb) | Dimensions (in) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | E1 | F | F1 | G | H | ||||||

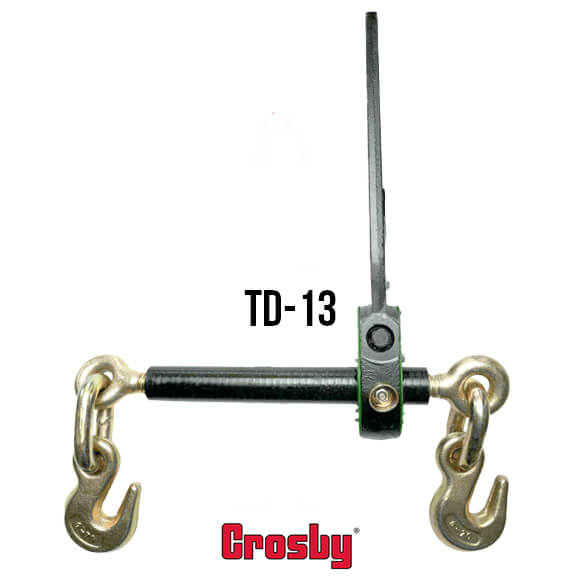

| TD-13 | 3674499 | 1/2-5/8 | 13,000 | 19,500 | 19.9 | 14.06 | 1.80 | 3.60 | 26.41 | 35.41 | 29.53 | 38.53 | 0.72 | 0.53 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
