Tiger SVC-E Vertical Lifting Clamp

Tiger SVC-E Vertical Lifting Clamp
  • Range from 0.3t to 2.0t
  • Lightweight clamp primarily designed for the vertical lifting of steel plates
  • The spring-loaded tightening lock mechanism assures a positive initial clamping force even at no load condition
  • The universal shackle allows the cam to generate a clamping force on the work piece no matter which direction it is pulled
  • The clamping force increases in proportion to the weight of the load
  • High-frequency quenching of die-forged special alloy steels gives greater durability to the cam

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

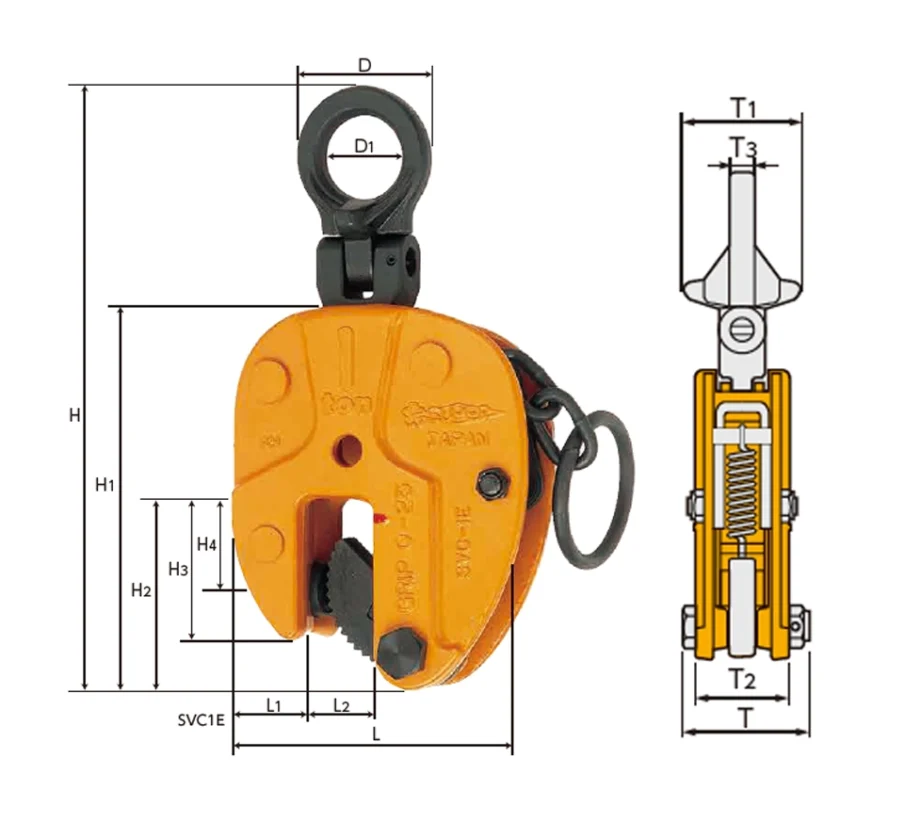

Stock Number Capacity (tonne) Clamp Range (mm) Dimensions (mm) Net Weight (kg)
L L1 L2 H (Max) H1 H2 H3 H4 D D1 T T1 T2 T3
SVC-0030-E 0.3 0-16 100 25 19 176 110 57 48 30 45 26 50 39 36 8 1.6
SVC-0050-E 0.5 0-19 110 28 22 204 125 67 53 34 52 30 55.5 45 40 10 2.1
SVC-0100-E 1.0 0-25 130 35 29 257 160 80 60 38 60 35 67.5 53 48 12 3.7
SVC-0150-E 1.5 0-28 150 39 33 290 174 88 67 42 76 45 76.5 67 55 14 5.5
SVC-0200-E 2.0 0-32 162 43 37 335 194 97 73 45 94 55 82 83 58 16 7.0
