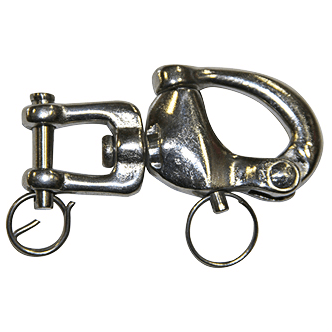

| JAW SIZE | STOCK NUMBER | OVERALL LENGTH | INSIDE WIDTH | WEIGHT/PIECE | WORKING LOAD LIMIT |
|---|---|---|---|---|---|
| 3/8″ | SNAP2476-1 | 2 3/4″ | 1/2″ | 0.15 | 800 |
| 1/2″ | SNAP2476-2 | 3 1/2″ | 5/8″ | 0.27 | 1,200 |
| 7/8″ | SNAP2476-3 | 5″ | 1″ | 0.90 | 1,800 |

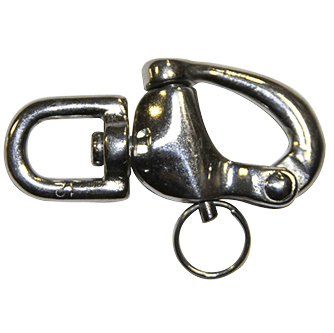

| JAW SIZE | STOCK NUMBER | OVERALL LENGTH | INSIDE WIDTH | WEIGHT/PIECE(LBS.) | WORKING LOAD LIMIT (LBS.) |
|---|---|---|---|---|---|
| 1/2″ | SNAP2482-1 | 2 3/4″ | 1/2″ | 0.15 | 1,000 |
| 5/8″ | SNAP2482-2 | 3 1/2″ | 3/4″ | .26 | 1,500 |
| 1″ | SNAP2482-3 | 5″ | 1″ | .75 | 2,100 |

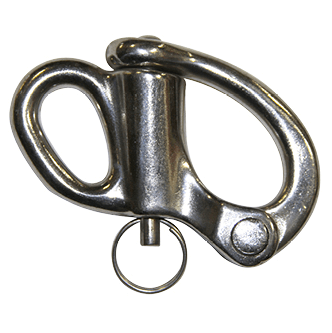

| EYE SIZE | STOCK NUMBER | OVERALL LENGTH | INSIDE WIDTH | WEIGHT/PIECE (LBS.) | WORKING LOAD LIMIT(LBS.) |
|---|---|---|---|---|---|
| 3/8″ | SNAP2483-1 | 2″ | 1/2″ | 0.10 | 1,000 |
| 1/2″ | SNAP2483-2 | 2 3/4″ | 3/4″ | 0.20 | 1,500 |
| 5/8″ | SNAP2483-3 | 4″ | 1″ | 0.52 | 2,100 |

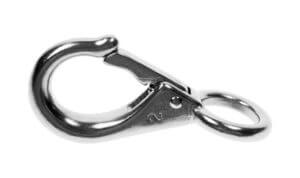

| EYE SIZE | STOCK NUMBER | OVERALL LENGTH | SNAP OPENING | WEIGHT/PIECE (LBS.) | WORKING LOAD LIMIT (LBS.) |
|---|---|---|---|---|---|
| 3/8″ | SNAP249-0 | 2 1/8″ | 7/32″ | 0.06 | 110 |
| 5/8″ | SNAP249-1 | 2 7/8″ | 7/16″ | 0.10 | 220 |
| 3/4″ | SNAP249-2 | 3 1/4″ | 1/2″ | 0.14 | 330 |
| 7/8″ | SNAP249-3 | 3 7/8″ | 9/16″ | 0.28 | 550 |

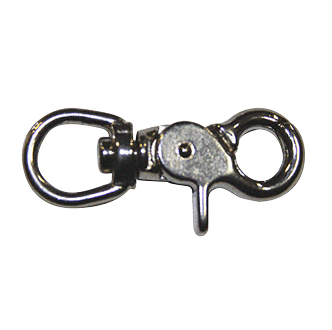

| EYE SIZE | STOCK NUMBER | OVERALL LENGTH | SNAP OPENING | WEIGHT/PIECE (LBS.) | WORKING LOAD LIMIT (LBS.) |
|---|---|---|---|---|---|
| 1/2″ | SNAP5013-500 | 2 11/16″ | 1/4″ | 0.11 | 200 |
| 5/8″ | SNAP5013-625 | 2 11/16″ | 1/4″ | 0.13 | 200 |
