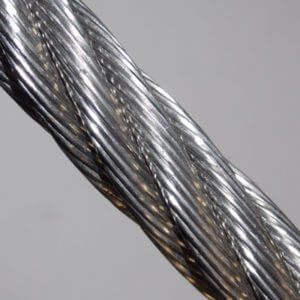

Stainless Steel Aircraft Cable

Stainless Steel Aircraft Cable
  • Available in Type 304 and Type 316
  • Standard reel lengths in stock: 250′, 500′, 1,000′ & 5,000′.
  • Made in accordance with Federal Specification RR-W-410D.

Type 304

SIZE STOCK NUMBER CONSTRUCTION WEIGHT/1,000′ BREAKING STRENGTH
1/16″ SSAC0627X7 7X7 7.5 lbs. 480 lbs.
3/32″ SSAC0937X7 7X7 16 lbs. 920 lbs.
1/8″ SSAC1257X7 7X7 28 lbs. 1,760 lbs.
1/8″ SSAC1257X19 7X19 29 lbs. 1,760 lbs.
3/16″ SSAC1877X19 7X19 65 lbs. 3,700 lbs.
1/4″ SSAC2507X19 7X19 110 lbs. 6,400 lbs.
5/16″ SSAC3127X19 7X19 173 lbs. 9,000 lbs.
3/8″ SSAC3757X19 7X19 243 lbs. 12,000 lbs.

Type 316

SIZE STOCK NUMBER CONSTRUCTION BREAK STRENGTH WEIGHT / FOOT
1/8″ SSAC1257x7T316 7X7 1,300 0.028
3/16″ SSAC187T316 7×19 2,900 0.065
1/4″ SSAC250T316 7×19 4,900 0.110
5/16″ SSAC312T316 7X19 7,600 0.173
3/8″ SSAC375T316 7X19 11,000 0.243

Also available in Type 316
Standard reel lengths in stock: 250′, 500′, 1,000′ & 5,000′.
*Made in accordance with Federal Specification RR-W-410Ds
Note: Breaking strength ratings are listed for comparison purposed only. Actual operating loads may vary, but should not exceed the recommended design factor of 20% of the product’s breaking strength.

7×19 & 7×7

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
