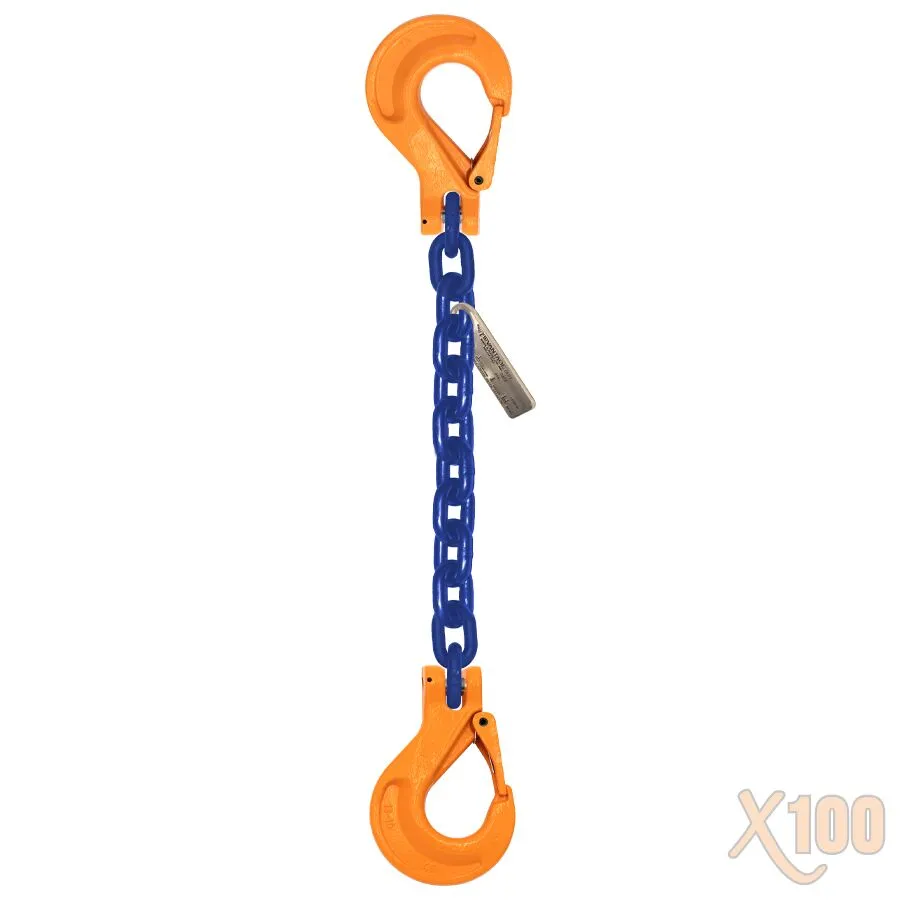

X100® Grade 100 Chain Sling – SSS

CHAIN SIZE SINGLE-LEG
AT 90° ANGLE
DOUBLE-LEG
AT 60° ANGLEline-2
DOUBLE-LEG
AT 45° ANGLEline-3
DOUBLE-LEG
AT 30° ANGLEline-4
TRIPLE/
QUADRUPLE
AT 60° ANGLEline-5
TRIPLE/
QUADRUPLE
AT 45° ANGLEline-6
TRIPLE/
QUADRUPLE
AT 30° ANGLEline-7
CHAIN SIZE
9/32” 4,300 7,400 6,100 4,300 11,200 9,100 6,400 9/32”
5/16” 5,700 9,900 8,100 5,700 14,800 12,100 8,500 5/16”
3/8” 8,800 15,200 12,400 8,800 22,900 18,700 13,200 3/8”
1/2” 15,000 26,000 21,200 15,000 39,000 31,800 22,500 1/2”
5/8” 22,600 39,100 32,000 22,600 58,700 47,900 33,900 5/8”
3/4” 35,300 61,100 49,900 35,300 91,700 74,900 53,000 3/4”

Capacities above are rated in pounds (lbs.).

1ST LETTER INDICATES: 2ND LETTER INDICATES: 3RD LETTER INDICATES:
S = Single-Leg O = Oblong Link O = Oblong Link
D = Double-Leg S = Sling Hook S = Sling Hook
T = Triple-Leg G = Grab Hook G = Grab Hook
Q = Quadruple-Leg F = Foundry Hook F = Foundry Hook

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
