Skookum Sheet Pile Shackle – No. 59A

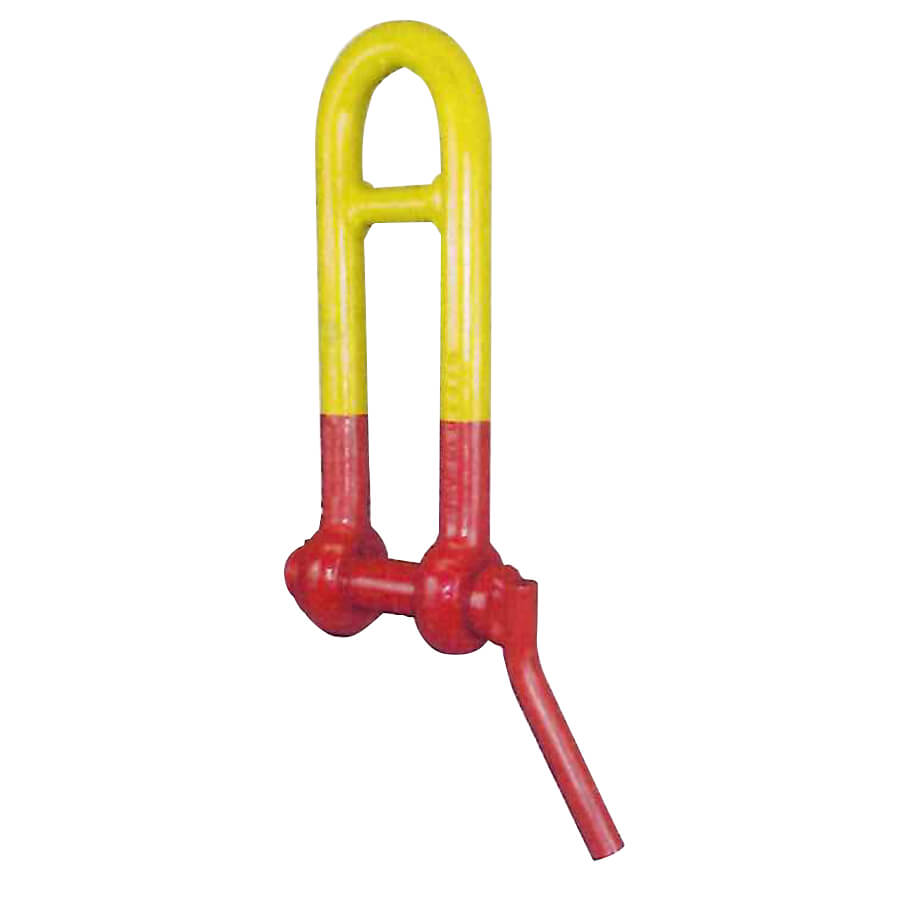

Skookum Sheet Pile Shackle - No. 59A
  • The No. 59A shackles were specifically designed for pulling sheet piling. They are equipped with a easy opening pin which will not detach and become lost. No tools are required.
  • Max opening with pin in open (unlocked) position.
  • Design factor is 5 to 1.
  • Replacement pins must replaced or repaired by Skookum in Hubbard, OR.

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

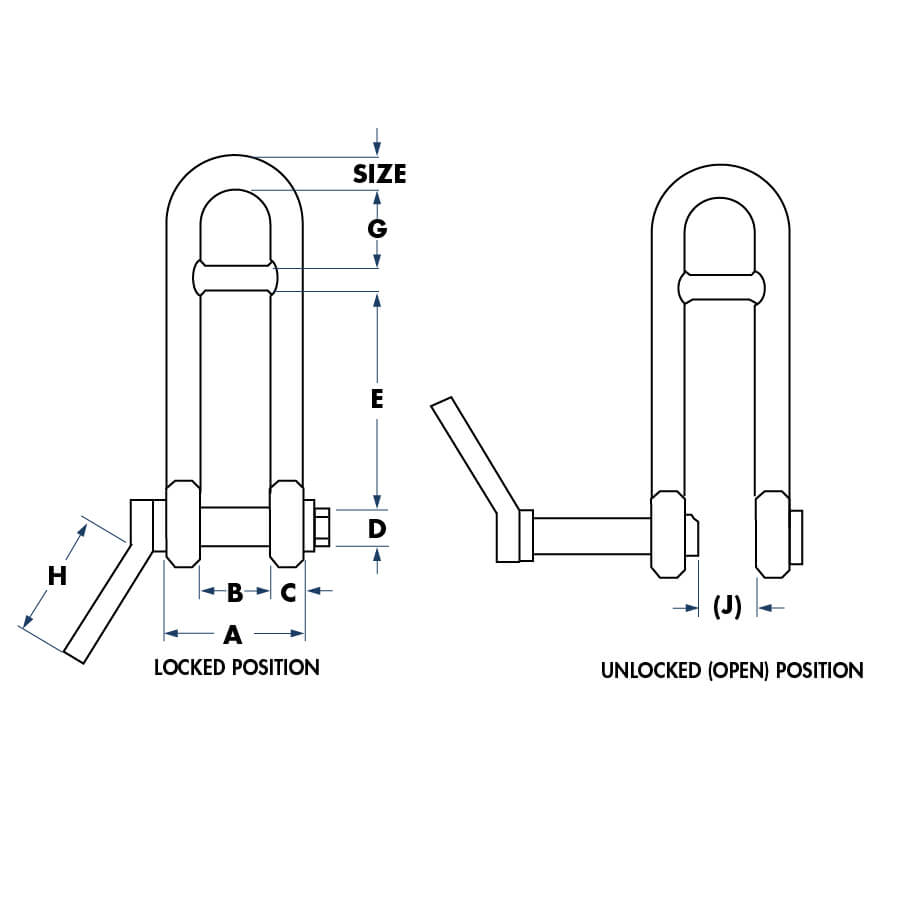

SIZE PART# WLL1
(TONS)		 WEIGHT
(LBS)		 OPENING2
J		 DIMENSIONS (IN)
A B C D E F G H
1 605908 8.00 10.00 1 3/4 4.25 2.25 1.00 1.13 7.00 ± .25 0.63 2.38 5.00
1 1/8 605909 10.00 13.50 1 7/8 4.50 2.50 1.00 1.25 8.00 ± .50 0.75 3.00 5.00
1 1/4 605910 12.00 18.00 2.00 5.25 2.75 1.25 1.38 9.00 ± .50 0.88 3.00 5.00
1 1/2 605912 17.00 29.00 2 1/8 6.25 3.00 1.50 1.63 10.00 ± .50 1.13 3.50 6.00
1 3/4 605914 24.00 45.00 2 1/2 7.00 3.50 1.75 2.00 11.00 ± .50 1.25 4.00 7.00
2 605916 30.00 63.00 3.00 8.00 4.00 2.00 2.25 12.00 ± .75 1.38 4.50 8.00

1Design factor is 5 to 1.
2Max opening with pin in open (unlocked) position.
Tons = 20001bs

WARNING: Misuse of rigging equipment can result in serious injury up to and including loss of life. Only competent trained professionals should use Skookum products.
Thoroughly inspect oil equipment before each and every use and never use damaged or worn products. Skookum disclaims any lability resulting from the misuse of its products. Please take a moment to carefully review our maintenance and warnings page for more information.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
