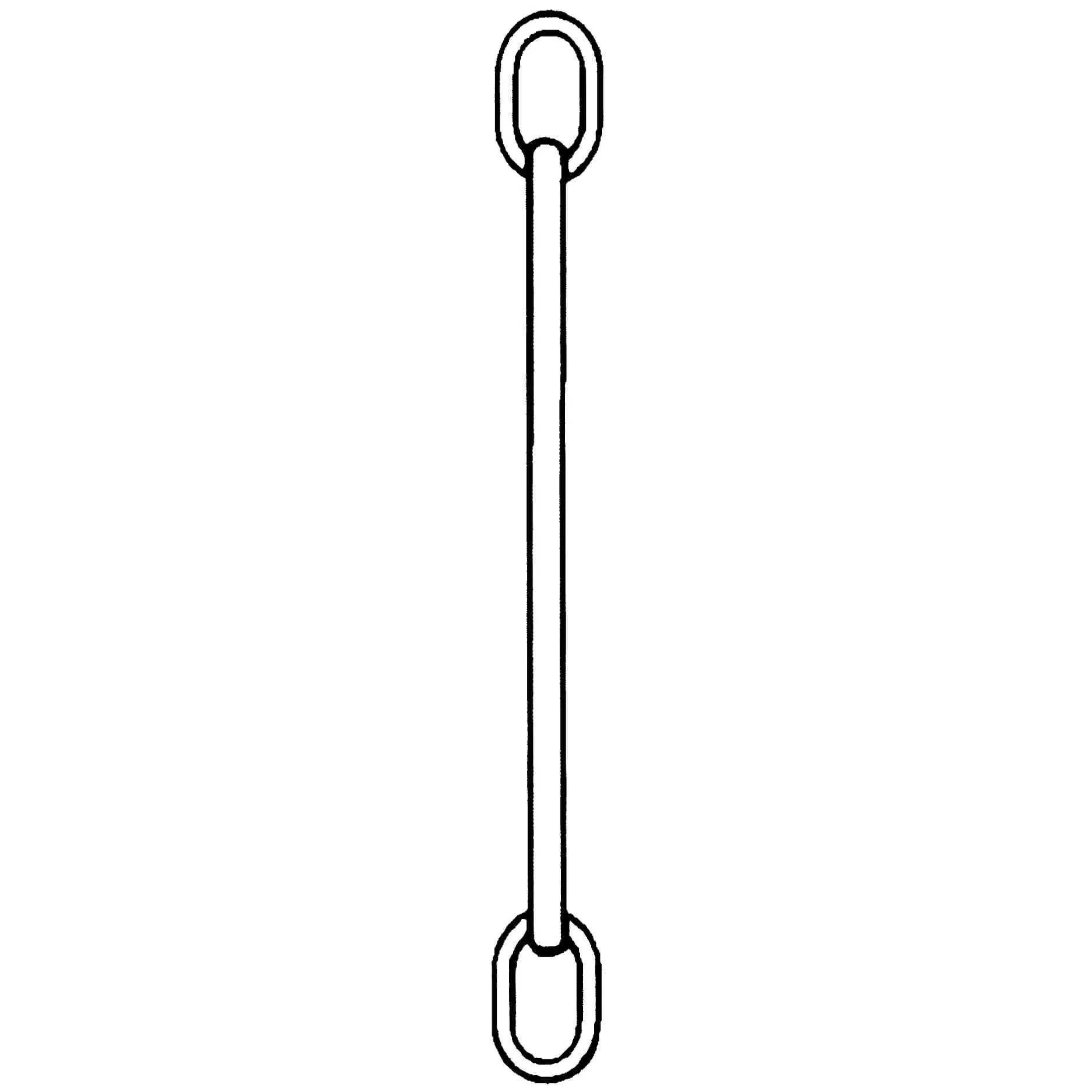

| Single Leg Slings | ||||
|---|---|---|---|---|
| CERTEX Cat. Ref. No. | Color | Oblong Link | Alloy Hook Size in Tons | Vertical Capacity in Lbs. |
| CX08-0075 | Purple | 1/2″ | 1 1/2 | 2,600 |
| CX08-0076 | Green | 5/8″ | 3 | 5,300 |
| CX08-0077 | Yellow | 3/4″ | 5 | 8,400 |
| CX08-0078 | Tan | 3/4″ | 7 | 10,600 |
| CX08-0079 | Red | 1″ | 11 | 13,200 |
| CX08-0080 | White | 1″ | 11 | 16,800 |
| CX08-0081 | Blue | 1 1/4″ | 15 | 21,200 |
Rated capacities are affected by angle of lift (roundsling to load angle) measured from the horizontal
when used with multi-legged roundslings or choker/basket hitches.
Larger capacities upon request.
