Crosby® SHUR-LOC® S-1317 Clevis Hook with Positive Locking Latch

Crosby® SHUR-LOC® S-1317 Clevis Hook with Positive Locking Latch

• Forged Alloy Steel — Quenched and Tempered.
• 25% stronger than Grade 80.
• Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
• Recessed trigger design is flush with the hook body, protecting the trigger from potential damage.
• Easy to operate with enlarged thumb access.
• Positive Lock Latch is SelfLocking when hook is loaded.
• Eye style is designed with “Engineered Flat” to connect to S-1325 chain coupler.
• Suitable for use with Grade 100 and Grade 80 chain.


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

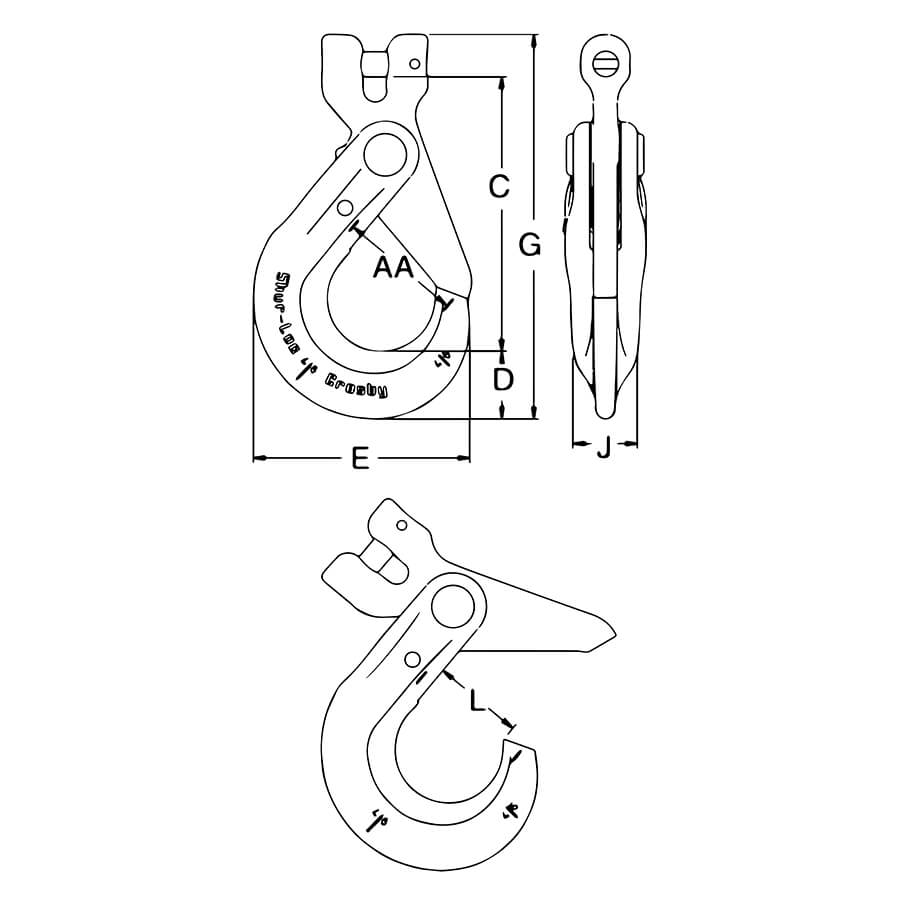

Chain Size Working Load Limit (lbs)* S-1317 Stock No. Weight Each (lbs.) Dimensions (in.)
(in.) (mm) C D E G J L AA
– 6 3200 1028991 0.77 3.44 0.79 2.60 4.75 0.63 1.16 1.50
1/4 7 4300 1029000 1.80 4.48 1.10 3.51 6.25 0.81 1.48 2.00
5/16 8 5700 1029009 1.80 4.47 1.10 3.51 6.25 0.81 1.48 2.00
3/8 10 8800 1029018 3.66 5.53 1.17 4.39 7.54 0.94 1.83 2.50
1/2 13 15000 1029027 6.80 6.81 1.67 5.49 9.52 1.16 2.22 3.00
5/8 16 22600 1029036 11.9 8.22 2.04 6.55 11.61 1.50 2.65 3.50
3/4 18-20 35300 1029071 15.0 9.42 2.22 7.76 13.21 2.03 3.52 –
7/8 22 42700 1029080 28.0 11.14 2.45 8.75 15.45 2.20 3.83 –
1 26 59700 1029089 49.5 12.56 3.21 9.87 18.44 2.68 4.09 –

* Minimum Ultimate Load is 4 times the Working Load Limit.



• The SHUR-LOC® hook, if properly installed and locked, can be used for personnel lifting applications and meets the intent of OSHA.
• Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B).
• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
• “Look for the Platinum Color – Crosby Grade 100 Alloy Products”.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
