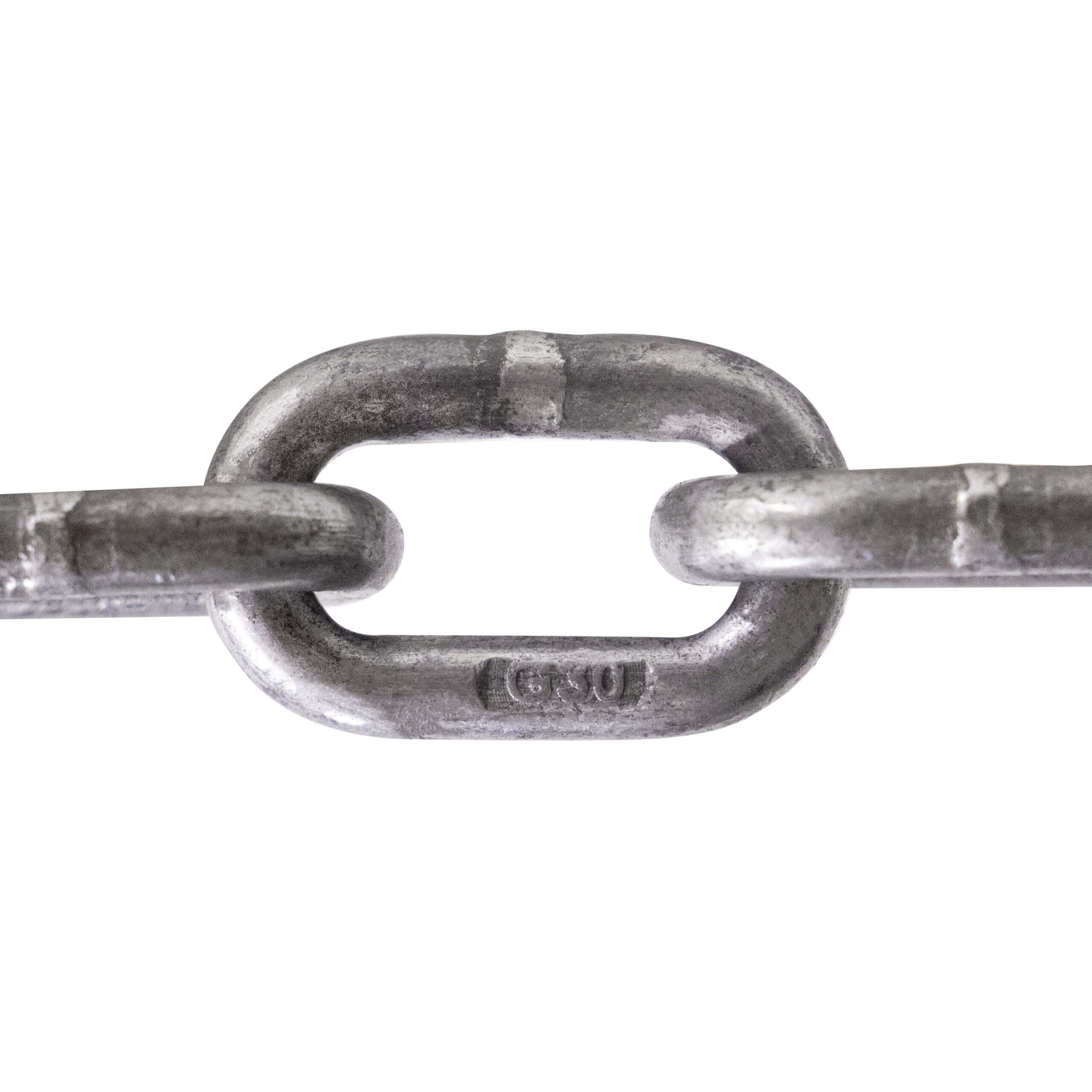

Self Colored Grade 30 Proof Coil Chain

Self Colored Grade 30 Proof Coil Chain
  • NOT suitable for overhead lifting
  • Available in drums and half drums
  • Available in dealer pails

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Dimensions and weights are approximate and subject to variations.
Note: Grade 30 proof coil chain, grade 43 high test chain, and grade 70 transport chain are NOT suitable for overhead lifting.

CERTEX
Cat. Ref. No.		 Trade
Size In
Inches		 Material Size Nominal Inside Link
Dimensions, Inches		 Maximum Length, 100 Links Inches Weight per 100 ft. In Pounds Working* Load Limit In Pounds
Inches Decimal Length Width
CX06-1256 3/16 13/64 .202 0.96 0.41 99 33 750
CX06-1257 1/4 17/64 .265 1.01 .48 104 63 1,250
CX06-1258 5/16 21/64 .327 1.11 .50 114 98 1,900
CX06-1259 3/8 25/64 .390 1.24 .62 128 144 2,650
CX06-1261 1/2 17/32 .531 1.51 .82 158 278 4,500
CX06-1263 5/8 21/32 .656 1.88 1.01 194 422 6,900
CX06-1264 3/4 25/32 .781 2.13 1.13 220 606 9,750

Dimensions and weights are approximate and subject to variations.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
