Samson Nylite™ Spool, Shield, Shackle – Class I Assembly with Nylon Spool

Samson Nylite™ Spool, Shield, Shackle - Class I Assembly with Nylon Spool

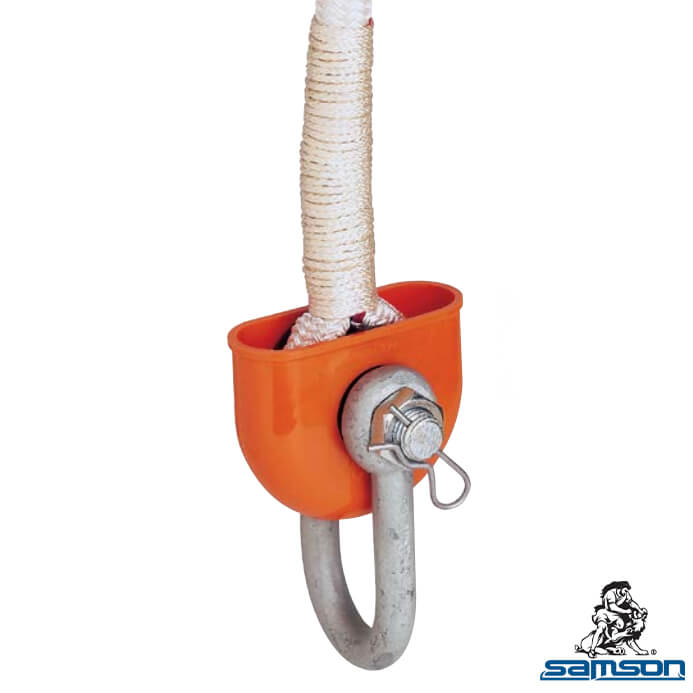

Easily installed into or removed from a premade soft eye. Nylite spool is only 1/7th the weight of steel. Connectors will not deform or rupture from repeated loadings. The shackle takes advantage of the high-strength Nylite connector and synthetic rope.

• Working loads listed are in tons (2,000 lb).
• Working loads, as given, are based on pin-bore relationship provided by use of the Nylite Shackle. When using a nonstandard pin, the working load as given DOES NOT APPLY.
• The HP aluminum spool is available for use with high-performance Class II ropes in sizes -1 through -5.
• Aluminum spools are not recommended for continuous use in submerged marine environments.
• All working load values are based on a 4:1 safety factor.
• Assembly ratings are based on the use of designated spools and shackles. Spools used in conjunction with other hardware are not rated by Samson.


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
NyliteTM Spool, Shield, & Shackle
CERTEX Cat. Ref. No. Size Rope Size Dia. Range Cir. Spool I.D. Pin* Dia. A B C D E F G
CX09-0015 1 3/8 -1/2 1 -1 /8 – 1 -1 /2 .46 .44 .88 1.08 1.11 2.41 .38 1.99 2.34
CX09-0016 2 9/16 – 5/8 1-3/4- 2 .58 .56 1.13 1.21 1.38 3.11 .50 2.38 2.88
CX09-0017 3 3/4- 13/16 2-1 /4 – 2-1 /2 .64 .63 1.38 1.61 1.77 3.54 .56 3.02 3.70
CX09-0018 4 7/8 – 1-1/16 2-3/4 – 3-1 /4 .89 .88 1.75 1.9 2.29 4.70 .75 3.79 4.71
CX09-0019 5 1-1 /8 – 1-5/16 3-1/2 – 4 1.02 1.00 2.13 2.15 2.85 5.55 .88 4.85 5.95
CX09-0020 6 1-1/2 – 1-3/4 4-1/2 – 5-1/2 1.54 1.50 2.63 3.14 3.8 8.25 1.37 6.30 7.85

* Sizes I through 5 are supplied with jam nuts and cotter pins. Larger sizes have cotter pins and standard nuts.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
