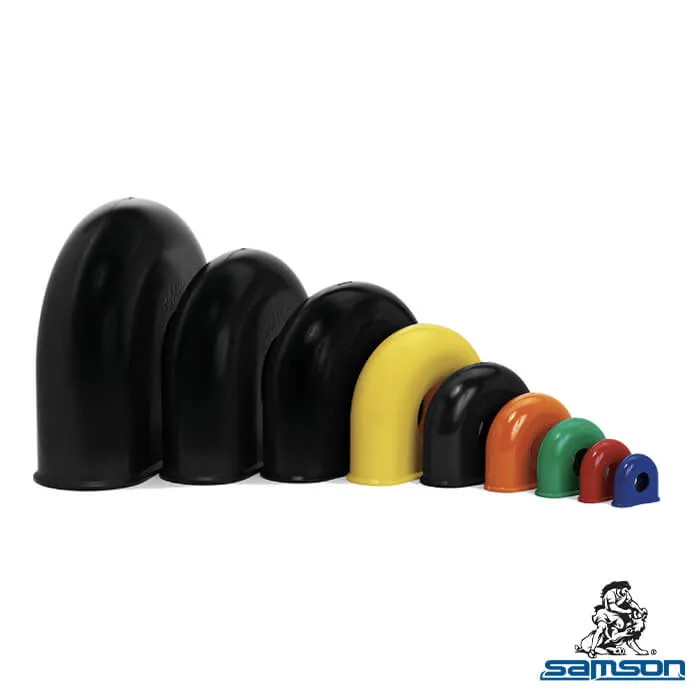

| Nylite™ Shields | |||
| Size | Color of Shield | Working Loads* (Tons**) | Minimum Eye Size |
| 1 | Blue | 1-1/8 | 2-3/16″ |
| 2 | Red | 1-5/8 | 2-3/4″ |
| 3 | Green | 2-1/2 | 3-3/4″ |
| 4 | Orange | 4-1/2 | 4-7/8″ |
| 5 | Black | 7-1/2 | 6-1 /8″ |
| 6 | Yellow | 12-1/2 | 7-5/8″ |
| 7 | Black | 20 | 9-3/4″ |
| 8 | Black | 25 | 11-1 /4″ |
| 9 | Black | 35 | 14″ |
*Working Loads, as given, are based on pin/ bore relationship provided by the use of a Samson shackle. When using a nonstandard pin, the Working Load as given DOES NOT APPLY.
**Working Load in tons (2,000 lbs.)
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
