Crosby® S-501 Open Swage Socket

Crosby® S-501 Open Swage Socket

Swage sockets incorporate a reduced machined area of the shank which is equivalent to the proper after Swage dimension. Before swaging, this provides for an obvious visual difference in the shank diameter. After swaging, a uniform shank diameter is created allowing for a QUIC-CHECK™ and permanent visual inspection opportunity.


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

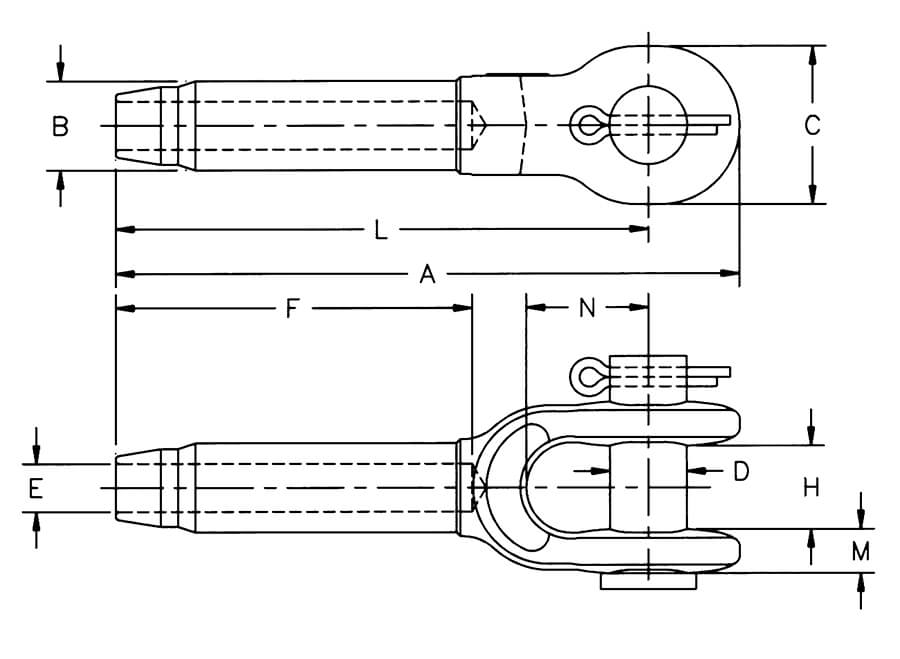

S-501 Open Socket Specifications
CERTEX Cat. Ref. No. Crosby Stock No. Rope Size (in.) Weight Each (lbs.) Before Swage Dimensions Max. After Swage Dim. (in.)
A B C D E F H L M N
CX04-0143 1039021 1/4 .52 4.81 .50 1.38 .69 .27 2.13 .69 4.00 .38 1.50 .46
CX04-0144 1039049 5/16 1.12 6.25 .77 1.62 .81 .34 3.19 .81 5.31 .47 1.75 .71
CX04-0145 1039067 3/8 1.30 6.25 .77 1.62 .81 .41 3.19 .81 5.31 .47 1.75 .71
CX04-0146 1039085 7/16 2.08 7.81 .98 2.00 1.00 .48 4.25 1.00 6.69 .56 2.00 .91
CX04-0147 1039101 1/2 2.08 7.81 .98 2.00 1.00 .55 4.25 1.00 6.69 .56 2.00 .9
CX04-0148 1039129 9/16 4.67 9.50 1.25 2.38 1.19 .61 5.31 1.25 8.13 .66 2.25 1.16
CX04-0149 1039147 5/8 4.51 9.50 1.25 2.38 1.19 .67 5.31 1.25 8.13 .66 2.25 1.16
CX04-0150 1039165 3/4 7.97 11.56 1.55 2.75 1.38 .80 6.38 1.50 10.00 .68 2.75 1.42
CX04-0151 1039183 7/8 11.52 13.41 1.70 3.13 1.62 .94 7.44 1.75 11.63 .75 3.25 1.55
CX04-0152 1039209 1 17.80 15.47 1.98 3.69 2.00 1.06 8.50 2.00 13.38 .88 3.75 1.80
CX04-0153 1039227 1-1/8 25.25 17.31 2.25 4.06 2.25 1.19 9.56 2.25 15.00 1.00 4.25 2.05
CX04-0154 1039245 1-1/4 35.56 19.06 2.53 4.50 2.50 1.33 10.63 2.50 16.50 1.13 4.75 2.30
CX04-0155 1039263 1-3/8 43.75 20.94 2.80 5.00 2.50 1.45 11.69 2.50 18.13 1.13 5.25 2.56
CX04-0156 1039281 1-1/2 58.50 22.88 3.08 5.50 2.75 1.58 12.75 3.00 19.75 1.19 5.75 2.81
CX04-0157 1039307 1-3/4 88.75 26.63 3.39 6.69 3.50 1.86 14.88 3.50 23.00 1.56 6.75 3.06
CX04-0158 1039767 2 146.25 31.44 3.94 8.00 3.75 2.11 17.00 4.00 26.88 1.56 8.00 3.56

* Maximum Proof Load shall not exceed 40% of XXIP rope catalog breaking strength.

Wire Rope Terminations Information

Designed to quickly determine whether the socket has been through the swaging operation and assist in field inspections, it does not eliminate the need to perform standard production inspections which include gauging for the proper after swage dimensions or proof loading.

U.S. Patent 5,152,630 and foreign equivalents.

• Forged from special bar quality carbon steel, suitable for cold forming.
• Hardness controlled by spheroidize annealing.
• Swage Socket terminations have an efficiency rating of 100% based on the catalog strength of wire rope.
• Stamp for identification after swaging without concern for fractures (as per directions in National Swaging Brochure).

NOTE: S-501 Swage Sockets are recommended for use with 6 x 19 or 6 x 37,
IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC wire rope.In accordance with
ANSI B30.9, all slings terminated with swage sockets shall be proof loaded.*
