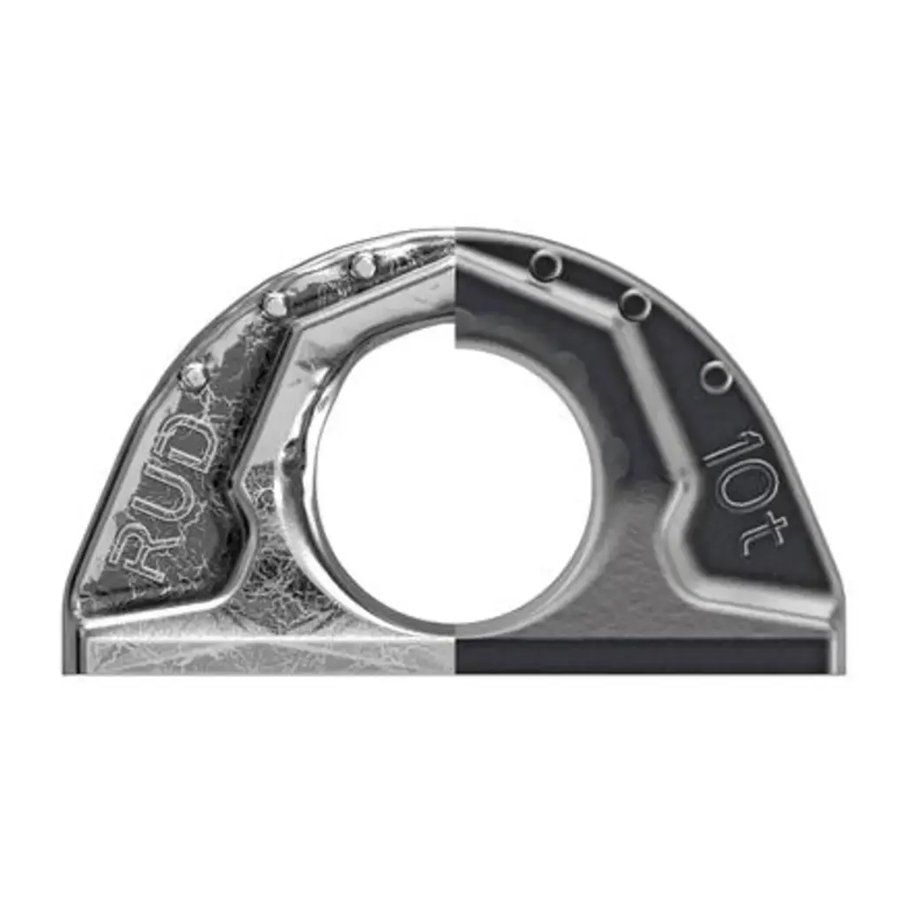

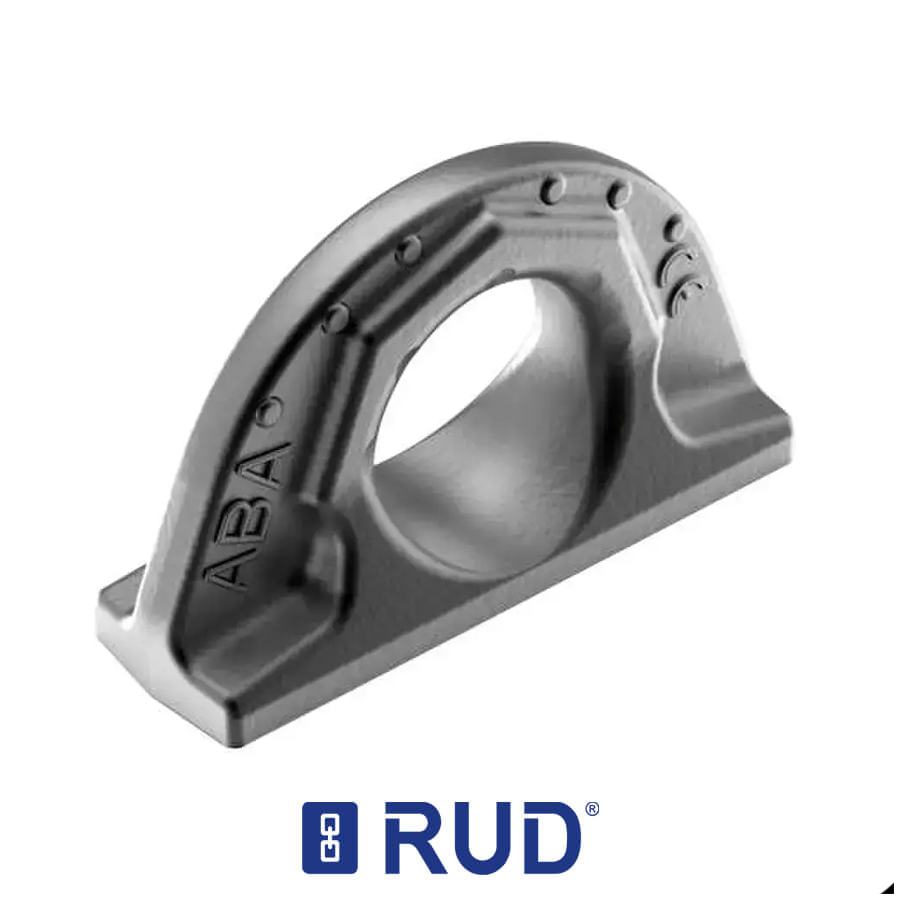

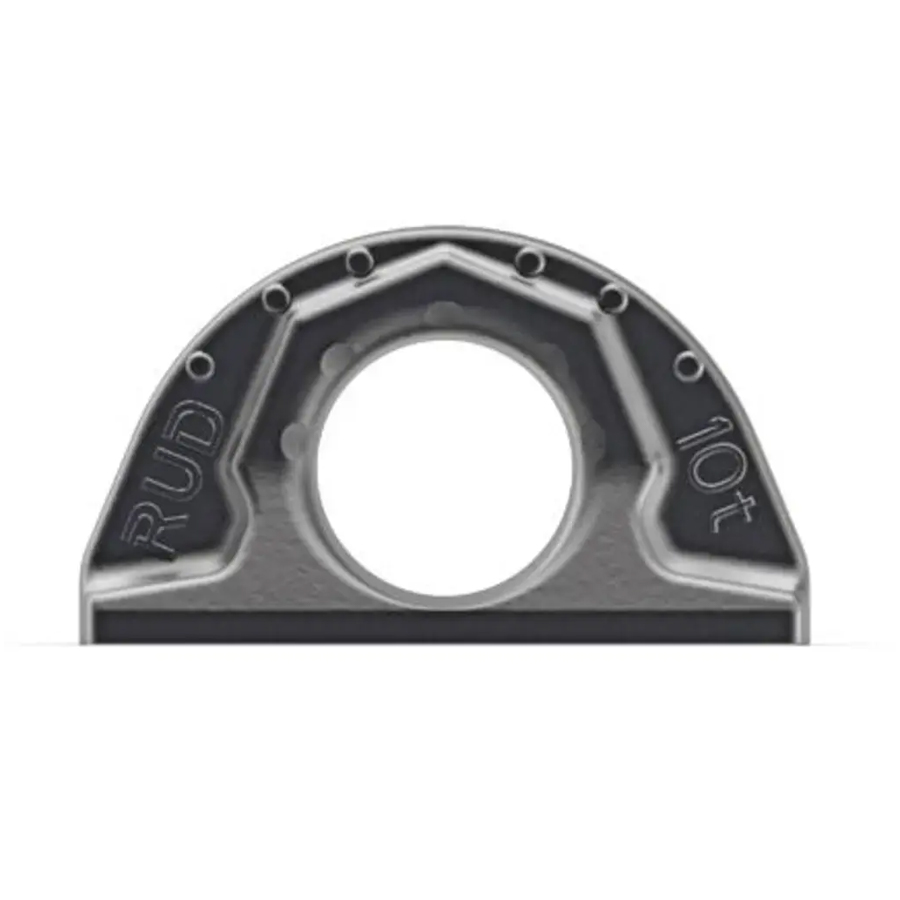

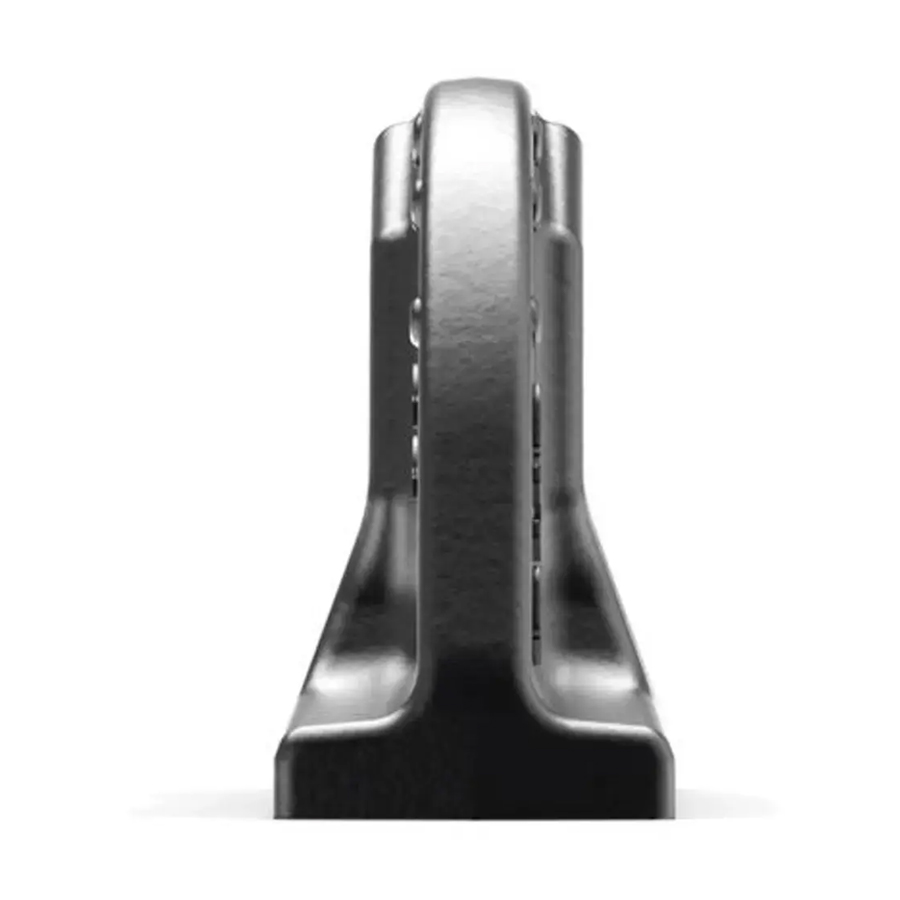

RUD W-ABA Lifting Point

RUD W-ABA Lifting Point

Motorized Rotating Crane Hooks make rotating loads on the crane hook easy for the operator. Each unit is custom designed per your requirements.

Product Features:

  • Large WLL range 0.8 t – 31.5 t
  • Forged from a single piece, no rattling noise or shaking even with strong vibrations or shock loads, easy hinging of the lifting means possible
  • The weld arrangement (circular fillet weld) fulfils the requirements of DIN EN 1090, i
  • e. the endless weld seam prevents the formation of contact/crevice corrosion (thus suitable for outdoor constructions)
  • Wear markings for easy determination of wear

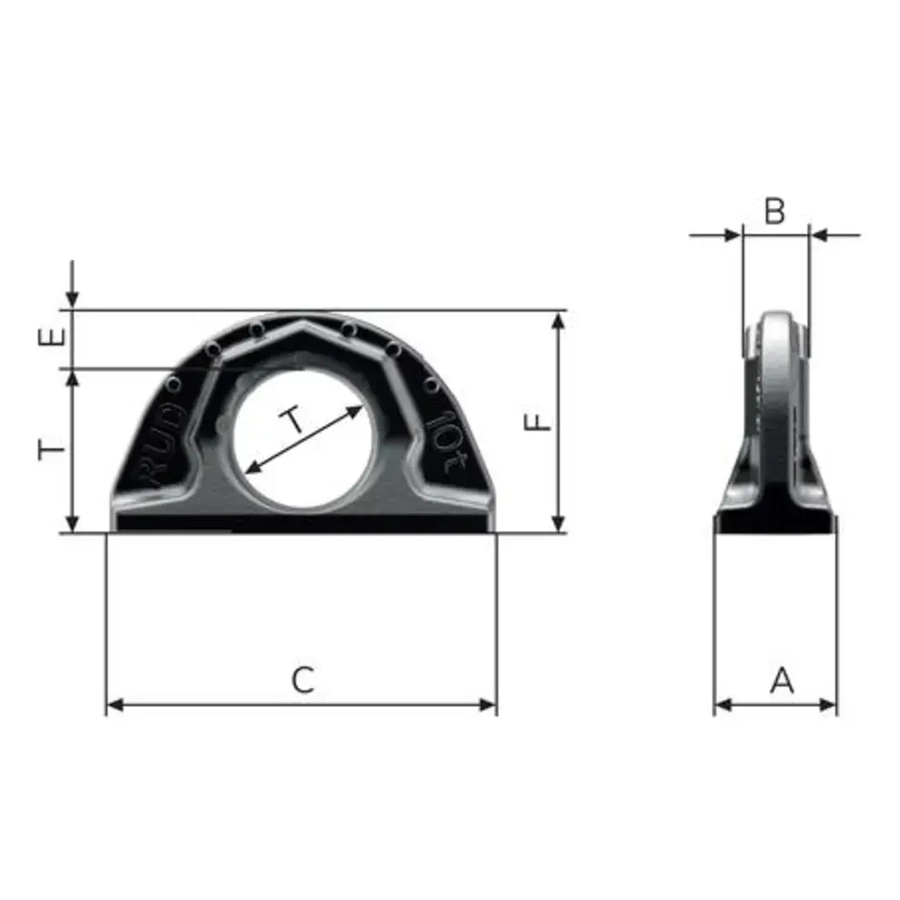

Model Number WLL (tons) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Pitch T (mm) In Stock Price
7907698 0.8 22 12 70 32 12 50 38 $
7900352 1.6 30 16 100 35 16 57 42 $
7900353 3.2 41 23 137 50 21 80 59 $
7900354 5 51 27 172 60 28 99 72 $
7900355 10 70 38 228 80 35 130 95 $
7902174 20 90 52 272 115 40 175 135 $
7902175 31.5 108 64 320 130 50 204 154 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
