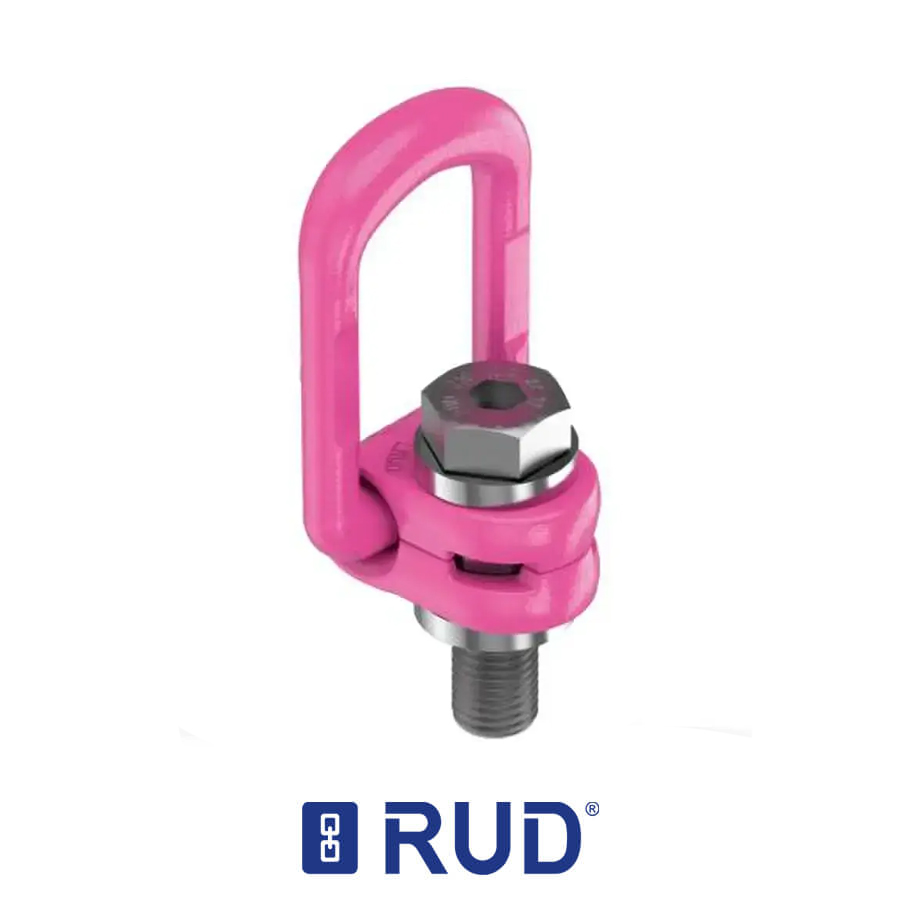

RUD VLBG Load ring, metric thread

RUD VLBG Load ring, metric thread

Product Features:

  • Large WLL range
  • Captive but exchangeable RUD-Bolt with special corrosion protection Corrud-DT
  • The clamping spring achieves noise reduction and keeps the suspension ring in the desired direction; thereby simple hinging of the lifting means is possible or a flat design in the folded state

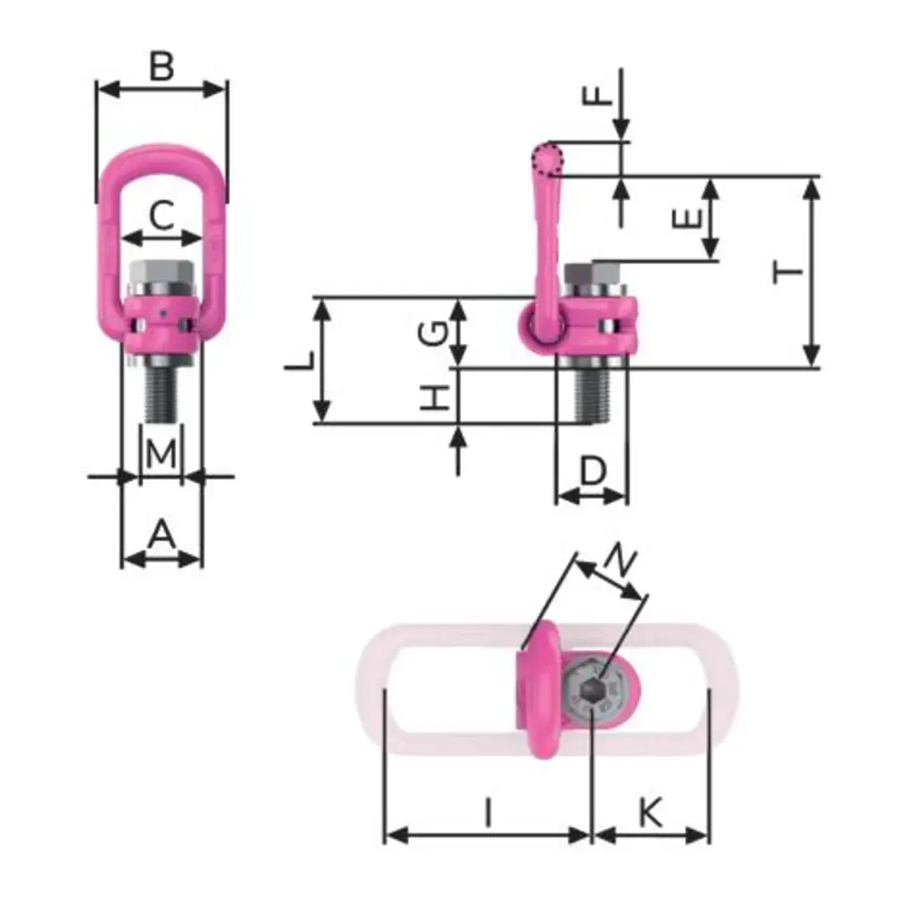

Model Number WLL (tons) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) K (mm) L (mm M N (mm) Pitch T (mm) In Stock Price
8600399 M14 H21 1.2 33 56 36 30 39 13.5 36 21 86 47 57 M14 38 85 $
8600384 M18 H27 2 50 82 54 45 55 16.5 43 27 113 64 70 M18 48 110 $
7983658 4 60 103 65 60 69 22.5 61 39 151 80 100 M27 67 147 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
