| Type | WLL (Persons) | Weight (kg/unit) | Dimensions (mm) | M | N (MM) | ||||||||
| T | B | C | D | E | G | I | K | L | |||||
| PSA-VRS-STARPOINT M12 | 1 | 0.2 | 42 | 13 | 10 | 30 | 30 | 34 | 19.8 | 56 | 18 | M12 | 8 |
| PSA-VRS-STARPOINT M16 | 1-2 | 0.33 | 49 | 15 | 15 | 35 | 35 | 40 | 23.5 | 65 | 24 | M16 | 10 |
| PSA-VRS-STARPOINT M20 | 1-2 | 0.56 | 58 | 18 | 17 | 40 | 42 | 54 | 29.3 | 75 | 30 | M20 | 12 |
| PSA-VRS-STARPOINT M12 Special Length | 1 | * | 42 | 13 | 10 | 30 | 30 | 34 | 19.8 | 56 | 19-150 | M12 | 8 |
| PSA-VRS-STARPOINT M16 Special Length | 1-2 | * | 49 | 15 | 15 | 35 | 35 | 40 | 13.5 | 65 | 25-120 | M16 | 10 |
*Depends on design
PSA-Fall arrest anchor points are no lifting points in a conventional sense. They are used as anchor points for personal fall arrest systems (PSA) acc. to EN 363:2008. After installation, harnesses can be attached into them. These anchor points can also be permanently installed, f.e. at a building to allow to attach fall arrest safety harnesses.
These products are tested by a notified institution of DGUV (Deutsche Gesetzliche Unfallversicherung) with the evidence of the in OSHA 1926.502:2001/01 paragraph (d)(15) and DIN EN 50308:2005 chapter 4.5 for lifting points required forces. They are corresponding to a “anchor point” according to European edict 2016/425 and the DIN 795:2012-10 resp. DIN CEN / TS 16415:2013-4 and they are marked with the number of load bearing persons (=1 or 2 persons).
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.

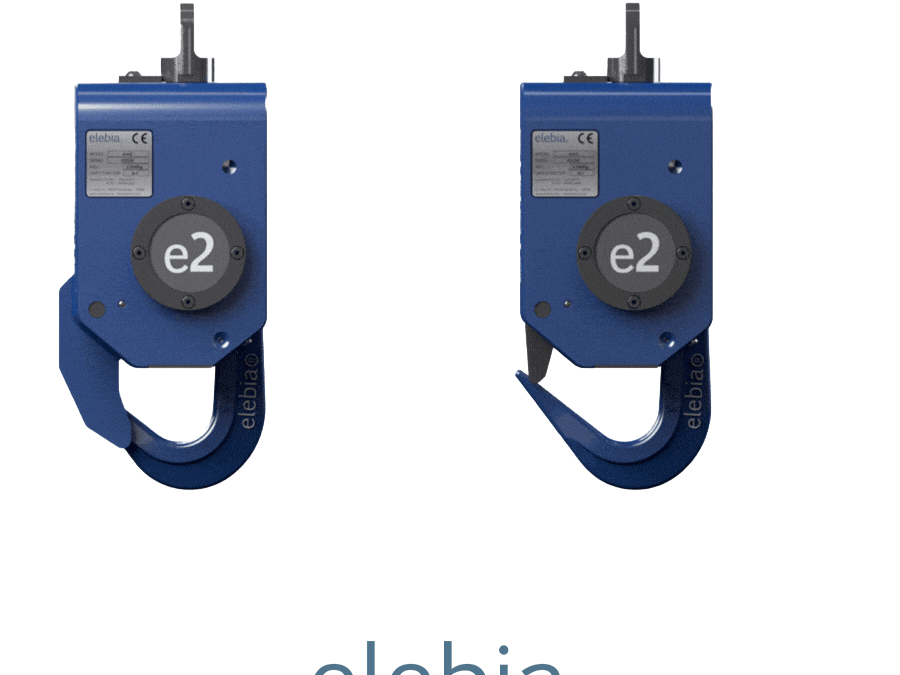

The evo2 is a crane hook designed for masterlinks, which, like the rest of our automatic crane hooks, engages and releases the load remotely, increasing safety, productivity and comfort for all lifting operations. The evo 2L shares the same features mentioned above,...
The evo range was designed to enhance safety and increase productivity. It is designed under a fail-safe principle. Most importantly, this hook CAN NOT drop a suspended load. This is a feature of all our designs, geometrically fail-safe, without any sensors or...
Robust all-steel construction Super-quick adjustment to most I-, S-, and W-beams Durable baked enamel paint protection Stainless steel ID tag Individual serial number and test certificate
Fastest adjusting trolley requiring no tools to install Anti-drop plate ensures safe load handling Lightweight robust construction Durable baked enamel provides protection Fits to most I-, S-, and W-beams RoHS-compliant zinc-plated finish Glow-in-the-dark decals...
