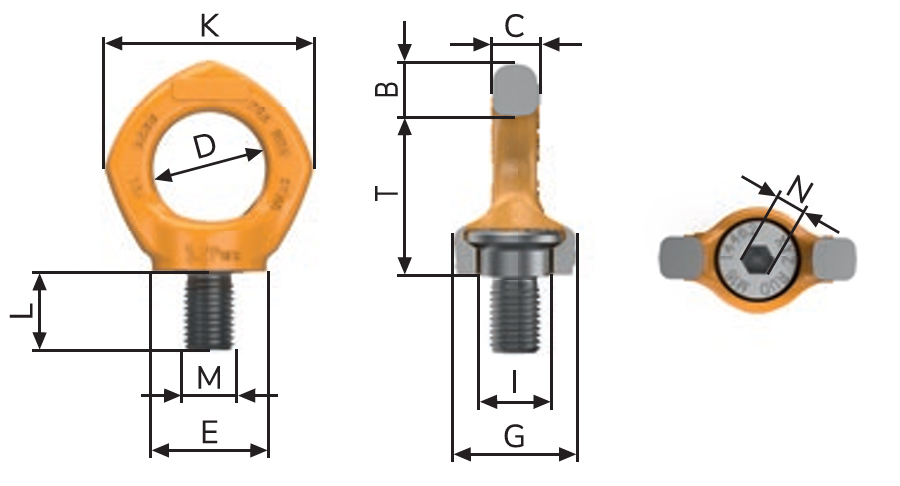

| Type | WLL (Persons) | Weight (kg/unit) | Dimensions (mm) | M | N (MM) | ||||||||
| T | B | C | D | E | G | I | K | L | |||||
| PSA-INOX-STAR M12 | 1 | 0.19 | 43 | 14 | 12 | 30 | 30 | 32 | 18 | 56 | 18 | M12 | 8 |
| PSA-INOX-STAR M16 | 1-2 | 0.31 | 50 | 15 | 15 | 35 | 36 | 40 | 22 | 65 | 24 | M16 | 10 |
| PSA-INOX-STAR M20 | 1-2 | 0.56 | 58 | 19 | 17 | 40 | 43 | 47 | 27.5 | 74 | 30 | M20 | 12 |
| PSA-INOX-STAR M12 L = 50 | 1 | 0.22 | 43 | 14 | 12 | 30 | 30 | 32 | 18 | 56 | 50 | M12 | 8 |
| PSA-INOX-STAR M16 L = 50 | 1-2 | 0.4 | 50 | 15 | 15 | 35 | 36 | 40 | 22 | 65 | 50 | M16 | 10 |
| PSA-INOX-STAR M16 L = 120 | 1-2 | 0.47 | 50 | 15 | 15 | 35 | 36 | 40 | 22 | 65 | 120 | M16 | 10 |
| PSA-INOX-STAR M20 L = 60 | 1-2 | 0.6 | 57 | 19 | 17 | 40 | 43 | 47 | 27.5 | 74 | 60 | M20 | 12 |

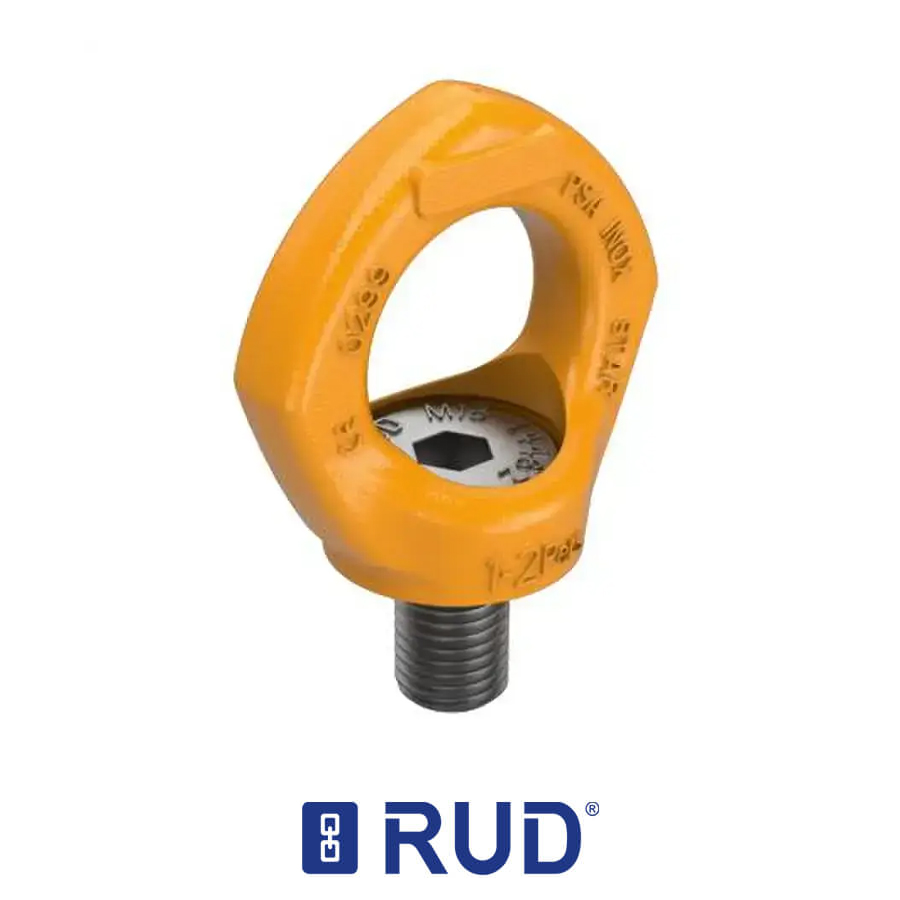

PSA-Fall arrest anchor points are no lifting points in a conventional sense. They are used as anchor points for personal fall arrest systems (PSA) acc. to EN 363:2008. After installation, harnesses can be attached into them. These anchor points can also be permanently installed, f.e. at a building to allow to attach fall arrest safety harnesses.
These products are tested by a notified institution of DGUV (Deutsche Gesetzliche Unfallversicherung) with the evidence of the in OSHA 1926.502:2001/01 paragraph (d)(15) and DIN EN 50308:2005 chapter 4.5 for lifting points required forces. They are corresponding to a “anchor point” according to European edict 2016/425 and the DIN 795:2012-10 resp. DIN CEN / TS 16415:2013-4 and they are marked with the number of load bearing persons (=1 or 2 persons).
