Renfroe Model TLA

Renfroe Model TLA

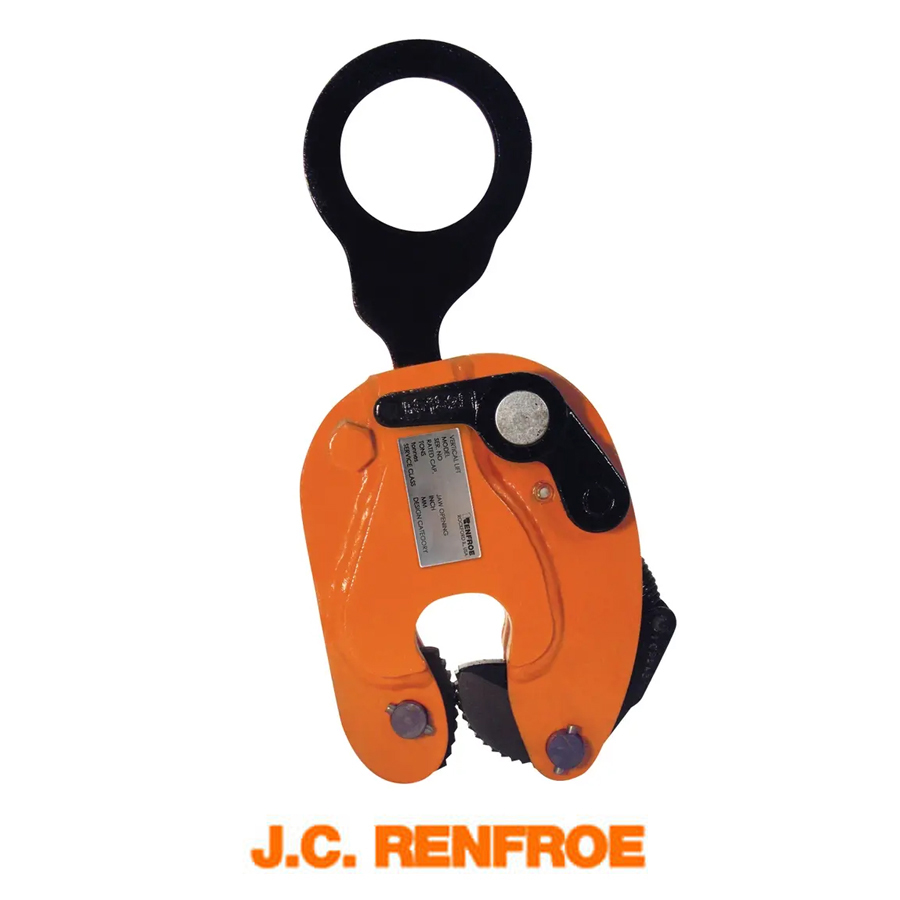

Model TLA Locking Type

The Model TLA is a vertical lifting clamp incorporating a “Lock Open” and a “Lock Closed” feature and an auxiliary push-button lock. The clamp is capable of turning a steel plate from horizontal to vertical to horizontal through a 180° arc. The “Lock Open,” “Lock Closed” feature facilitates attaching and removing the clamp from the plate.

Product Features

  • Single plate turning from horizontal to vertical to horizontal through a 180 degree arc
  • Incorporates an auxiliary push button lock
  • Lock Open – Lock Closed Feature
  • Allows easy attaching & removing of the clamp
  • Similar to the Model JA with a serrated cam jaw

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

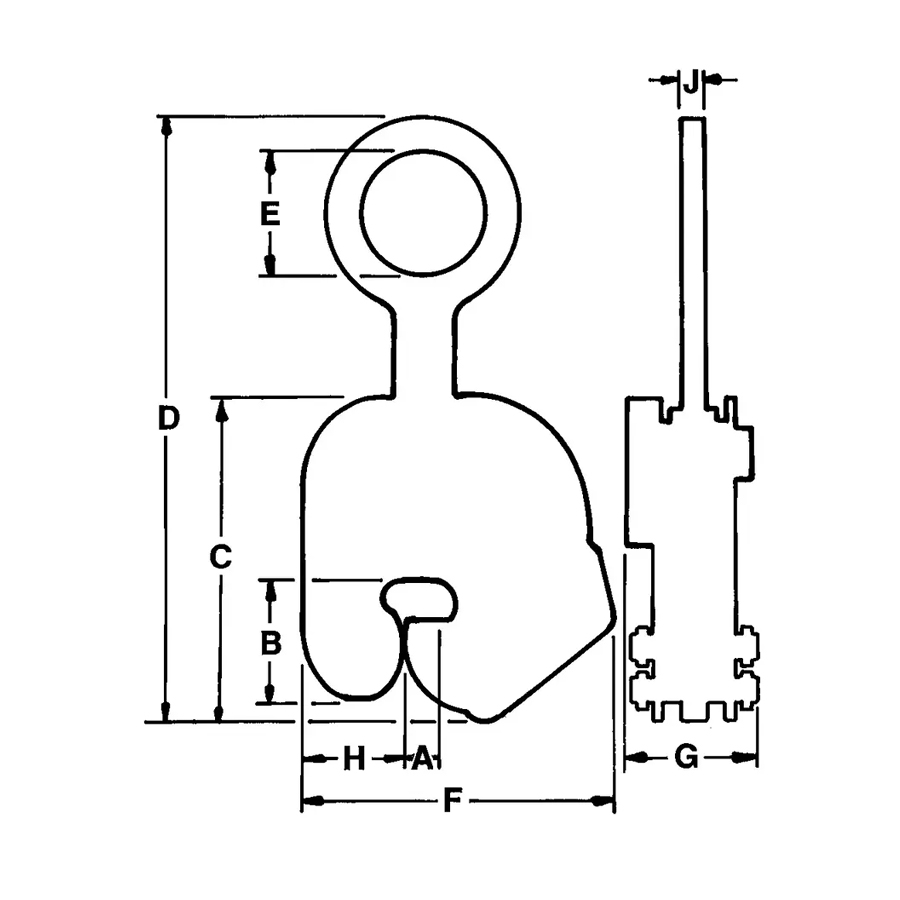

Model Number Capacity (tons) Shackle Hole Dia (in.) Weight (lbs.) Clamp Body Length (in.) Clamp Width (in.) Jaw Height (in.) Jaw Length (in.) Overall Clamp Height (in.) Overall Length (in.) Max Plate Thickness (in.) Shackle Thick (in.) In Stock Price
TLA-00.50-A 0.5 2.38 9 6.25 2.75 1.81 2.38 4.75 11.12 0.62 0.5 ❌ $
TLA-00.50-B 0.5 2.38 10 6.25 2.75 1.81 2.38 5.12 11.12 1 0.5 ❌ $
TLA-00.50-C 0.5 2.38 11 6.25 2.75 1.81 2.38 5.38 11.12 1.25 0.5 ❌ $
TLA-00.50-D 0.5 2.38 13 6.25 2.75 1.81 2.38 5.88 11.12 1.75 0.5 ❌ $
TLA-01.00-A 1 2.62 14 7.5 2.81 2 3 6 13.12 0.75 0.62 ✔ $
TLA-01.00-B 1 2.62 15 7.5 2.81 2 3 6.25 13.12 1 0.62 ❌ $
TLA-01.00-C 1 2.62 16 7.5 2.81 2 3 6.5 13.12 1.25 0.62 ❌ $
TLA-01.00-D 1 2.62 17 7.5 2.81 2 3 6.75 13.12 1.5 0.62 ❌ $
TLA-01.00-E 1 2.62 18 7.5 2.81 2 3 7.25 13.12 2 0.62 ❌ $
TLA-02.00-A 2 3.62 32 9.38 3.75 2.88 3.5 8.88 16.25 1 0.75 ❌ $
TLA-02.00-B 2 3.62 33 9.38 3.75 2.88 3.5 9.38 16.25 1.5 0.75 ❌ $
TLA-02.00-C 2 3.62 35 9.38 3.75 2.88 3.5 9.88 16.25 2 0.75 ❌ $
TLA-02.00-D 2 3.62 37 9.38 3.75 2.88 3.5 10.62 16.25 2.75 0.75 ❌ $
TLA-04.00-A 4 3.62 36 9.88 3.81 3 4 9 17.62 1.25 0.75 ❌ $
TLA-04.00-B 4 3.62 37 9.88 3.81 3 4 9.75 17.62 2 0.75 ❌ $
TLA-04.00-C 4 3.62 40 9.88 3.81 3 4 10.75 17.62 3 0.75 ❌ $
TLA-04.00-D 4 3.62 43 9.88 3.81 3 4 11.75 17.62 4 0.75 ❌ $
TLA-06.00-A 6 3.5 49 11.12 3.88 3.38 4.62 10.25 20.12 1.38 0.75 ✔ $
TLA-06.00-B 6 3.5 51 11.12 3.88 3.38 4.62 11 20.12 2.12 0.75 ❌ $
TLA-06.00-C 6 3.5 54 11.12 3.88 3.38 4.62 12 20.12 3.12 0.75 ❌ $
TLA-06.00-D 6 3.5 57 11.12 3.88 3.38 4.62 13 20.12 4.12 0.75 ❌ $
TLA-08.00-A 8 3.75 72 12.31 4.75 3.88 4.81 11.5 21.31 1.5 1 ❌ $
TLA-08.00-B 8 3.75 74 12.31 4.75 3.88 4.81 12.12 21.31 2.12 1 ❌ $
TLA-08.00-C 8 3.75 77 12.31 4.75 3.88 4.81 13.12 21.31 3.12 1 ❌ $
TLA-08.00-D 8 3.75 80 12.31 4.75 3.88 4.81 14.12 21.31 4.12 1 ❌ $
TLA-12.00-A 12 3.88 142 15.12 6.75 4.38 6.25 14.5 26.19 2.5 1.75 ❌ $
TLA-12.00-B 12 3.88 150 15.12 6.75 4.38 6.25 16 26.19 4 1.75 ❌ $
TLA-12.00-C 12 3.88 154 15.12 6.75 4.38 6.25 17 26.19 5 1.75 ❌ $
TLA-12.00-E 12 3.88 154 15.12 6.75 4.38 6.25 17 26.19 5 1.75 ❌ $
TLA-20.00-A 20 5 415 21.75 8.06 6.19 8.12 20.69 36.69 3 2.75 ❌ $
TLA-20.00-B 20 5 426 21.75 8.06 6.19 8.12 22.19 36.69 4.5 2.75 ❌ $
TLA-20.00-C 20 5 430 21.75 8.06 6.19 8.12 22.69 36.69 5 2.75 ❌ $
TLA-20.00-D 20 5 445 21.75 8.06 6.19 8.12 24.69 36.69 7 2.75 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
