Model LPA

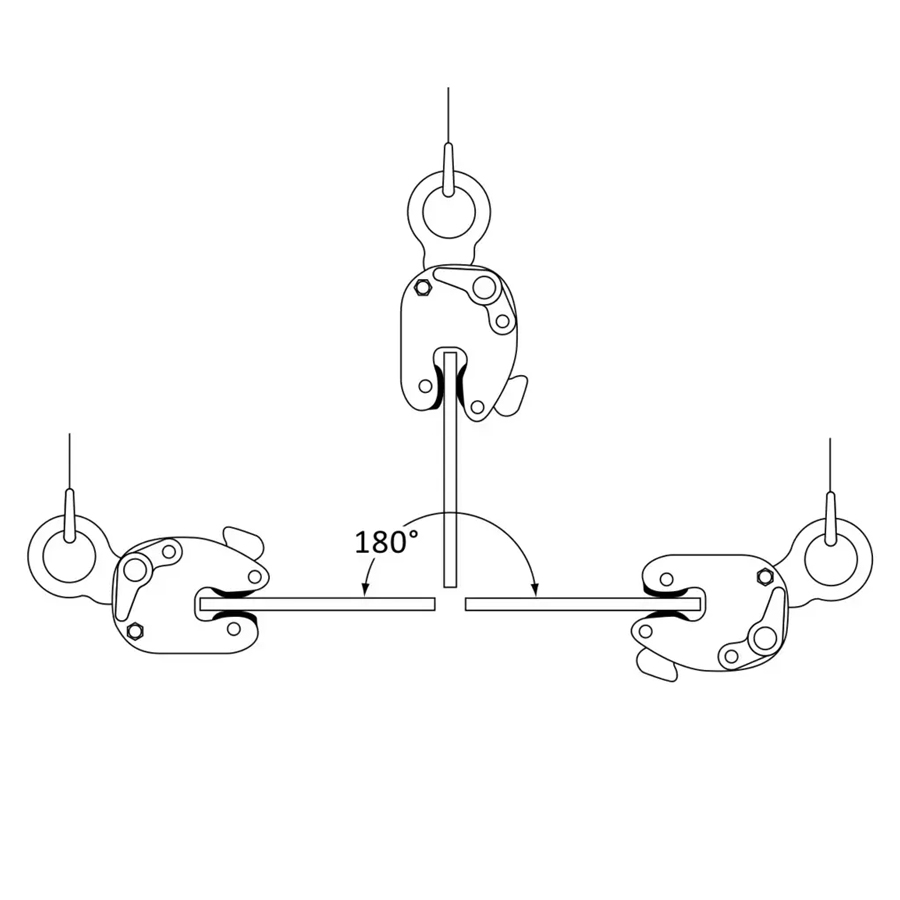

Model LPA is an ergonomic vertical lifting clamp capable of turning a single plate or member from horizontal to vertical to horizontal through a 180° arc. It incorporates an auxiliary push button lock. Permits side loading of lifting shackle to 90° by de-rating of clamp’s capacity. Refer to Figure 1 for de-rated capacities. The “Lock Open – Lock Closed” feature facilitates attaching and removing the clamp from the plate. The Model LPA incorporates a pivoting shackle that permits side loading of the lifting shackle at 100% of rated capacity from vertical to 30°, 75% of rated capacity between 30° and 45°, and 50% of rated capacity between 45° and 90°. See Figure 1.
Product Features
- Ergonomic Lifting Clamp
- Single plate turning from horizontal to vertical to horizontal through a 180 degree arc
- Incorporates auxiliary push button lock
- Permits side loading of lifting shackle to 90 degrees by de-rating clamps capacity
- Lock Open – Lock Closed Feature
- Allows easy attaching & removing of the clamp
