Renfroe Model LJ

Renfroe Model LJ

Model LJ Locking Type

Model LJ is a vertical lifting clamp capable of turning a plate from horizontal to vertical and back through the same 90° arc. It is small and easy to handle in capacities through three tons. The Model LJ incorporates a “Lock Closed” feature, which facilitates attaching the clamp to the plate.

Product Features

  • Single plate turning from horizontal to vertical & back through the same 90 degree arc
  • Incorporates the Renfroe Lock Closed Feature
  • Allows easy attaching & removing of the clamp
  • Similar to the Model FR with serrated cam jaw.

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

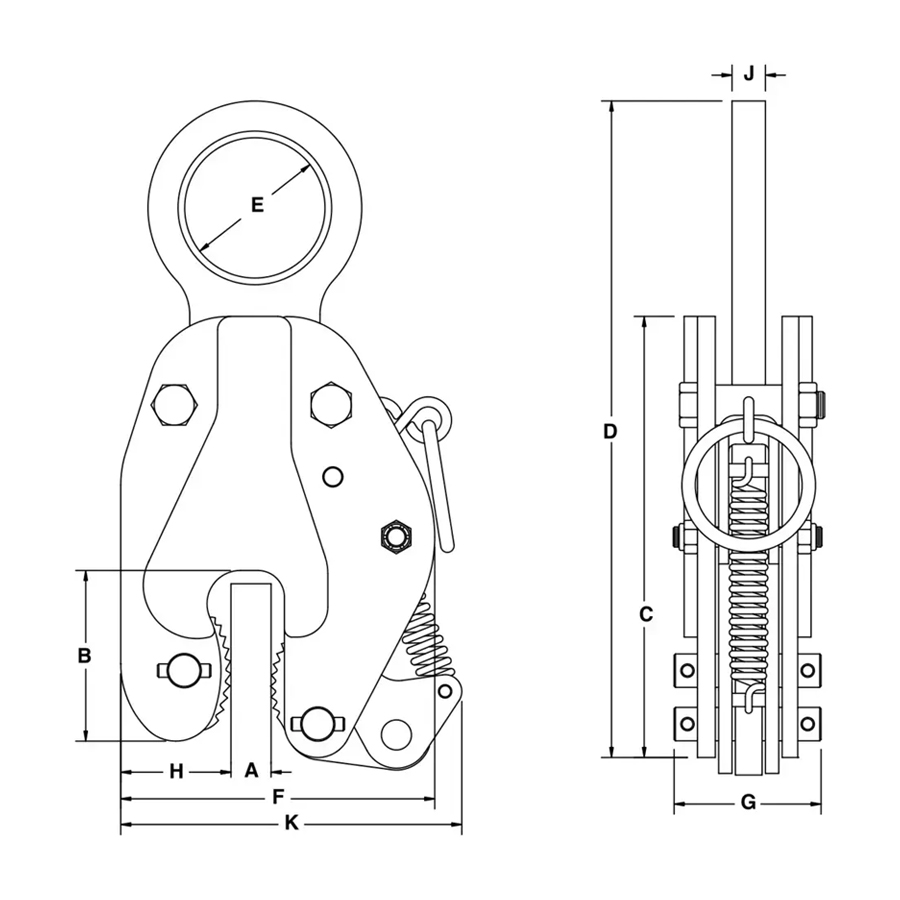

Model Number Capacity (tons) Weight (lbs.) Clamp Body Height (in.) Clamp Body Length (in.) Clamp Body Width (in.) Jaw Height (in.) Jaw Length (in.) Overall Clamp Height (in.) Overall Length (in.) Max Plate Thickness (in.) Shackle Open (in.) Shackle Thick (in.) In Stock Price
LJ-00.50-A 0.5 9 5 6.62 2.38 1.88 2.62 5 10.25 0.75 2.25 0.5 ✔ $
LJ-01.00-A 1 15 5.88 8.25 2.88 2.06 3.19 6.44 13.44 0.75 2.62 0.62 ❌ $
LJ-02.00-A 2 26 7.25 9 3.25 2.88 3.62 7.62 15.81 1 3.62 0.75 ✔ $
LJ-03.00-A 3 34 8.19 10.75 3.62 3 4.25 8.38 18 1.25 3.62 0.75 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
