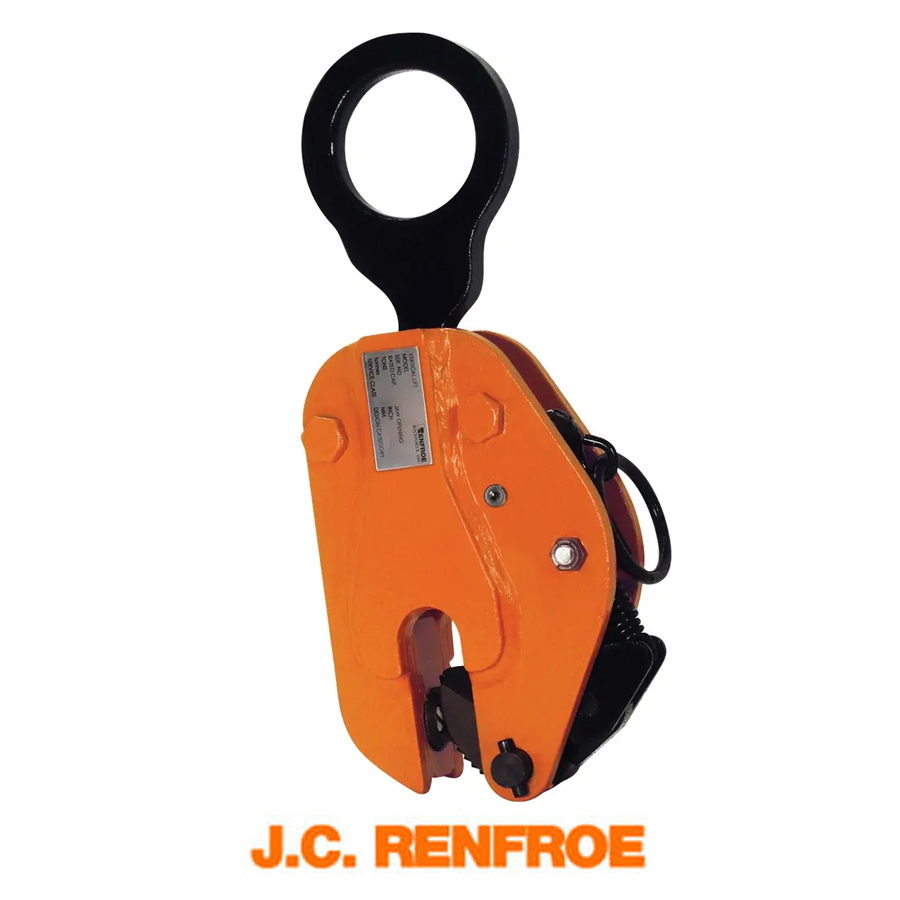

The Model FR is a vertical lifting tool for relatively light work. It is small and easy to handle in capacities through three tons. It incorporates a “Lock Closed” feature which facilitates attaching the clamp to the plate.
Product Features

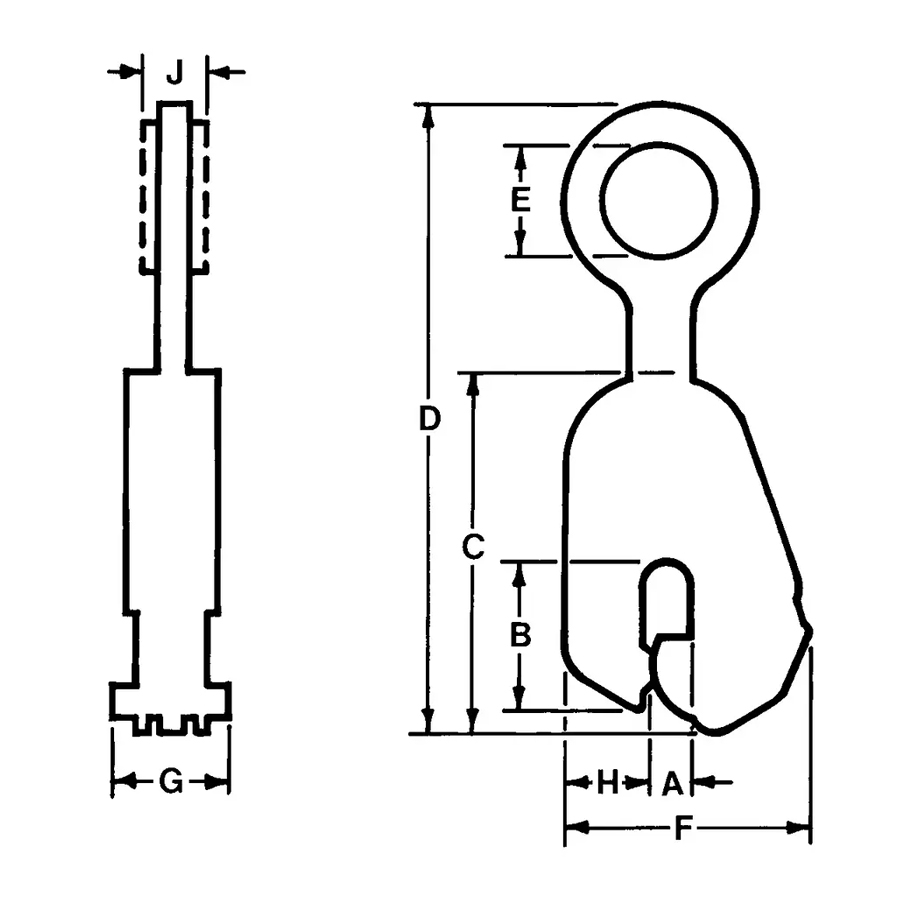

| Model Number | Capacity (tons) | Shackle Hole Dia (in.) | Weight (lbs.) | Clamp Height (in.) | Clamp Length (in.) | Clamp Width (in.) | Jaw Height (in.) | Jaw Length (in.) | Overall Length (in.) | Max Plate Thickness (in.) | Shackle Thick (in.) | In Stock | Price |
| FR-00.50-A | 0.5 | 2.38 | 8 | 4.62 | 7 | 2.5 | 1.5 | 2.81 | 11.25 | 0.75 | 0.5 | ✔ | $ |
| FR-00.50-B | 0.5 | 2.38 | 8 | 4.88 | 7 | 2.5 | 1.5 | 2.81 | 11.25 | 1 | 0.5 | ❌ | $ |
| FR-00.50-C | 0.5 | 2.38 | 9 | 5.12 | 7 | 2.5 | 1.5 | 2.81 | 11.25 | 1.25 | 0.5 | ❌ | $ |
| FR-00.50-D | 0.5 | 2.38 | 10 | 5.38 | 7 | 2.5 | 1.5 | 2.81 | 11.25 | 1.5 | 0.5 | ❌ | $ |
| FR-00.50-E | 0.5 | 2.38 | 11 | 5.38 | 7 | 2.5 | 1.5 | 2.81 | 11.25 | 1.75 | 0.5 | ❌ | $ |
| FR-01.00-A | 1 | 2.62 | 14 | 5.88 | 9 | 3.19 | 1.62 | 3.19 | 13.75 | 0.75 | 0.62 | ✔ | $ |
| FR-01.00-B | 1 | 2.62 | 15 | 6.12 | 9 | 3.19 | 1.62 | 3.19 | 13.75 | 1 | 0.62 | ❌ | $ |
| FR-01.00-C | 1 | 2.62 | 15 | 6.38 | 9 | 3.19 | 1.62 | 3.19 | 13.75 | 1.25 | 0.62 | ❌ | $ |
| FR-01.00-D | 1 | 2.62 | 16 | 7.12 | 9 | 3.19 | 1.62 | 3.19 | 13.75 | 1.5 | 0.62 | ❌ | $ |
| FR-01.00-E | 1 | 2.62 | 17 | 6.88 | 9 | 3.19 | 1.62 | 3.19 | 13.75 | 1.75 | 0.62 | ❌ | $ |
| FR-01.00-F | 1 | 2.62 | 18 | 7.13 | 9 | 3.19 | 1.62 | 3.19 | 13.75 | 2 | 0.62 | ❌ | $ |
| FR-02.00-A | 2 | 3.62 | 23 | 6.75 | 9 | 3.38 | 2.12 | 3.5 | 16 | 1 | 0.75 | ✔ | $ |
| FR-02.00-B | 2 | 3.62 | 23 | 7.25 | 9 | 3.38 | 2.12 | 3.5 | 16.38 | 1.5 | 0.75 | ❌ | $ |
| FR-02.00-C | 2 | 3.62 | 23 | 7.75 | 9 | 3.38 | 2.12 | 3.5 | 16.38 | 2 | 0.75 | ❌ | $ |
| FR-02.00-D | 2 | 3.62 | 24 | 8.25 | 9 | 3.38 | 2.12 | 3.5 | 16.38 | 2.5 | 0.75 | ❌ | $ |
| FR-03.00-A | 3 | 3.62 | 30 | 7.62 | 10.75 | 3.56 | 2.44 | 4.19 | 18.38 | 1.25 | 0.75 | ✔ | $ |
| FR-03.00-B | 3 | 3.62 | 31 | 7.88 | 10.75 | 3.56 | 2.44 | 4.19 | 18.38 | 1.5 | 0.75 | ❌ | $ |
| FR-03.00-C | 3 | 3.62 | 32 | 8.38 | 10.75 | 3.56 | 2.44 | 4.19 | 18.38 | 2 | 0.75 | ❌ | $ |
| FR-03.00-D | 3 | 3.62 | 33 | 8.88 | 10.75 | 3.56 | 2.44 | 4.19 | 18.38 | 2.5 | 0.75 | ❌ | $ |
