Renfroe Model BC

Renfroe Model BC

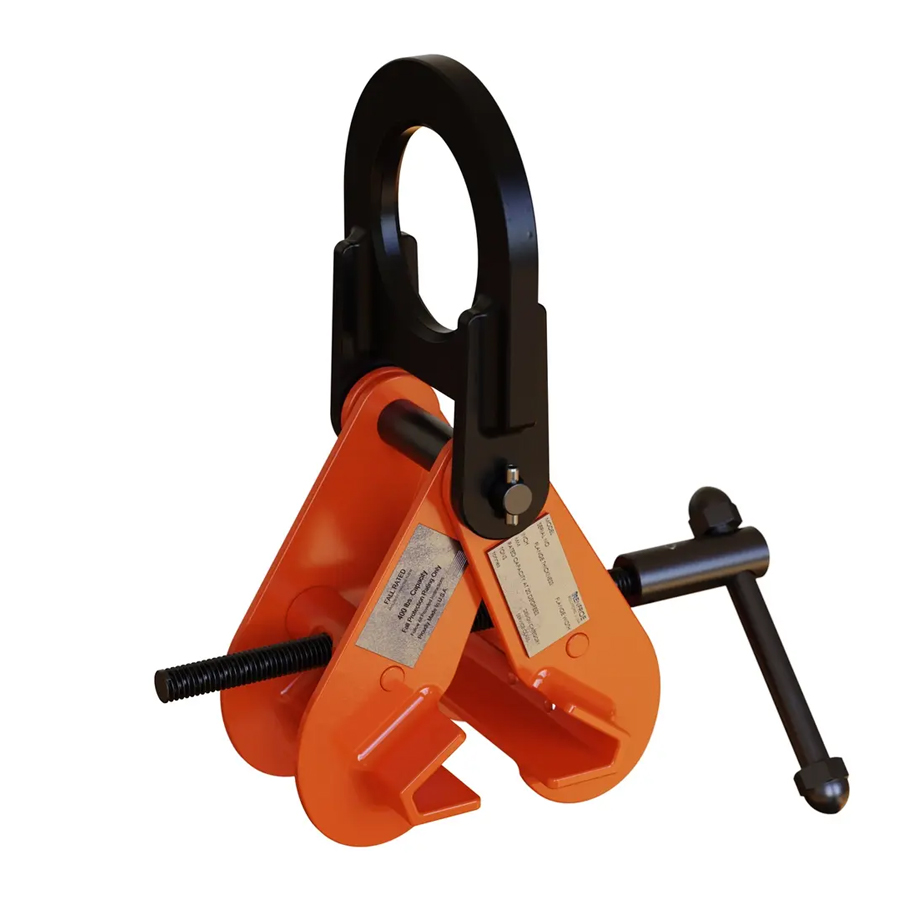

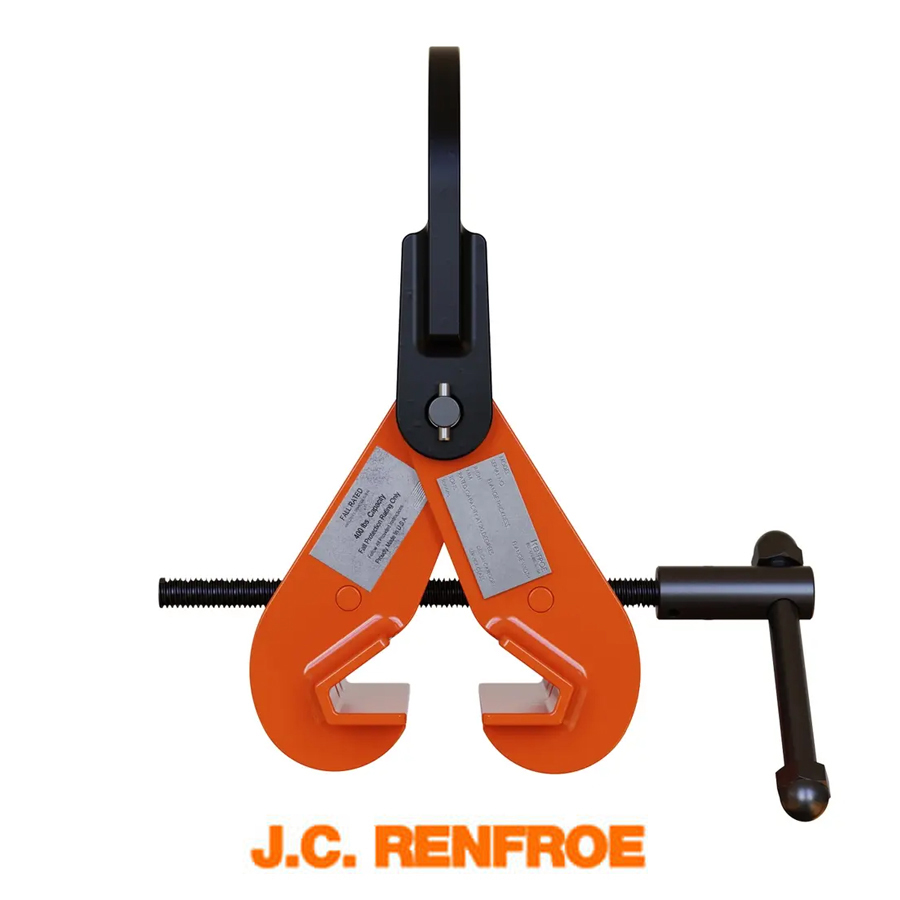

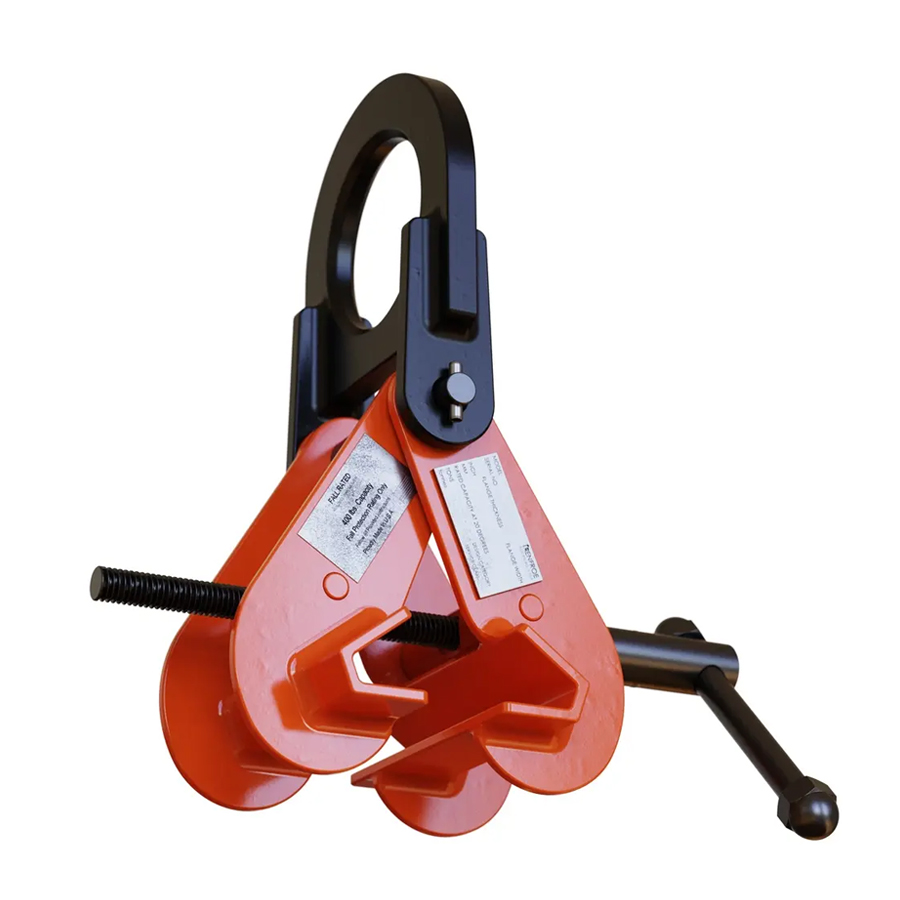

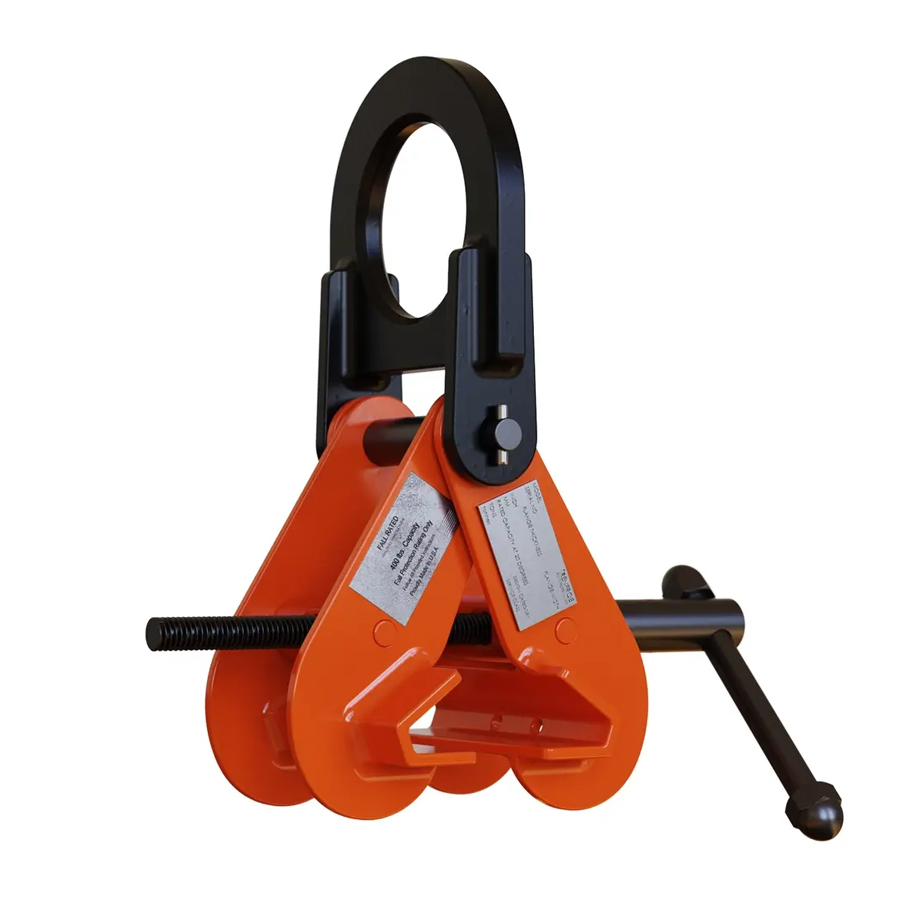

Model BC Locking Type

The Model BC is a multi-purpose beam clamp suitable for both lifting beams or providing suspension of hoists from beams or girders, thereby eliminating the need for nuts, bolts and shackles. It is intended for use on the American standard or wide-flange beams.

Product Features

  • Multi-purpose clamp suitable for lifting & suspension
  • Suspend hoists from beams or girders
  • Eliminates the need for nuts, bolts, or shackles
  • Designed to be used on American standard or wide flange beams

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

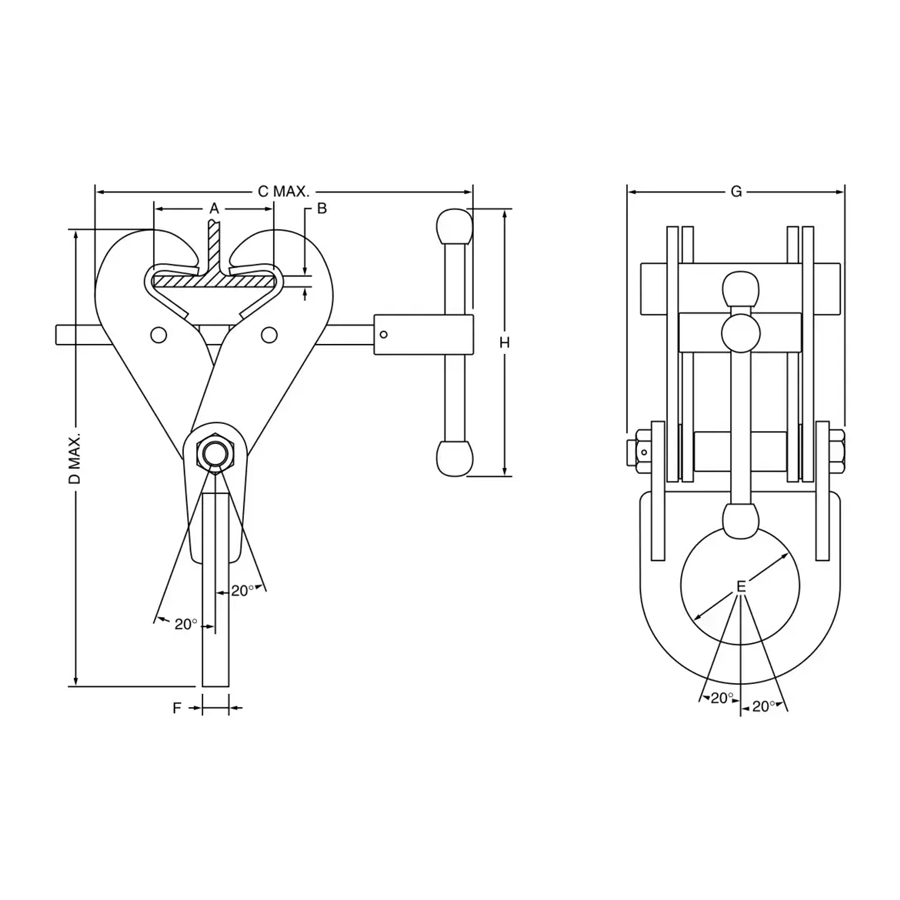

Model Number Shackle Hole Dia (in.) Max Flange Thickness (in.) Min Flange Thick (in.) Weight (lbs.) Clamp Height (in.) Clamp Length (in.) Clamp Width (in.) Working Load Limit 0-20° (in.) Max Flange W (in.) Min Flange W (in.) OA Handle Length (in.) Shackle Thick (in.) In Stock Price
BC-01.50-A 3 0.5 0.25 9.5 11.75 11.88 5 1.5 7.25 3 5.75 0.5 ❌ $
BC-03.00-A 3 0.5 0.25 13.5 12 11.88 5.19 3 7.5 3 6.75 0.62 ❌ $
BC-05.00-A 3.25 0.75 0.5 22.5 14.88 17 6.31 5 10 6 6.75 0.75 ❌ $
BC-10.00-A 4 1.25 0.5 53 19.12 21.25 7.12 10 12 6 9 1.5 ❌ $
BC-15.00-A 4.5 2 0.875 120 26.5 32 8.38 15 18 8 12 1.75 ❌ $
BC-25.00-A 5 3 2 450 40.5 61 15 25 40 18 15 2 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
